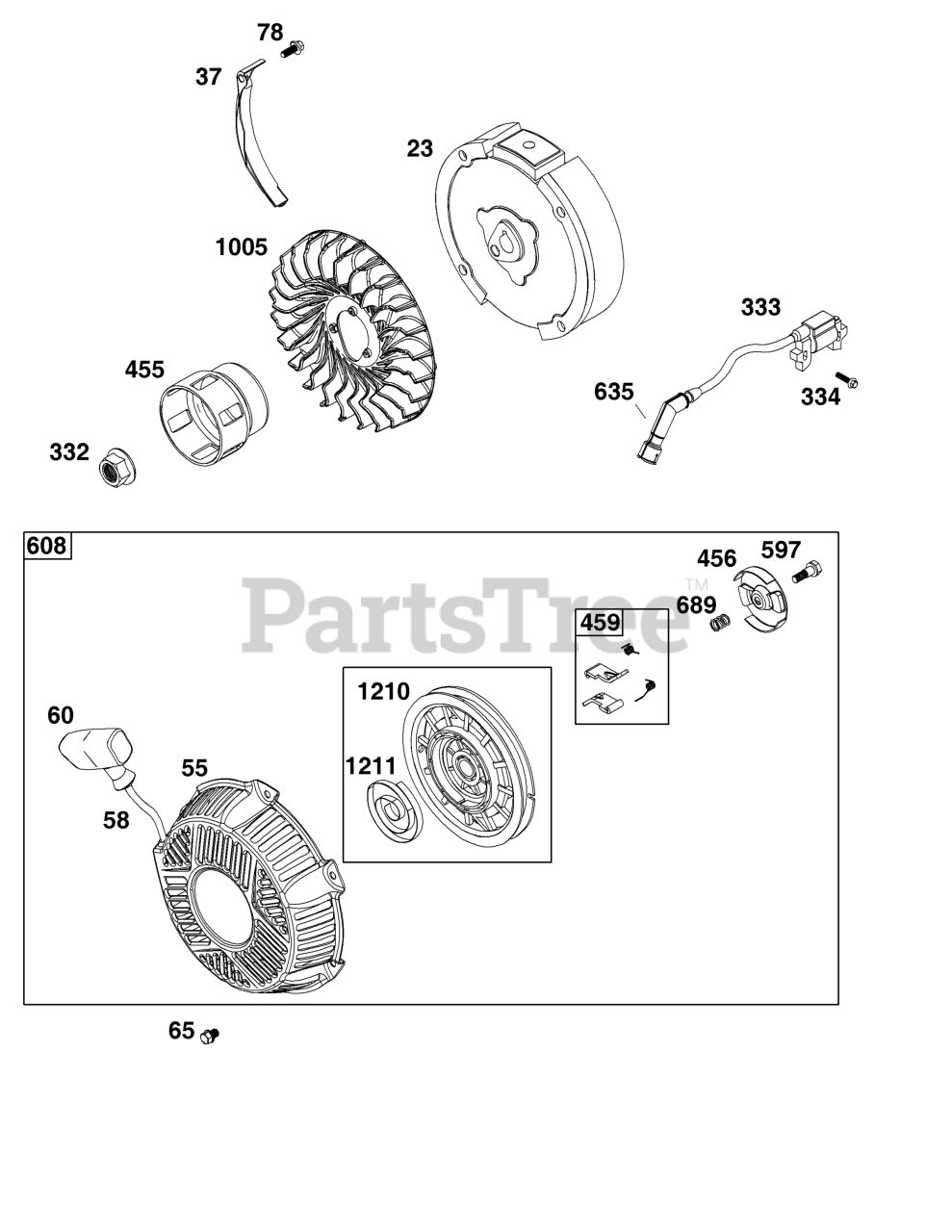

83132-0256-H5 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 84002801

FLYWHEEL

$179.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 591023

GUARD, Flywheel

$8.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 799667

HOUSING, Rewind Starter

$45.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 693389

ROPE, Starter

Note: (Cut To Required Length)

$9.49

$

In Stock, only 2 left!

0

60

Briggs & Stratton 691915

GRIP, Starter Rope

$6.49

$

In Stock, Qty 11

0

65

Briggs & Stratton 797654

SCREW

Note: (Rewind Starter)

$4.99

$

In Stock, only 4 left!

0

78

Briggs & Stratton 798975

SCREW

Note: (Flywheel Guard)

$3.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 797285

NUT

Note: (Flywheel)

$4.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 593455

ARMATURE, Magneto

$74.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 797655

SCREW

Note: (Magneto Armature)

$4.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 797277

CUP, Flywheel

$11.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 799666

PLATE, Pawl Friction

$12.99

$

In Stock, only 1 left!

0

459

Briggs & Stratton 799668

PAWL, Ratchet

$10.99

$

Usually ships in 2-12 days

0

597

Briggs & Stratton 799665

SCREW

Note: (Pawl Friction Plate)

$6.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 797276

STARTER, Rewind

$71.99

$

In Stock, only 2 left!

0

635

Briggs & Stratton 797685

BOOT, Spark Plug

$29.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 799669

SPRING, Friction

$6.49

$

In Stock, only 3 left!

0

1005

Briggs & Stratton 797321

FAN, Flywheel

$16.99

$

Usually ships in 2-12 days

0

1210

Briggs & Stratton 799678

PULLEY/SPRING ASSEMBLY

Note: (Pulley)

$38.99

$

In Stock, only 4 left!

0

1211

Briggs & Stratton 799678

PULLEY/SPRING ASSEMBLY

Note: (Spring)

$38.99

$

In Stock, only 4 left!

0
