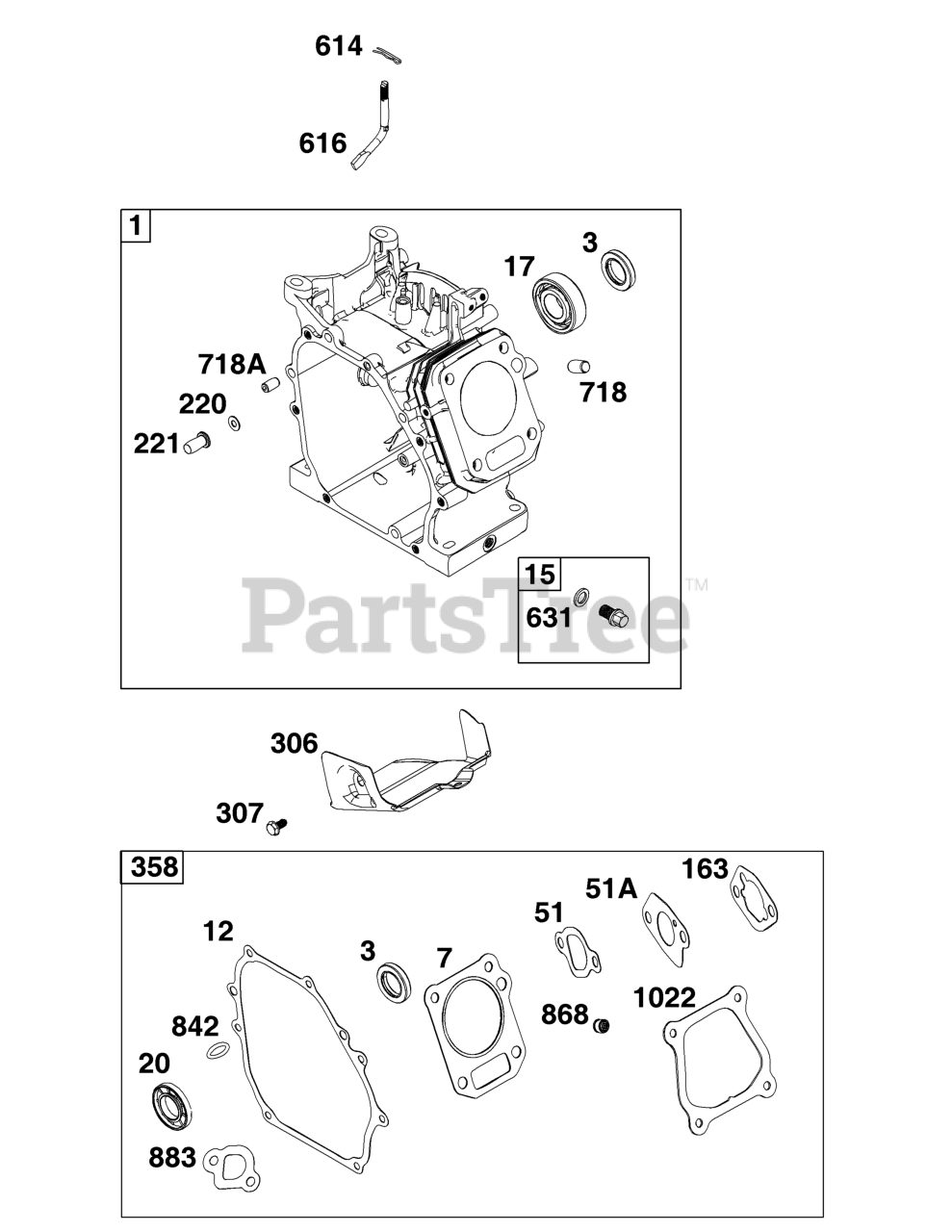

83132-0007-H5 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 798630

CYLINDER ASSEMBLY

$161.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 797329

SEAL, Oil

Note: (Magneto Side)

$14.99

$

Usually ships in 2-12 days

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

15

Briggs & Stratton 797215

PLUG, Oil Drain

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 797328

BEARING, Ball

Note: (Cylinder)

$31.99

$

Usually ships in 2-12 days

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

220

Briggs & Stratton 797223

WASHER

Note: (Governor Gear)

$4.99

$

Usually ships in 2-12 days

0

221

Briggs & Stratton 797224

CUP, Governor

$10.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 797322

SHIELD, Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 798618

SCREW

Note: (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 84002862

GASKET SET, Engine

Note: (Service Kits may include extra parts not specific to this engine.)

$35.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 797229

PIN, Cotter

$3.49

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 797228

CRANK, Governor

$12.99

$

Usually ships in 2-12 days

0

631

Briggs & Stratton 797216

WASHER

Note: (Oil Drain Plug)

$3.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 797214

PIN, Locating

$4.49

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 797326

PIN, Locating

$5.49

$

Usually ships in 2-12 days

0

842

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available
