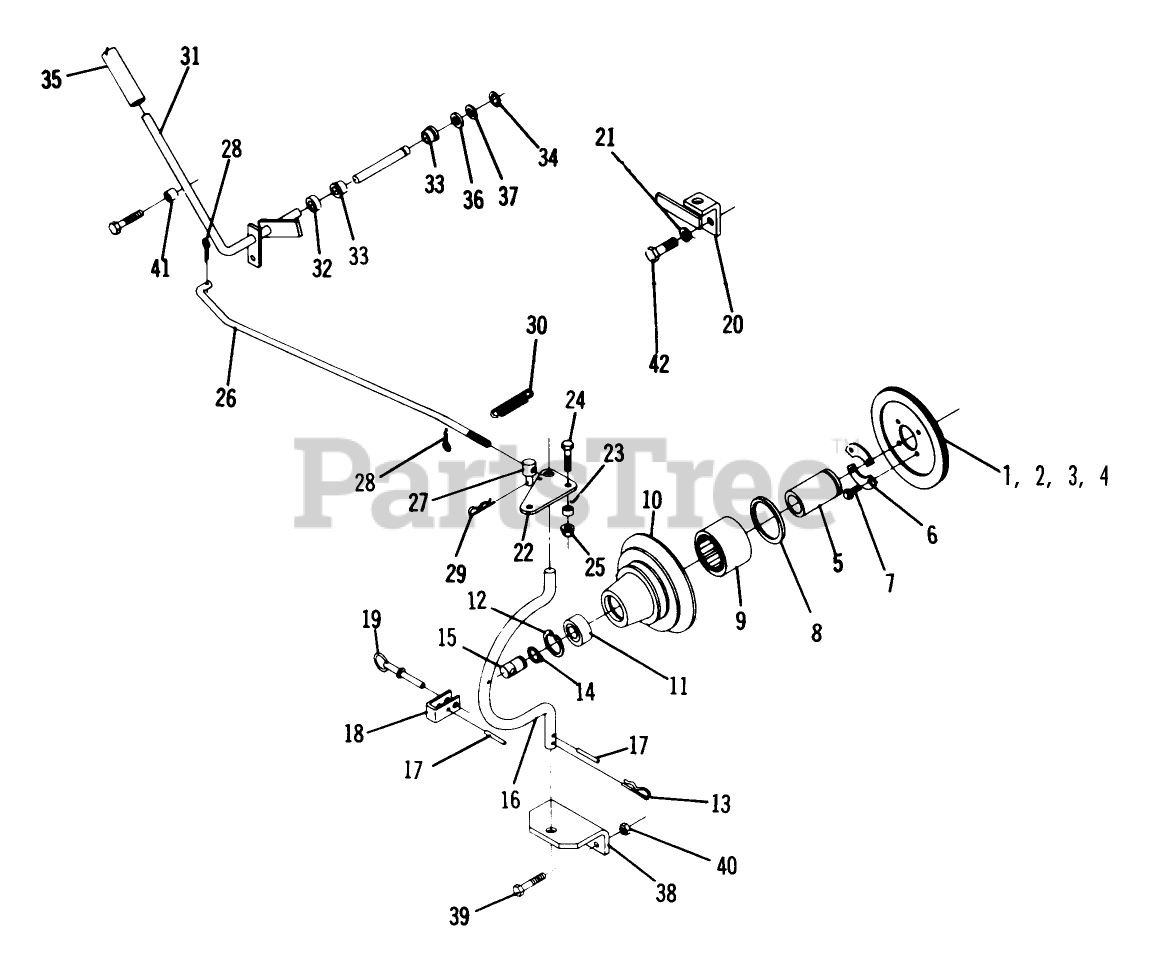

83120 - Toro Manual PTO (1973) PARTS LIST-PTO CLUTCH ATTACHMENT NO. 8-3120 FOR 1973-74 TRACTORS WITH 1 1/8" CRANKSHAFT Parts Diagram

Manual PTO

PARTS LIST-PTO CLUTCH ATTACHMENT NO. 8-3120 FOR 1973-74 TRACTORS WITH 1 1/8" CRANKSHAFT Parts Diagram

  • Title

1

Toro 103817

Clutch Plate & Facing
(Superseded to 94-6650)

$182.99

$

In Stock, only 1 left!

0

2

Toro 103477

Clutch Plate
(Superseded to 94-6650)

$182.99

$

In Stock, only 1 left!

0

3

Toro 103140

Facing
(Superseded to 94-6650)

$182.99

$

In Stock, only 1 left!

0

4

Toro 6657

RIVET-BRASS

$1.49

$

In Stock, Qty 5

0

5

Toro 6658

RACE-BEARING

$

$

Not available

6

Toro 6659

RETAINER

$19.99

$

In Stock, only 2 left!

0

7

Toro 960152-4

Bolt 1/4-20 x 5/8 Whizlock

$

$

Currently unavailable

8

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 2 left!

0

9

Toro 6662

Seal
(Superseded to 106769)

$60.99

$

In Stock, only 3 left!

0

10

Toro 103478

Housing-Clutch
(Superseded to 103478-03)

$

$

Not available

11

Toro 5196

Bearing
(Superseded to 109842)

$31.99

$

In Stock, only 3 left!

0

12

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 7

0

13

Toro 933506-4

Hairpen

$

$

Currently unavailable

14

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 20+

0

15

Toro 102872

SHAFT-PTO

$31.99

$

In Stock, only 3 left!

0

16

Toro 102938

ROD HOUSING (NS)

$

$

Not available

17

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, Qty 11

0

18

Toro 102941

Clevis
(Superseded to 113107)

$27.99

$

In Stock, only 1 left!

0

19

Toro 102956

Pin
(Superseded to 111314)

$27.99

$

In Stock, only 2 left!

0

20

Toro 103078

Bracket-Engine

$

$

Not available

21

Toro 920084-4

Lockwasher 3/8

$

$

Currently unavailable

22

Toro 102943

PLATE R
(Superseded to 102943-01)

$

$

Not available

23

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

24

Toro 903034-4

Bolt-Hex 3/8-16 x 1

$

$

Currently unavailable

25

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

26

Toro 102937

Clutch Rod

$

$

Not available

27

Toro 101161

TRUNNION

$

$

Not available

28

Toro 932016-4

Cotter Pin

$

$

Currently unavailable

29

Toro 933505-4

Hairpin

$

$

Currently unavailable

30

Toro 1230

Spring

$

$

Not available

31

Toro 103881

Plug, Drain

$

$

Not available

32

Toro 102964

SPACER

$

$

Not available

33

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

34

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

35

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

36

Toro 920011-4

Washer

$

$

Currently unavailable

37

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

38

Toro 102870

Axle
(Superseded to 102870-01)

$34.99

$

Usually ships in 3-6 days

0

39

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

40

Toro 915113-6

Nut

$

$

Currently unavailable

41

Toro 9690

Spacer

$

$

Not available

42

Toro 908046-4

Bolt, 7/16 14 x 1

$

$

Currently unavailable

42

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable
