83112 - Toro PTO Kit for Tractor (1972) PARTS LIST-POWER TAKE-OFF FACTORY ORDER NUMBER 8-3112 Parts Diagram

PTO Kit for Tractor

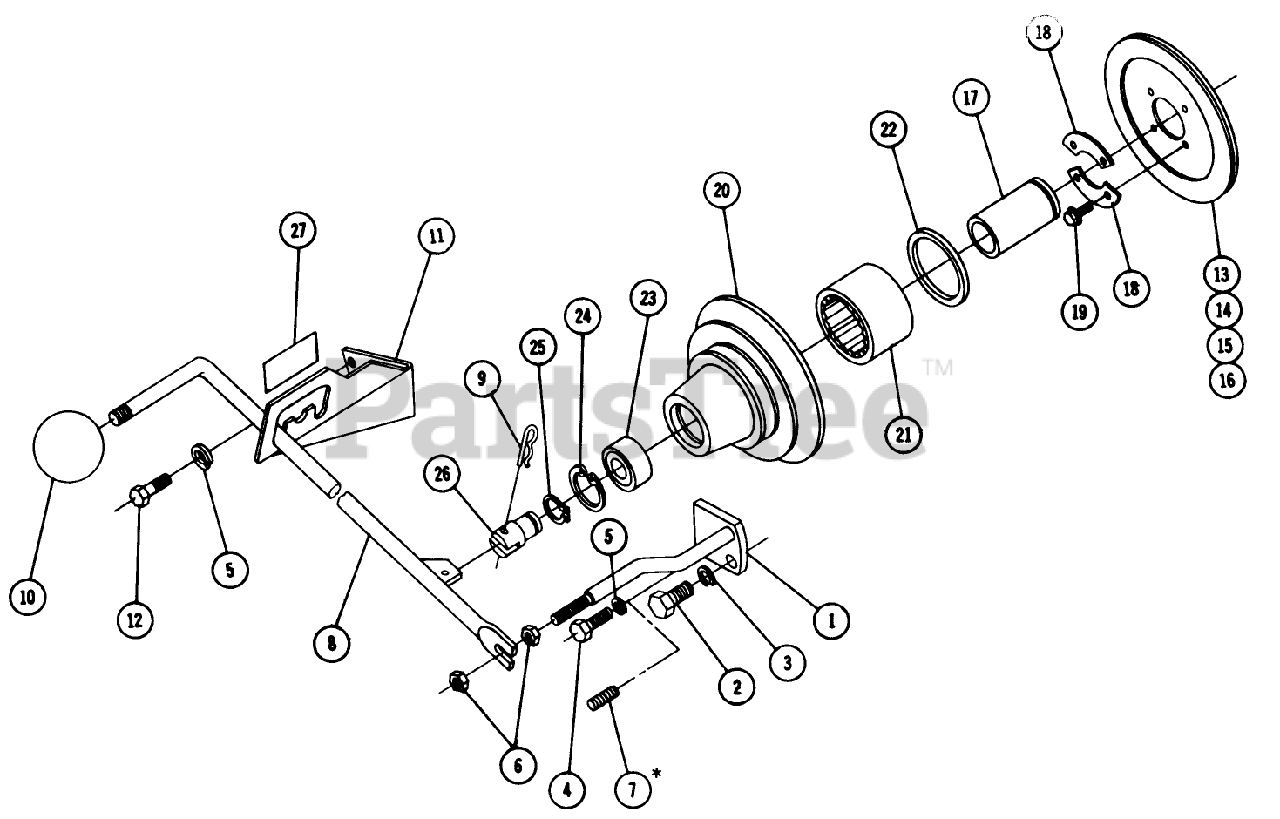

PARTS LIST-POWER TAKE-OFF FACTORY ORDER NUMBER 8-3112 Parts Diagram

  • Title

1

Toro 7661

PLATE & ROD ASSEM R
(Superseded to 7661-01)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$221.99

$

Usually ships in 3-6 days

0

2

Toro 908046

H H C S
(Superseded to 324-4)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$3.99

$

Usually ships in 3-6 days

0

3

Toro 920084

LOCKWASHER

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 908017

Bolt
(Superseded to 322-3)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$0.99

$

In Stock, Qty 13

0

5

Toro 920082

Lockwasher
(Superseded to 325-34)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$3.99

$

In Stock, only 2 left!

0

6

Toro 915113

Nut
(Superseded to 32153-2)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$0.99

$

In Stock, Qty 14

0

7

Toro 909880

Set Screw 3/8-16 x 3/4 Nylok

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$

$

Not available

8

Toro 4355

ROD ASSY

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$

$

Not available

9

Toro 933506

Hairpin
(Superseded to 9335064)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$2.49

$

In Stock, Qty 11

0

10

Toro 2709

Knob
(Superseded to 102891)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$69.99

$

Usually ships in 3-6 days

0

11

Toro 4383

Bracket

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$

$

Not available

12

Toro 908016

Bolt
(Superseded to 322-2)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$2.49

$

In Stock, Qty 13

0

13

Toro 6655

L/A CLUTCHPLATE&FACI

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$

$

Not available

14

Toro 6656

Clutch Plate
(Superseded to 6655)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$

$

Not available

15

Toro 4365

CLUTCH FACING

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$90.99

$

In Stock, only 2 left!

0

16

Toro 6657

RIVET-BRASS

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$1.49

$

In Stock, Qty 5

0

17

Toro 6658

RACE-BEARING

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$

$

Not available

18

Toro 6659

RETAINER

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$19.99

$

In Stock, only 2 left!

0

19

Toro 960151

Screw
(Superseded to 3234-13)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$1.49

$

In Stock, only 4 left!

0

20

Toro 9209

Clutch Housing

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$

$

Not available

21

Toro 6662

Seal
(Superseded to 106769)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$60.99

$

In Stock, only 1 left!

0

22

Toro 6663

SEAL-OIL

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$12.99

$

In Stock, only 1 left!

0

23

Toro 5196

Bearing
(Superseded to 109842)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$31.99

$

In Stock, only 1 left!

0

24

Toro 936032

Ring-Snap
(Superseded to 32120-62)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$4.99

$

In Stock, Qty 8

0

25

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$2.49

$

In Stock, only 2 left!

0

26

Toro 5197

SHAFT

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$

$

Not available

27

Toro 5194

DECAL

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$

$

Not available

Toro 926694

SCREW

Note: When ordering parts always list Part No. and Description. Parts available only through Authorized Dealers. (Specifications subject to change without notice.)

$

$

Not available

Toro 926694

SCREW

Note: NOT SHOWN

$

$

Not available
