83111 - Toro PTO Kit for Tractor (1969) POWER TAKE OFF MODEL 8-3111 Parts Diagram

PTO Kit for Tractor

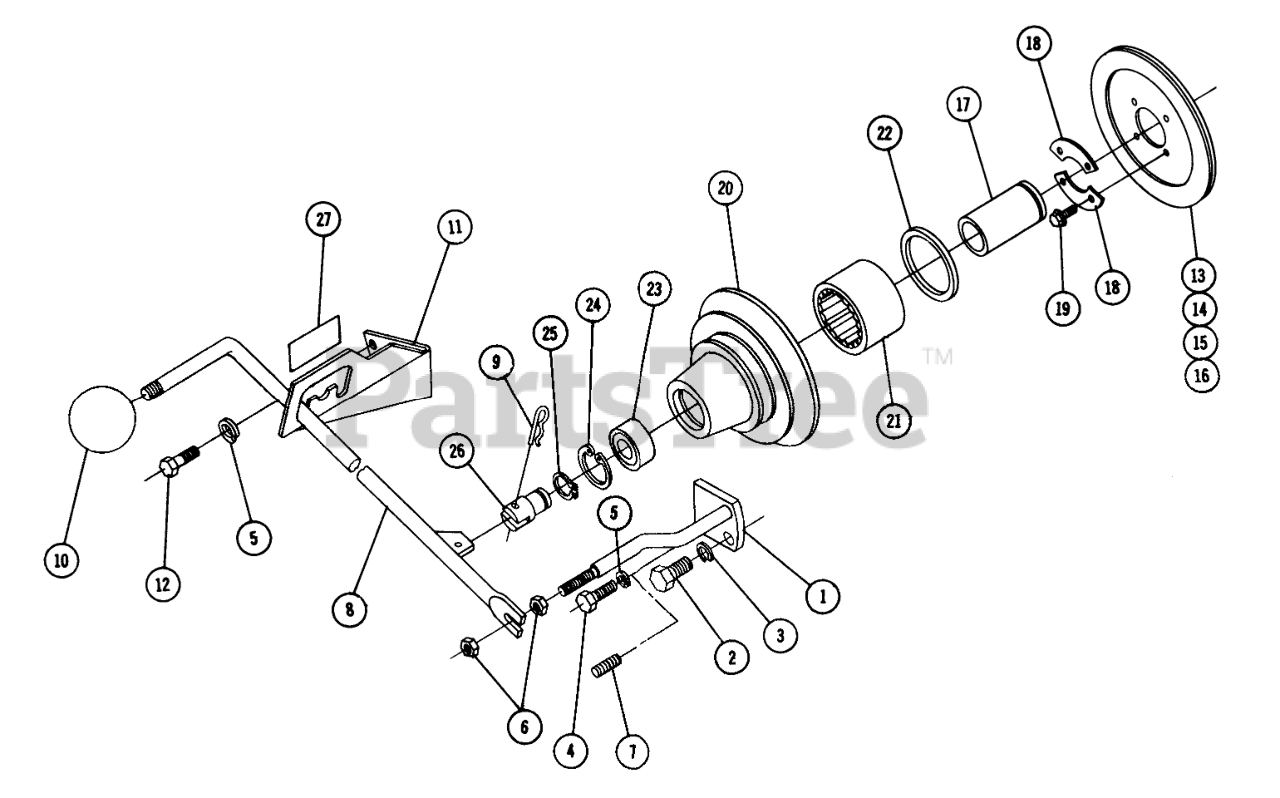

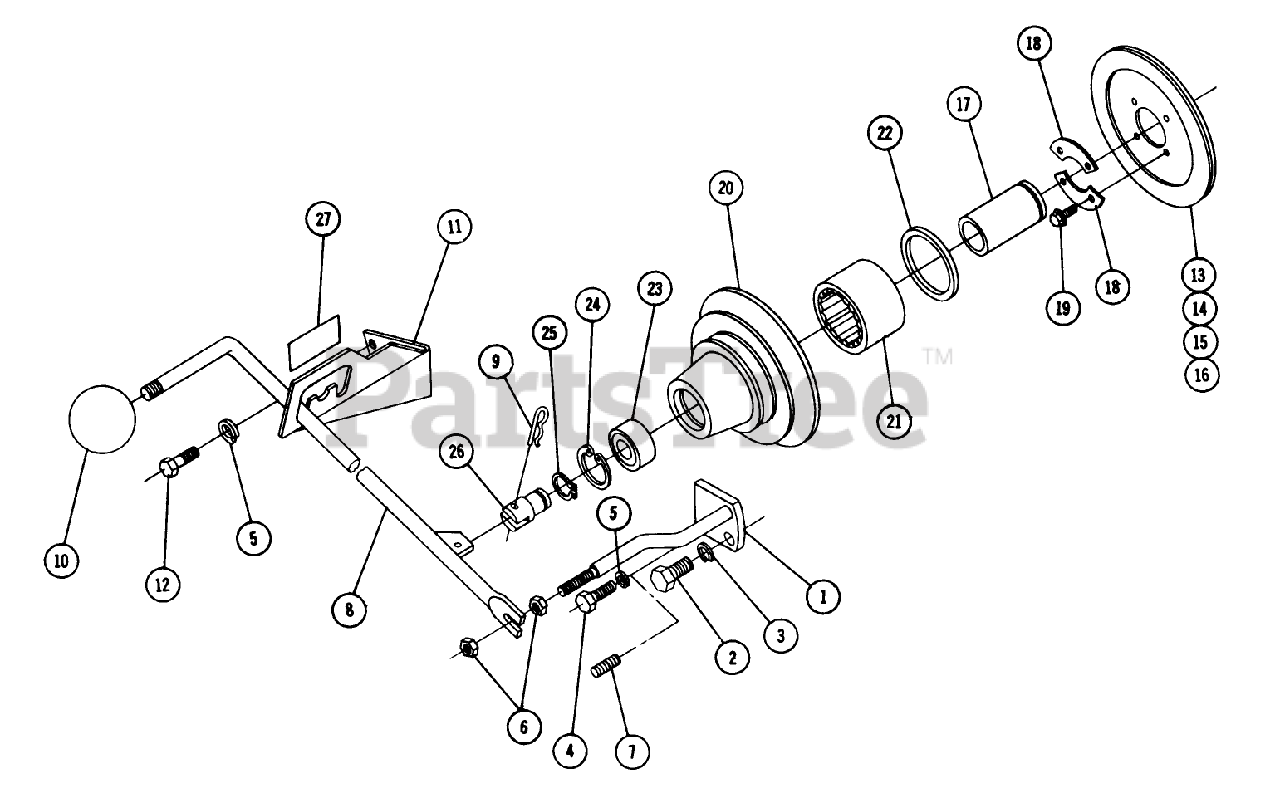

POWER TAKE OFF MODEL 8-3111 Parts Diagram

  • Title

1

Toro 7661

PLATE & ROD ASSEM R
(Superseded to 7661-01)

$221.99

$

Usually ships in 3-6 days

0

2

Toro 980045-4

Bolt-Hex 7/16 14 x 3/4

$

$

Currently unavailable

3

Toro 920084-4

Lockwasher 3/8

$

$

Currently unavailable

4

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

5

Toro 920082-4

Lockwasher

$

$

Currently unavailable

6

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

7

Toro 90865-6

Set Screw 5/16-18 x 3/4 Nylok

$

$

Currently unavailable

8

Toro 4355

ROD ASSY

$

$

Not available

9

Toro 933506-4

Hairpen

$

$

Currently unavailable

10

Toro 2709

Knob
(Superseded to 102891)

$69.99

$

Usually ships in 3-6 days

0

11

Toro 4383

Bracket

$

$

Not available

12

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

13

Toro 6655

L/A CLUTCHPLATE&FACI

$

$

Not available

14

Toro 6656

Clutch Plate
(Superseded to 6655)

$

$

Not available

15

Toro 4365

CLUTCH FACING

$90.99

$

In Stock, only 2 left!

0

16

Toro 6657

RIVET-BRASS

$1.49

$

In Stock, Qty 5

0

17

Toro 6658

RACE-BEARING

$

$

Not available

18

Toro 6659

RETAINER

$19.99

$

In Stock, only 2 left!

0

19

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

20

Toro 6660

Housing-Clutch

$

$

Not available

21

Toro 6662

Seal
(Superseded to 106769)

$60.99

$

In Stock, only 3 left!

0

22

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 2 left!

0

23

Toro 5196

Bearing
(Superseded to 109842)

$31.99

$

In Stock, only 3 left!

0

24

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 7

0

25

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 20+

0

26

Toro 5197

SHAFT

$

$

Not available

27

Toro 5194

DECAL

$

$

Not available
