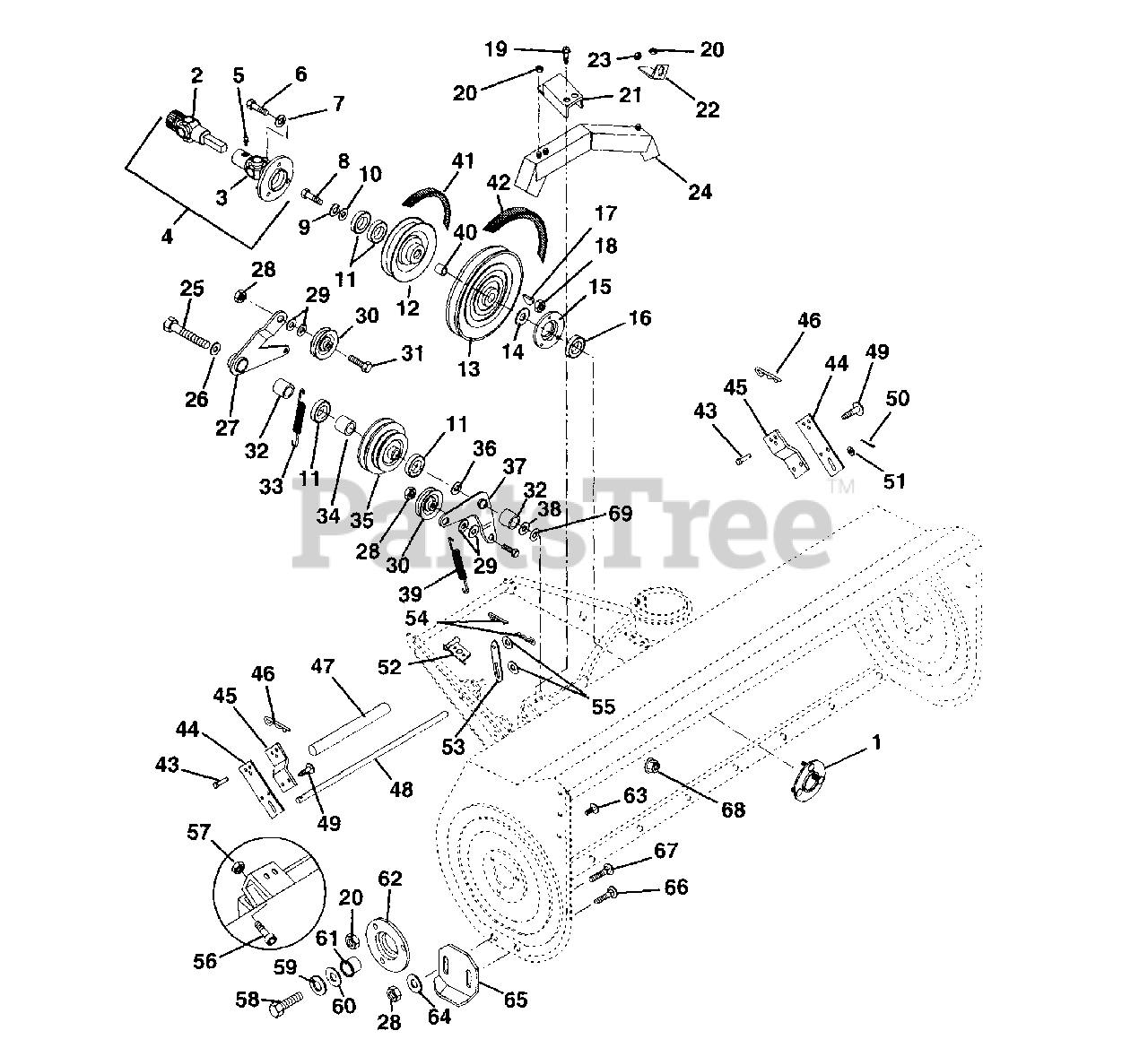

831045 - Ariens 48" Two Stage Sno-Thro Attachment (SN: 000101 & Above) Drive & Idlers Parts Diagram

48" Two Stage Sno-Thro Attachment

Drive & Idlers Parts Diagram

  • Title

1

Ariens 03086200

BEARING FLANGE

$22.99

$

Usually ships in 4-12 days

0

2

Ariens 03094500

UNIVERSAL SPLINE HALF W/ LOK
(Superseded to 03099900)

$536.99

$

Usually ships in 4-12 days

0

3

Ariens 03186400

UNIVERSAL PLATE HALF
(Superseded to 21537500)

$342.99

$

Usually ships in 4-12 days

0

4

Ariens 03091900

SHAFT, U-JOINT SNO HEAD
(Superseded to 03099900)

$536.99

$

Usually ships in 4-12 days

0

5

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

6

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

12

Ariens 03186200

SHEAVE

$140.99

$

Usually ships in 4-12 days

0

13

Ariens 07310200

PLY-V 10.00 X .88 W/KEY SALEM

$79.99

$

Usually ships in 4-12 days

0

14

Ariens 06436900

WSHR-FL-STL .880X1.250X.062YWZ

$2.49

$

In Stock, Qty 11

0

15

Ariens 03086100

BEARING FLANGE

$17.99

$

In Stock, only 1 left!

0

16

Ariens 05418200

BRG-BALL1.0X2.0X.56

$30.99

$

In Stock, Qty 11

0

17

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 10

0

18

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03085843

COVER

$6.99

$

Usually ships in 4-12 days

0

22

Ariens 03189200

CLIP

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 03187343

BELT GUARD

$

$

Not available

25

Ariens 05964300

@BLT-HEX .75-10X5.50 GR5 YWZC

$7.99

$

Usually ships in 4-12 days

0

26

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

27

Ariens 03186843

IDLER ARM

$9.49

$

Usually ships in 4-12 days

0

28

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06413100

WSHR-FL-STL .406X.875X.135

$

$

Not available

30

Ariens 07305400

IDLER-FLAT 3.00 X .38 CLK.&CAP

$28.99

$

Usually ships in 4-12 days

0

31

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 05510400

BSHG-SLV .750X1.125X1.062

$

$

Not available

33

Ariens 08325100

SG-TENS .109X1.00X6.0

$45.99

$

Usually ships in 4-12 days

0

34

Ariens 03186700

SPACER .781X1.000X.547

$20.99

$

Usually ships in 4-12 days

0

35

Ariens 03186651

SHEAVE

$131.99

$

Usually ships in 4-12 days

0

36

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 03186543

IDLER ARM

$11.99

$

Usually ships in 4-12 days

0

38

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$6.99

$

In Stock, only 3 left!

0

39

Ariens 08325100

SG-TENS .109X1.00X6.0

$45.99

$

Usually ships in 4-12 days

0

40

Ariens 03186100

SPACER .906X1.125X.453

$

$

Not available

41

Ariens 07209500

V-BELT, HA-RAW EDGE

$39.99

$

Usually ships in 4-12 days

0

42

Ariens 07209600

V-BELT, 4L-RAW EDGE

$33.99

$

Usually ships in 4-12 days

0

43

Ariens 06805500

PIN-CLEV .50X1.25 RH ST PL

$

$

Not available

44

Ariens 03191043

LIFT LINK

$38.99

$

In Stock, only 1 left!

0

45

Ariens 03191143

SUPPORT

$31.99

$

In Stock, only 1 left!

0

46

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 03189600

TUBE .725 X .875 X 14.00

$

$

Not available

48

Ariens 03187500

SHAFT

$

$

Not available

49

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 06712600

@PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 06442900

@WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0

52

Ariens 03082943

LIMITING POST

$

$

Not available

53

Ariens 03187743

LIMITING ARM

$19.99

$

Usually ships in 4-12 days

0

54

Ariens 06712900

HAIRPIN, #7 CLIP .094X2.31 YWZ
(Superseded to 06700215)

$5.99

$

In Stock, Qty 11

0

55

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

56

Ariens 05915600

SCR-SKH 10-24X.38

$1.99

$

Usually ships in 4-12 days

0

57

Ariens 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, Qty 8

0

58

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

59

Ariens 06306600

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$2.99

$

In Stock, only 1 left!

0

60

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

61

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 20+

0

62

Ariens 02437451

BEARING SUPPORT
(Superseded to 05063300)

$29.99

$

In Stock, only 2 left!

0

63

Ariens 07028600

BLT-SERNK SL .25-20X.50 YWZC

$3.99

$

In Stock, Qty 20+

0

64

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

65

Ariens 02483043

RUNNER, SKID SHOE-1/2" FLANGE

$39.99

$

Usually ships in 4-12 days

0

66

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

67

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

68

Ariens 06535400

@NUT-LK-CTR .75-10 YWZC

$5.99

$

Usually ships in 4-12 days

0

69

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0
