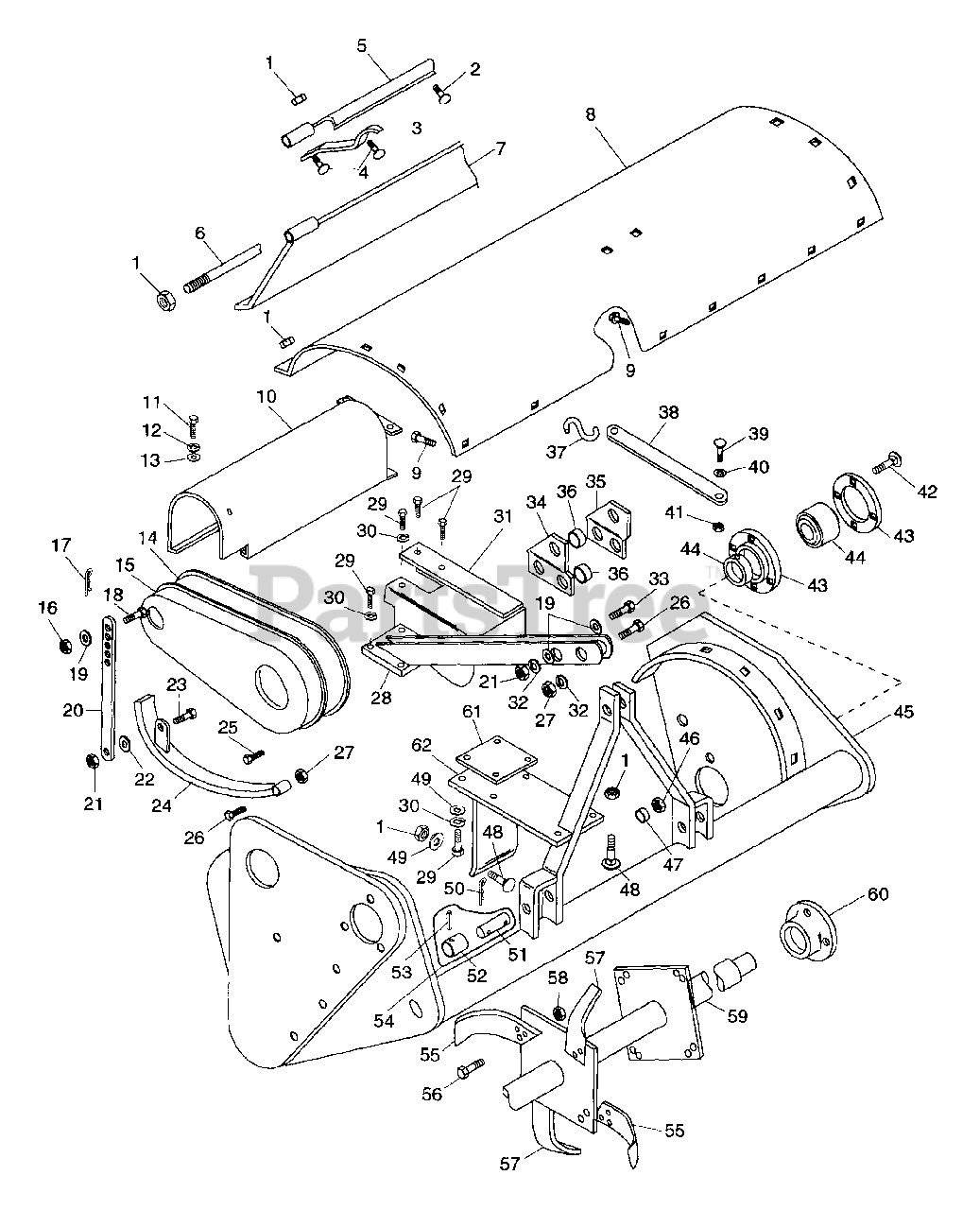

831039 - Ariens 42" Rotary Tiller Attachment (SN: 000690 & Above) Frame Parts Diagram

42" Rotary Tiller Attachment

Frame Parts Diagram

  • Title
1

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

2

Ariens 06207800

BLT-RDHDSQNK .375-16X.75 GR5PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

3

$

$

Not available

4

Ariens 06208100

BLT-RDHDSQNK .38-16X1.25 GR5PL
(Superseded to 06224100)

$2.49

$

In Stock, only 3 left!

0

5

Ariens 03332400

HINGE BRACKET

$

$

Not available

6

Ariens 03332600

ROD-HINGE

$

$

Not available

7

Ariens 03332500

LEVEL BLADE

$

$

Not available

8

Ariens 53301700

SHROUD W/DECALS

$

$

Not available

9

Ariens 07407200

SCR-TAP .312-18X.75 HWHPLDFGT

$

$

Not available

10

Ariens 03318800

TUNNEL SHIELD

$

$

Not available

11

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

12

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

14

$

$

Not available

15

Ariens 03318300

OUTER SHIELD

$

$

Not available

16

Ariens 06500700

NUT-HEX .625-11
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

17

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 2 left!

0

18

Ariens 03321500

HEX BOLT-.62-11 X 1.50 SPECIAL

$

$

Not available

19

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 03321400

ADJUST STRAP

$

$

Not available

21

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

22

Ariens 07511000

RUBBER WASHER

$

$

Not available

23

Ariens 05901000

BLT-HEX .50-13X1.50 PL GR2
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

24

$

$

Not available

25

Ariens 07407100

SCR-TAP .312-18X.50 HWH PL 1A

$

$

Not available

26

Ariens 05921400

BLT-HEX .62-11X2.50 PL GR5
(Superseded to 05969300)

$4.99

$

In Stock, only 2 left!

0

27

Ariens 06500700

NUT-HEX .625-11
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

28

Ariens 03315500

UPPER LINK

$

$

Not available

29

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

31

Ariens 03318900

PTO SHIELD

$

$

Not available

32

Ariens 06301000

WSHR-LK .563X.141 MED PL
(Superseded to 06307300)

$1.49

$

In Stock, Qty 16

0

33

Ariens 05905800

BLT-HEX .50-13X3.25 GR5
(Superseded to 05960000)

$3.99

$

Usually ships in 4-12 days

0

34

Ariens 03317300

BRACKET RH

$

$

Not available

35

Ariens 03317400

BRACKET LH

$

$

Not available

36

Ariens 03317500

SPACER .630X.875X.625

$

$

Not available

37

$

$

Not available

38

Ariens 07511100

RUBBER STRAP

$

$

Not available

39

Ariens 06106100

SCR-MCH .25-20X1.25 SLRH PL

$

$

Not available

40

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

Usually ships in 4-12 days

0

41

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

42

Ariens 06208000

BLT-RDHDSQNK .50-13X1.75 PL
(Superseded to 06224800)

$5.99

$

Usually ships in 4-12 days

0

43

Ariens 03319900

FLANGETTE-4 HOLE

$

$

Not available

44

Ariens 05414500

BRG-BALL 1.50X80MMX1.7

$

$

Not available

45

$

$

Not available

46

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

47

Ariens 03320100

SPACER .510X.750X.312

$

$

Not available

48

Ariens 06202800

BLT-RDHDSQNK .38-16X1.0 GR5PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

49

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

$

$

Not available

52

Ariens 03319500

SPACER .635X.875X1.370

$

$

Not available

53

Ariens 05807000

PIN-ROLL .250X3.00

$

$

Not available

54

Ariens 53301500

PIN ASSEMBLY

$

$

Not available

55

Ariens 03319200

TINE RH

$32.99

$

Usually ships in 4-12 days

0

56

Ariens 05921200

BLT-HEX .38-16X1.13 GR9

$3.99

$

Usually ships in 4-12 days

0

57

Ariens 03319300

TINE LH

$32.99

$

Usually ships in 4-12 days

0

58

Ariens 06515000

NUT-LK-FLG .375-16 PL

$

$

Not available

59

Ariens 03332700

TINE SHAFT

$

$

Not available

60

Ariens 03320000

CAP-BEARING GUARD

$

$

Not available

61

Ariens 03315700

SPACER PLATE

$

$

Not available

62

Ariens 03318100

GEAR BOX MOUNT

$

$

Not available
