831039 - Ariens 42" Rotary Tiller Attachment (SN: 000101 - 000689) Tiller 42" - Gear Box Parts Diagram

42" Rotary Tiller Attachment

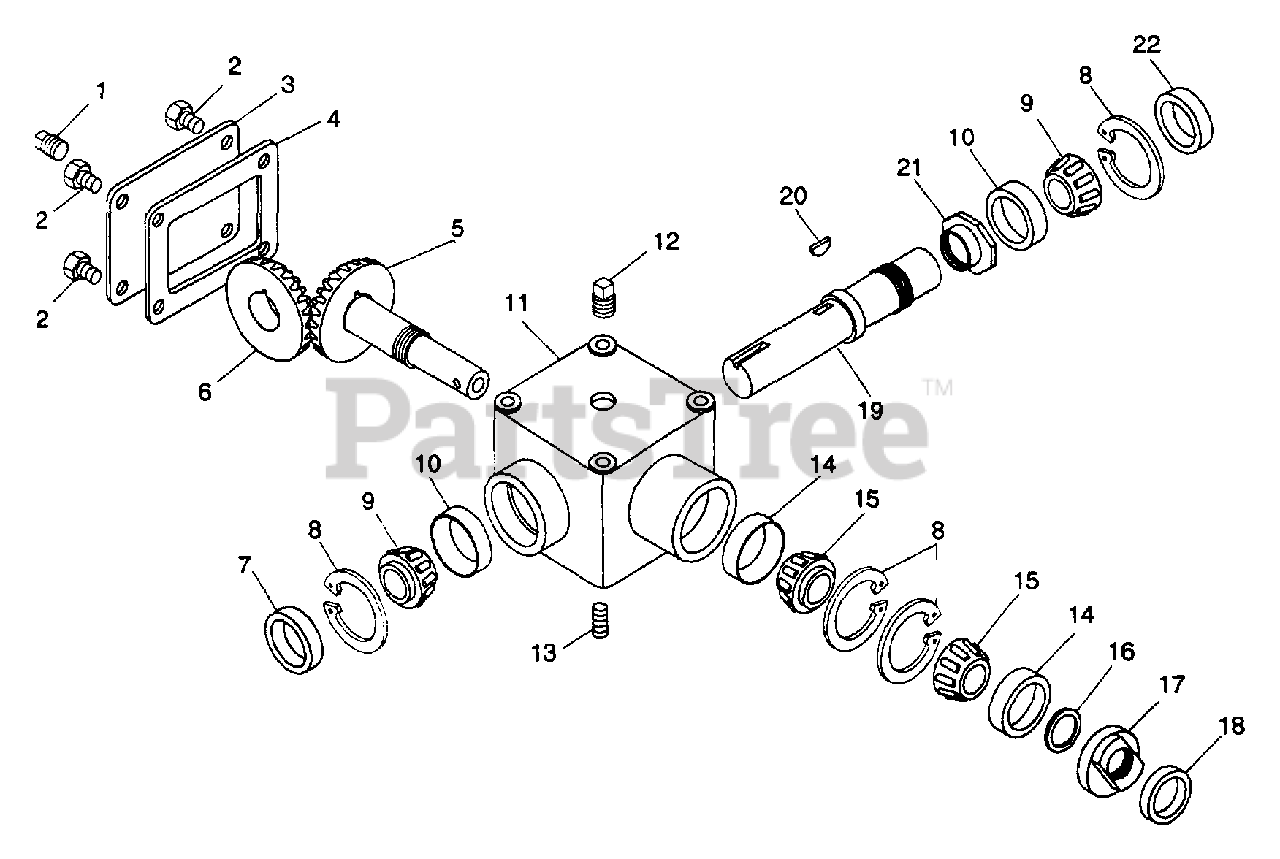

Tiller 42" - Gear Box Parts Diagram

  • Title

1

Ariens 03316500

PLUG-LEVER

$

$

Not available

2

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

3

Ariens 03315900

COVER

$

$

Not available

4

Ariens 03316800

GASKET

$

$

Not available

5

Ariens 03316100

BEVEL PINION SHAFT

$

$

Not available

6

Ariens 03316000

BEVEL GEAR

$

$

Not available

7

Ariens 03316700

CAP

$

$

Not available

8

Ariens 05708900

RG-RTNG-INT 2.000X.062

$

$

Not available

9

Ariens 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 20+

0

10

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

11

Ariens 03315800

HOUSING

$

$

Not available

12

Ariens 03316900

VENT PLUG

$

$

Not available

13

Ariens 03316600

PLUG-DRAIN

$

$

Not available

14

Ariens 05414600

BRG-CUP 1.980X.420

$

$

Not available

15

Ariens 05414700

BRG-CONE 29MMX.58

$39.99

$

Usually ships in 4-12 days

0

16

Ariens 05611300

O-RING 1.125X1.312X.093

$

$

Not available

17

Ariens 03316300

STAKE NUT

$

$

Not available

18

Ariens 05611400

SEAL 1.987 X1.500 X.313

$15.99

$

In Stock, only 1 left!

0

19

Ariens 03316400

OUTPUT SHAFT

$

$

Not available

20

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

21

Ariens 03316200

STAKE NUT

$

$

Not available

22

Ariens 05604900

SEAL 1.000X1.980X.250

$15.99

$

Usually ships in 4-12 days

0
