831038 - Ariens 42" Mower Deck (SN: 000101 - 000584) Mower 42" - Deck Parts Diagram

42" Mower Deck

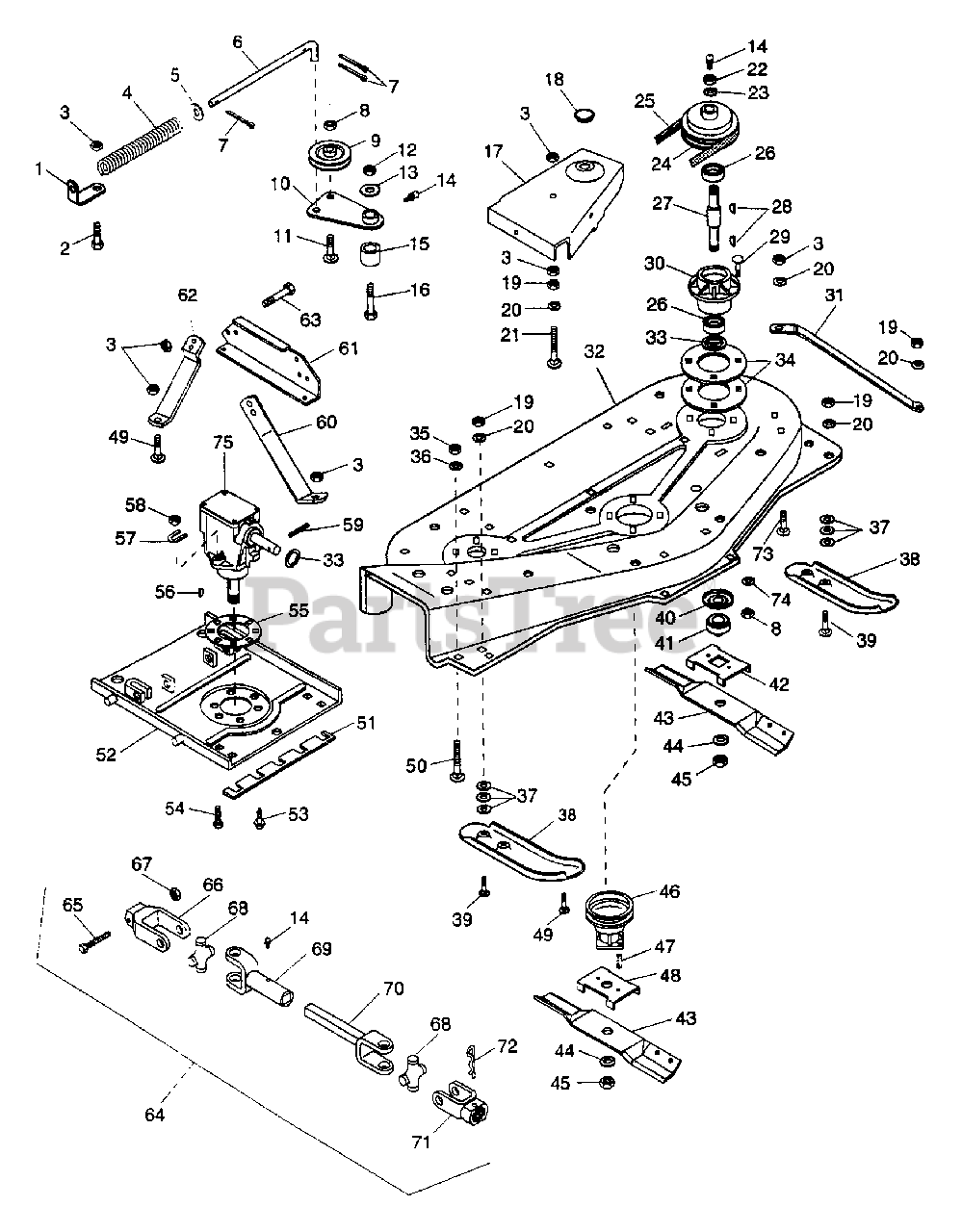

Mower 42" - Deck Parts Diagram

  • Title

1

Ariens 03418800

BRACKET
(Superseded to 03418851)

$77.99

$

Usually ships in 4-12 days

0

2

Ariens 05916800

BLT-HEX .31-18X.50 GR5

$

$

Not available

3

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 08301800

SG-COMP .106X.63X 12.0 WLD 62

$14.99

$

Usually ships in 4-12 days

0

5

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03433900

ROD-IDLER SPRING

$96.99

$

Usually ships in 4-12 days

0

7

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

8

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

10

Ariens 53400300

IDLER ARM W/ZERK

$103.99

$

In Stock, only 1 left!

0

11

Ariens 07006300

BLT-BTHD .38-16X1.25 GR5

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

13

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

15

Ariens 03403800

SPACER .512X.747X.968

$20.99

$

Usually ships in 4-12 days

0

16

Ariens 05901000

BLT-HEX .50-13X1.50 PL GR2
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

17

Ariens 03482200

BELT COVER R H 42"

$

$

Not available

17

Ariens 03482100

BELT COVER L H 42"

$

$

Not available

18

Ariens 07503400

PLUG BUTTON 1.50

$3.49

$

Usually ships in 4-12 days

0

19

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

20

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 18

0

21

Ariens 06211600

BLT-RDHDSQNK .31-18X3.25 FTHPL
(Superseded to 06223500)

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

23

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 03401800

SHEAVE

$187.99

$

Usually ships in 4-12 days

0

25

Ariens 07213900

V-BELT, HA-WRAPPED

$46.99

$

Usually ships in 4-12 days

0

26

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

27

Ariens 53115100

SPINDLE SHAFT W/ZERK

$74.99

$

In Stock, only 1 left!

0

28

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 6

0

29

Ariens 06203500

BLT-RDHDSQNK .375-16X.75 PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

30

Ariens 03433500

SPINDLE HOUSING

$

$

Not available

31

Ariens 03434500

SKID BRACE LH
(Superseded to 03434553)

$34.99

$

Usually ships in 4-12 days

0

32

Ariens 53403200

MOWER PAN W/DECALS 42"

$

$

Not available

33

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

34

Ariens 03433600

SPACER, SPINDLE

$

$

Not available

35

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

37

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 03034500

SKID
(Superseded to 03034559)

$39.99

$

Usually ships in 4-12 days

0

39

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

41

Ariens 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

42

Ariens 03485400

BLADE TRAY 42

$31.99

$

In Stock, only 1 left!

0

43

Ariens 03121300

BLADE

$36.99

$

In Stock, only 2 left!

0

44

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

46

Ariens 03184400

SHEAVE

$155.99

$

In Stock, only 1 left!

0

47

Ariens 05805500

PIN-GRV .188X.75 TP A

$1.49

$

Usually ships in 4-12 days

0

48

Ariens 03037200

BLADE TRAY - GT 42

$32.99

$

Usually ships in 4-12 days

0

49

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

50

Ariens 05921600

BLT-HEX.38-16X2.5FTHD GR2 YWZC

$2.99

$

In Stock, only 3 left!

0

51

Ariens 03038100

SHIM

$22.99

$

Usually ships in 4-12 days

0

52

Ariens 03058100

MOUNTING PLATE

$

$

Not available

53

Ariens 07406000

SCR-TAP .312-18X1.0 THH PL TR
(Superseded to 07413900)

$3.99

$

Usually ships in 4-12 days

0

54

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

$2.49

$

In Stock, Qty 9

0

55

Ariens 03121400

SHIM

$15.99

$

Usually ships in 4-12 days

0

56

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

57

Ariens 03189900

SHIM

$9.49

$

Usually ships in 4-12 days

0

58

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

59

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

60

Ariens 03072000

BRACE-RIGHT FRONT

$

$

Not available

61

Ariens 03071800

BRACKET-BRACE

$5.99

$

Usually ships in 4-12 days

0

62

Ariens 03071900

BRACE-RIGHT REAR

$5.99

$

Usually ships in 4-12 days

0

63

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

64

Ariens 03065400

PTO ASSEMBLY
(Superseded to 03093300)

$517.99

$

Usually ships in 4-12 days

0

65

Ariens 05915700

BLT-HEX .25-20X2.13 GR5
(Superseded to 53102600)

$13.99

$

In Stock, only 1 left!

0

66

Ariens 03155700

YOKE

$168.99

$

Usually ships in 4-12 days

0

67

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

68

Ariens 03155800

JOURNAL CROSS & BEARING ASSEMB

$

$

Not available

69

Ariens 03026700

SLIP YOKE
(Superseded to 03094700)

$258.99

$

Usually ships in 4-12 days

0

70

Ariens 03026600

YOKE AND SHAFT
(Superseded to 03094600)

$206.99

$

Usually ships in 4-12 days

0

71

Ariens 03155900

YOKE

$258.99

$

Usually ships in 4-12 days

0

72

Ariens 06703000

PIN-HAIR INT .18X1.18X3.25 PL
(Superseded to 53126000)

$14.99

$

In Stock, only 1 left!

0

73

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

74

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

75

Ariens 53121100

MOWER GEAR CASE 42" AND NEW 48

$

$

Not available
