831032 - Ariens 48" Two Stage Sno-Thro Attachment (SN: 000101 & Above) Sno-Thro 48" Controls And Chute Parts Diagram

48" Two Stage Sno-Thro Attachment

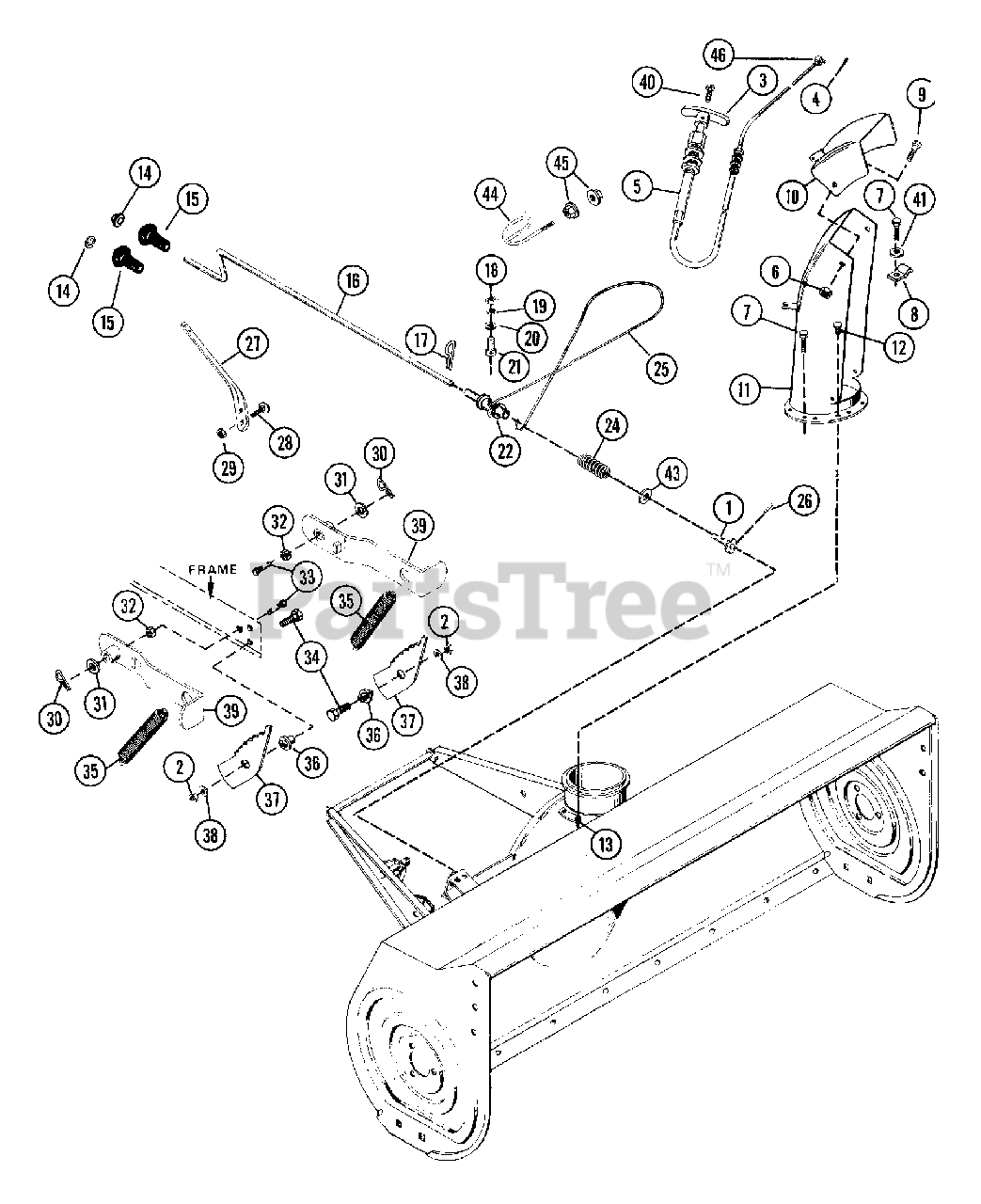

Sno-Thro 48" Controls And Chute Parts Diagram

  • Title
1

Ariens 03028700

DISC ASSEMBLY

$54.99

$

Usually ships in 4-12 days

0

2

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 07513700

TEE HANDLE

$47.99

$

Usually ships in 4-12 days

0

4

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

5

Ariens 06917800

CONTROL CABLE
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

6

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 8

0

8

Ariens 06900300

CABLE CLAMP

$

$

Not available

9

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 53114400

DEFLECTOR W/DECAL

$

$

Not available

11

Ariens 03028300

DISCHARGE CHUTE
(Superseded to 03028359)

$

$

Not available

12

Ariens 07406900

SCR-TAP 10-24X.484 HWH TR

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 02459000

CHUTE CLAMP
(Superseded to 52409200)

$29.99

$

In Stock, only 1 left!

0

14

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 15

0

14

Ariens 05708600

RG-RTNG-EXT .500X.015

$2.99

$

In Stock, Qty 11

0

15

$13.99

$

In Stock, Qty 7

0

15

$

$

Not available

16

Ariens 03031300

CRANK - CHUTE CONTROL

$

$

Not available

16

Ariens 03081900

CHUTE CONTROL CRANK

$154.99

$

Usually ships in 4-12 days

0

17

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

19

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$5.99

$

In Stock, only 2 left!

0

20

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

22

Ariens 03028600

SPOOL
(Superseded to 03028643)

$34.99

$

Usually ships in 4-12 days

0

24

Ariens 08316900

SG-COMP .054X.75X1.6

$

$

Not available

25

$142.99

$

Usually ships in 4-12 days

0

26

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

27

Ariens 03082000

CHUTE SUPPORT

$

$

Not available

28

Ariens 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

29

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06409600

WSHR-FL-STL .458X.750X.06 PL

$

$

Not available

32

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

33

Ariens 01226800

STUD-WEIGHT

$

$

Not available

34

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

35

Ariens 08317700

SG-TENS .188X1.50X8.5 WLD 57

$39.99

$

Usually ships in 4-12 days

0

36

Ariens 03019100

SPACER .323X.498X.531X1.000

$34.99

$

In Stock, only 1 left!

0

37

Ariens 03037900

SPRING ASSIST CONTROL
(Superseded to 03037951)

$22.99

$

Usually ships in 4-12 days

0

38

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 03019200

SPRING ARM

$161.99

$

Usually ships in 4-12 days

0

40

Ariens 06106500

SCR-MCH 10-32X.50 SLPAN SS

$2.49

$

Usually ships in 4-12 days

0

40

Ariens 06108600

SCR-MCH 8-32X.75 SLPAN PL
(Superseded to 07029300)

$1.99

$

Usually ships in 4-12 days

0

41

Ariens 06414100

WSHR-FL-STL .219X.500X.049 PL
(Superseded to 06442700)

$0.99

$

Usually ships in 4-12 days

0

43

Ariens 06421200

WSHR-FL-STL .640X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 03007900

CABLE SUPPORT

$

$

Not available

45

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

46

$37.99

$

Usually ships in 4-12 days

0
