831027 - Ariens 48" Mower Deck (SN: 000401 & Above) Tiller 48" Drive Shaft Parts Diagram

48" Mower Deck

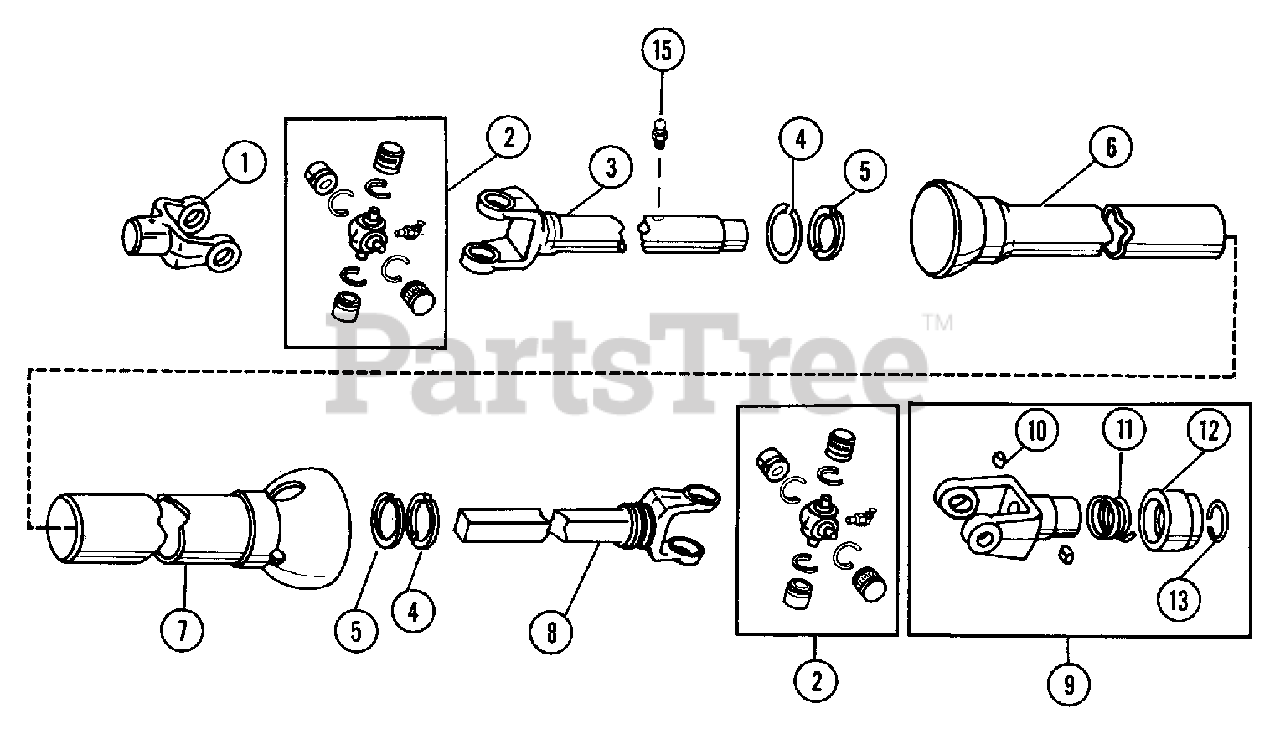

Tiller 48" Drive Shaft Parts Diagram

  • Title

1

Ariens 03322700

END YOKE

$

$

Not available

2

Ariens 53114500

REPAIR KIT

$

$

Not available

3

Ariens 03322500

YOKE AND TUBE
(Superseded to 03331400)

$

$

Not available

4

Ariens 05709000

RG-RTNG WEASLER #2A N20

$

$

Not available

5

Ariens 05414800

BRG-BALL NYL WEASLER

$

$

Not available

6

Ariens 03322600

MALE GUARD TUBE

$

$

Not available

7

Ariens 53300900

FEMALE GUARD TUBE W/DECAL
(Superseded to 03322900)

$

$

Not available

8

Ariens 03322800

YOKE AND SHAFT

$163.99

$

Usually ships in 4-12 days

0

9

Ariens 53116300

LOCK YOKE ASSEMBLY

$

$

Not available

10

Ariens 03322300

STAINLESS BALL

$3.49

$

Usually ships in 4-12 days

0

11

Ariens 08319400

SG ??X??X?? WEASLER

$

$

Not available

12

Ariens 03322200

COLLAR

$

$

Not available

13

Ariens 05709100

RG-RTNG

$

$

Not available

Ariens 07887500

CAUTION DECAL

Note: (NOT SHOWN)

$

$

Not available

15

Ariens 01215200

ZERK FITTING

$3.99

$

Usually ships in 4-12 days

0
