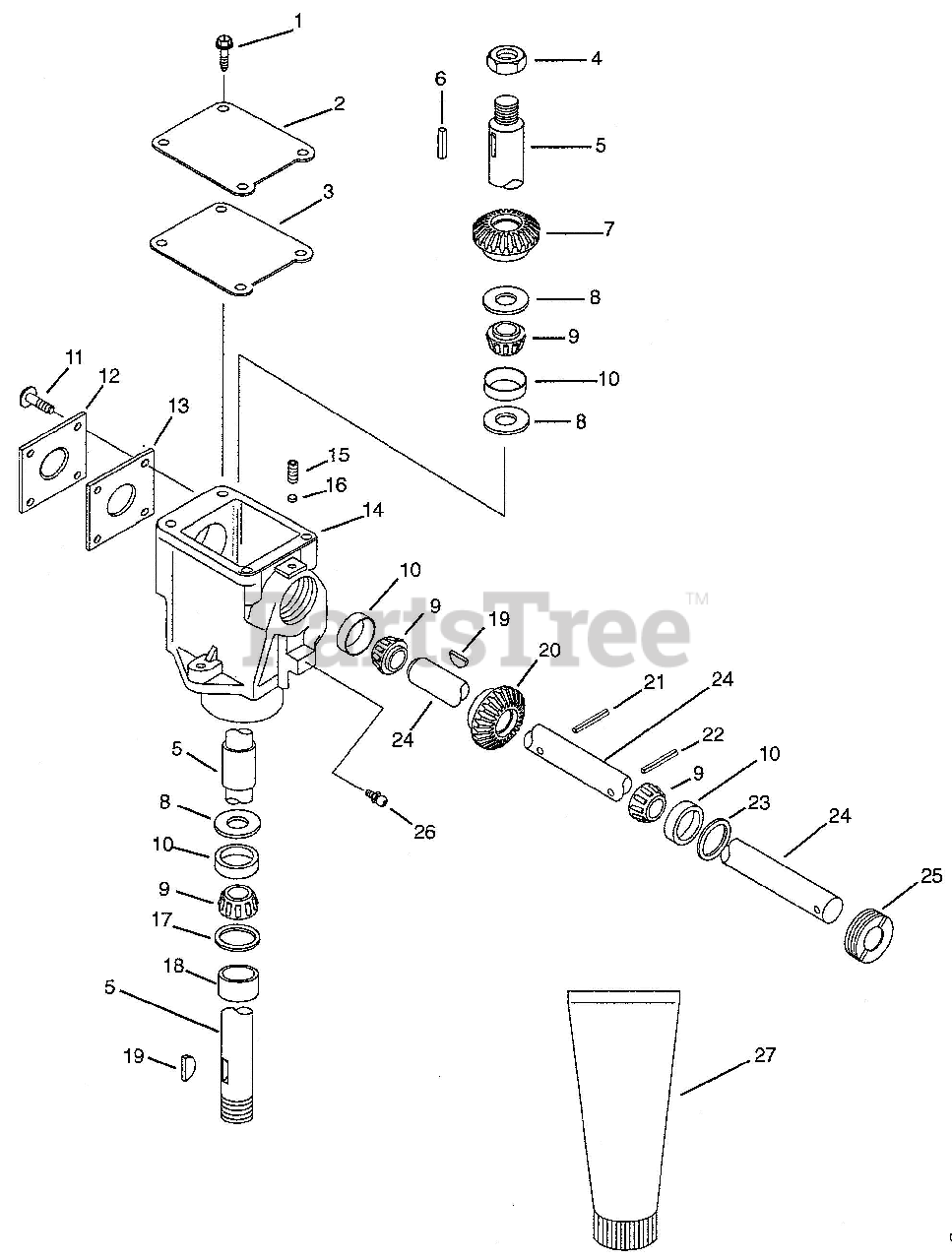

831023 - Gravely 60" Flex-N-Float Deck for GT 600 Mower (SN: 000101 & Above) Mower Gear Case Parts Diagram

60" Flex-N-Float Deck for GT 600 Mower

Mower Gear Case Parts Diagram

  • Title

1

Gravely 07415600

SCREW-TAPPING 8-32 X .50

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 03183100

GEAR CASE COVER

$

$

Not available

3

Gravely 03183500

TOP GASKET

$4.99

$

In Stock, only 2 left!

0

4

Gravely 06512800

NUT-JAM-COTTER .562-18

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 03191200

OUTPUT SHAFT

$96.99

$

Usually ships in 4-12 days

0

6

Gravely 06602700

KEY-SQUARE .25 X .625 X 25

$3.99

$

In Stock, only 3 left!

0

7

Gravely 03184500

GEAR

Note: (831015)

$231.99

$

Usually ships in 4-12 days

0

7

Gravely 03182900

GEAR-BEVEL

Note: (831023)

$

$

Not available

8

Gravely 06420800

WASHER-FLAT-STEEL .781 X 1.000 X .025
(Superseded to 06420600)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06420600

WASHER-FLAT-STEEL .781 X 1.000 X .005

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06420900

WASHER-FLAT-STEEL .781 X 1.000 X .003
(Superseded to 06420600)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06404100

WASHER-FLAT-STEEL .781 X 1.000 X .032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

8

Gravely 06420700

WASHER-FLAT-STEEL .781 X 1.000 X .015
(Superseded to 06420600)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 05404500

BEARING-CONE .750 X .61

$23.99

$

In Stock, Qty 9

0

10

Gravely 05404400

BEARING-CUP 1.781 X .475

$10.99

$

In Stock, Qty 20+

0

11

Gravely 07414400

SCREW-TAPPING .312-18 X .75
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

12

Gravely 03183200

BEARING SIDE COVER

$64.99

$

Usually ships in 4-12 days

0

13

Gravely 53108400

SIDE COVER GASKET SET

$44.99

$

Usually ships in 4-12 days

0

13

Gravely 03190600

SIDE COVER GASKET

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 03190700

SIDE COVER GASKET

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 03190800

SIDE COVER GASKET

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 03183000

GEAR CASE

$270.99

$

In Stock, only 1 left!

0

15

Gravely 06001400

SCREW-SET .25-.20 X .25
(Superseded to 06005400)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 03191400

PLUG

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 05606600

SEAL 1.000 X 1.980 X .375

$15.99

$

In Stock, only 2 left!

0

18

Gravely 03191300

SPACER

$41.99

$

Usually ships in 4-12 days

0

19

Gravely 06601200

KEY-WOODRUF .25 X .75 X 5

$2.99

$

In Stock, Qty 20+

0

20

Gravely 03184600

GEAR

Note: (831015)

$258.99

$

Usually ships in 4-12 days

0

21

Gravely 05807200

PIN-GROOVE .188 X 1.00

$9.49

$

Usually ships in 4-12 days

0

22

Gravely 05804900

PIN-GROOVE .188 X 1.25

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 05606200

SEAL .750 X 1.499 X .225

$6.99

$

In Stock, only 1 left!

0

24

Gravely 03184000

INPUT SHAFT

$110.99

$

Usually ships in 4-12 days

0

25

Gravely 01037100

ADJUSTMENT PLUG

$77.99

$

Usually ships in 4-12 days

0

26

Gravely 07012600

FITTING-LUBE .25-28 X .256
(Superseded to 07001806)

$

$

Not available

27

Gravely 00929100

GREASE - STENS
(Superseded to 00036700)

$21.99

$

In Stock, Qty 10

0
