831019 - Ariens Vac Bagger Kit (SN: 003901 & Above) Vac Bagger Parts Diagram

Vac Bagger Kit

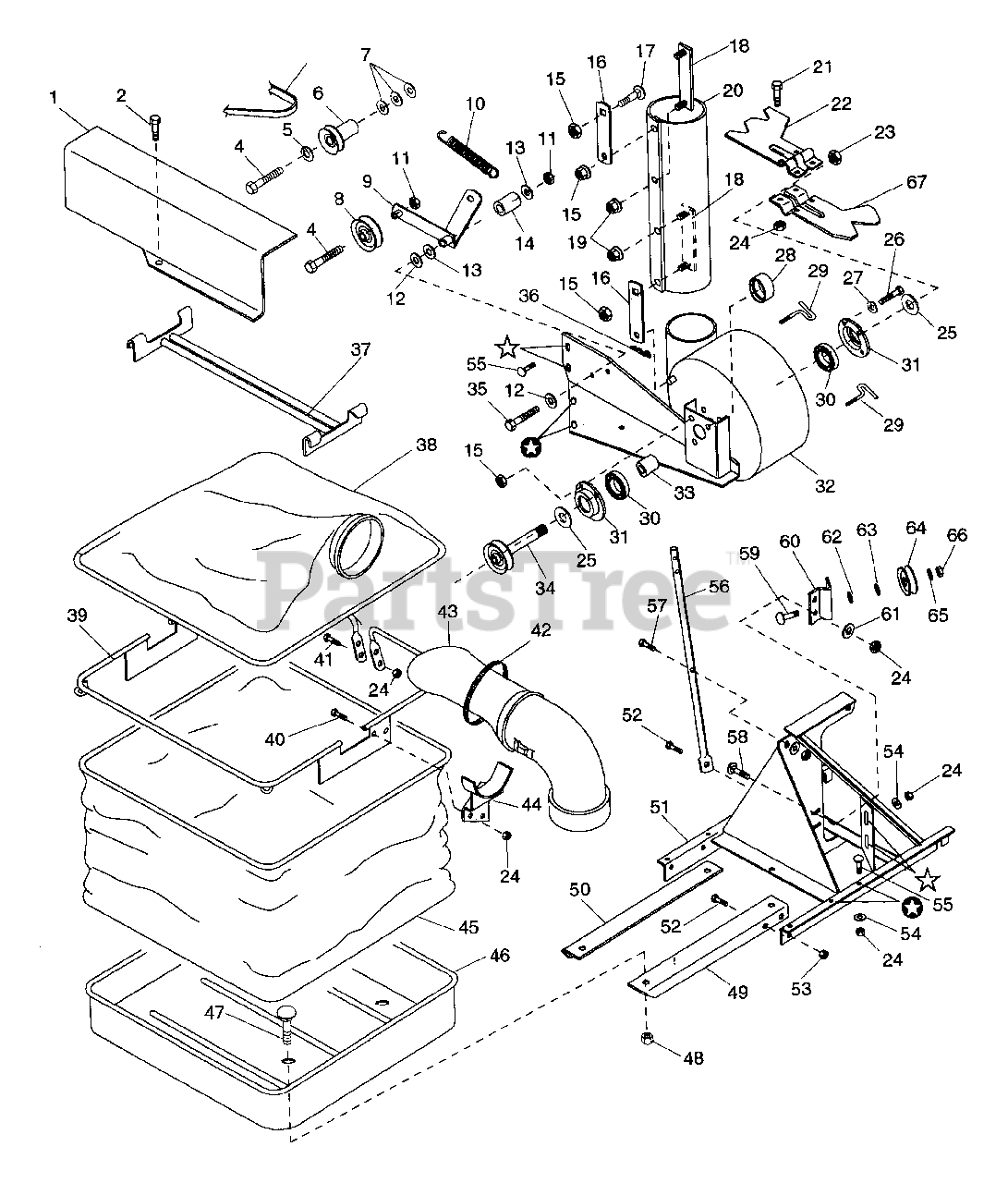

Vac Bagger Parts Diagram

  • Title

1

Ariens 03022100

BELT SHIELD

$

$

Not available

2

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 07212200

V-BELT, HA-RAW EDGE

$

$

Not available

4

Ariens 05915200

BLT-HEX .38-16X2.50 PL GR5
(Superseded to 05958400)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

6

Ariens 03022700

VAC PTO PULLEY

$

$

Not available

7

Ariens 03002900

SPACER-SPECIAL CONICAL

$12.99

$

In Stock, only 3 left!

0

8

Ariens 07311100

IDLER-FLAT 2.75 X .38 DAYCO

$39.99

$

In Stock, only 3 left!

0

9

Ariens 03042500

IDLER ARM WELDMENT

$

$

Not available

10

Ariens 08320300

SG-TENS .135X.98X6.0 WLD 62

$17.99

$

In Stock, Qty 20+

0

11

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06406700

WSHR-FL-STL .390X.875X.18 PL
(Superseded to 06436800)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 03042400

SPACER .391X.625X1.520

$

$

Not available

15

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 03053600

STRAP

$

$

Not available

17

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 02533300

CLIP

$

$

Not available

19

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 03053400

TUBE, UPPER

$

$

Not available

21

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

22

Ariens 03021500

FAN BLADE

$45.99

$

Usually ships in 4-12 days

0

23

Ariens 06512000

NUT-LK-JAM 1.0-14 PL

$11.99

$

Usually ships in 4-12 days

0

24

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06418500

WSHR-FL-STL 1.015X1.500X.125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 05916200

BLT-HEX .25-20X2.00 PL GR5
(Superseded to 05967100)

$2.49

$

Usually ships in 4-12 days

0

27

Ariens 06406500

WSHR-FL-STL .268X.562X.046 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 03421800

HOUSING

$206.99

$

In Stock, only 1 left!

0

29

Ariens 03444800

CLAMP SCREW

$

$

Not available

30

Ariens 05416000

BRG-BALL 1.0X2.0X.56 (1641)

$14.99

$

In Stock, Qty 7

0

31

Ariens 03185900

BEARING FLANGE

$22.99

$

In Stock, only 3 left!

0

32

Ariens 53113800

FAN HOUSING W/ DECAL

$

$

Not available

33

Ariens 03421900

SPACER 1.010X1.250X.924

$42.99

$

Usually ships in 4-12 days

0

34

Ariens 03422100

SPINDLE WELDMENT

$349.99

$

Usually ships in 4-12 days

0

35

Ariens 05916000

BLT-HEX .38-16X2.75 PL GR5
(Superseded to 05961400)

$3.99

$

In Stock, only 4 left!

0

36

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 03023600

CENTER BAG SUPPORT

$

$

Not available

38

Ariens 03023500

COVER

$

$

Not available

39

Ariens 03023200

SUPPORT, BAG

$216.99

$

Usually ships in 4-12 days

0

40

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 05913700

BLT-HEX .31-18X2.25 PL GR2
(Superseded to 05963700)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$17.99

$

Usually ships in 4-12 days

0

43

Ariens 03053200

UPPER ELBOW

$

$

Not available

44

Ariens 03053500

BRACKET-ELBOW SUPPORT

$5.99

$

Usually ships in 4-12 days

0

45

Ariens 03087700

BAG

$265.99

$

Usually ships in 4-12 days

0

46

Ariens 03026100

BAG TRAY

$51.99

$

Usually ships in 4-12 days

0

47

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

48

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 03022900

RIGHT TRAY SUPPORT

$

$

Not available

50

Ariens 03023000

LEFT TRAY SUPPORT

$

$

Not available

51

Ariens 03079100

FRAME

$

$

Not available

52

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

53

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

54

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

55

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

56

Ariens 03053800

SUPPORT TUBE

$45.99

$

Usually ships in 4-12 days

0

57

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

58

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

59

Ariens 06207700

BLT-RDHDSQNK .38-16X1.25 SHTPL
(Superseded to 06222200)

$2.49

$

In Stock, Qty 20+

0

60

Ariens 03021800

IDLER MOUNT

$

$

Not available

61

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

62

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

63

Ariens 06410400

WSHR-FL-STL .520X.810X.033
(Superseded to 06439600)

$2.49

$

Usually ships in 4-12 days

0

64

Ariens 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$39.99

$

In Stock, only 2 left!

0

65

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

66

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

67

Ariens 03422000

FAN BLADE

$

$

Not available
