831018 - Ariens Vac Trailer Kit (SN: 000600 - 001099) Dump Trailer Parts Diagram

Vac Trailer Kit

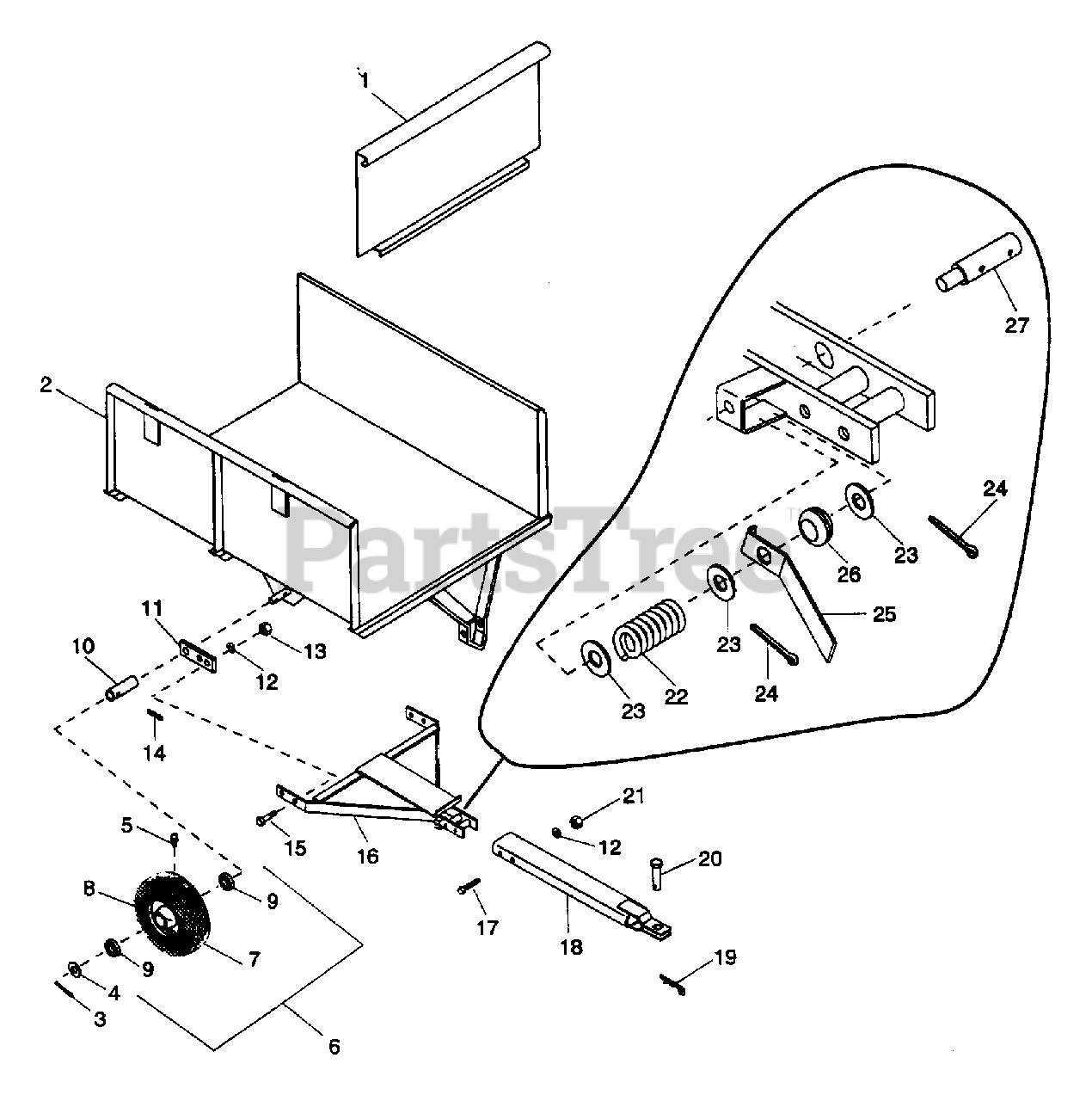

Dump Trailer Parts Diagram

  • Title
1

Ariens 03026000

GATE WELDMENT

$

$

Not available

2

Ariens 03025300

BOX WELDMENT

$

$

Not available

3

Ariens 06701200

PIN-COTR .18X1.50 PL
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

4

Ariens 06418500

WSHR-FL-STL 1.015X1.500X.125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

6

Ariens 07112300

TIRE 8X1.75

$

$

Not available

7

Ariens 07102100

TIRE 16X6.50-8 2 PLY

$79.99

$

Usually ships in 4-12 days

0

$

$

Not available

9

Ariens 05412100

BRG-BALL 1.0X2.0X.55

$

$

Not available

10

Ariens 03025900

SHAFT COLLAR

$

$

Not available

11

$

$

Not available

12

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

13

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

In Stock, only 1 left!

0

14

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

15

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

16

Ariens 03025600

TONGUE WELDMENT

$

$

Not available

17

Ariens 05910700

BLT-HEX .50-13X3.00 PL GR2
(Superseded to 05959900)

$4.99

$

In Stock, only 1 left!

0

18

Ariens 03025700

POLE WELDMENT

$

$

Not available

19

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

20

Ariens 03027600

HITCH PIN

$

$

Not available

21

Ariens 06501700

NUT-JAM .50-13 PL
(Superseded to 06529300)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 08313000

SG-COMP .62X.68X1.75

$17.99

$

Usually ships in 4-12 days

0

23

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

25

$

$

Not available

26

Ariens 07506400

GROMMET .50IDX.812OD

$5.99

$

Usually ships in 4-12 days

0

$

$

Not available
