831016 - Ariens Five-In-One Implement Package (SN: 000101 & Above) Disc & Hipper Gang Assembly Parts Diagram

Five-In-One Implement Package

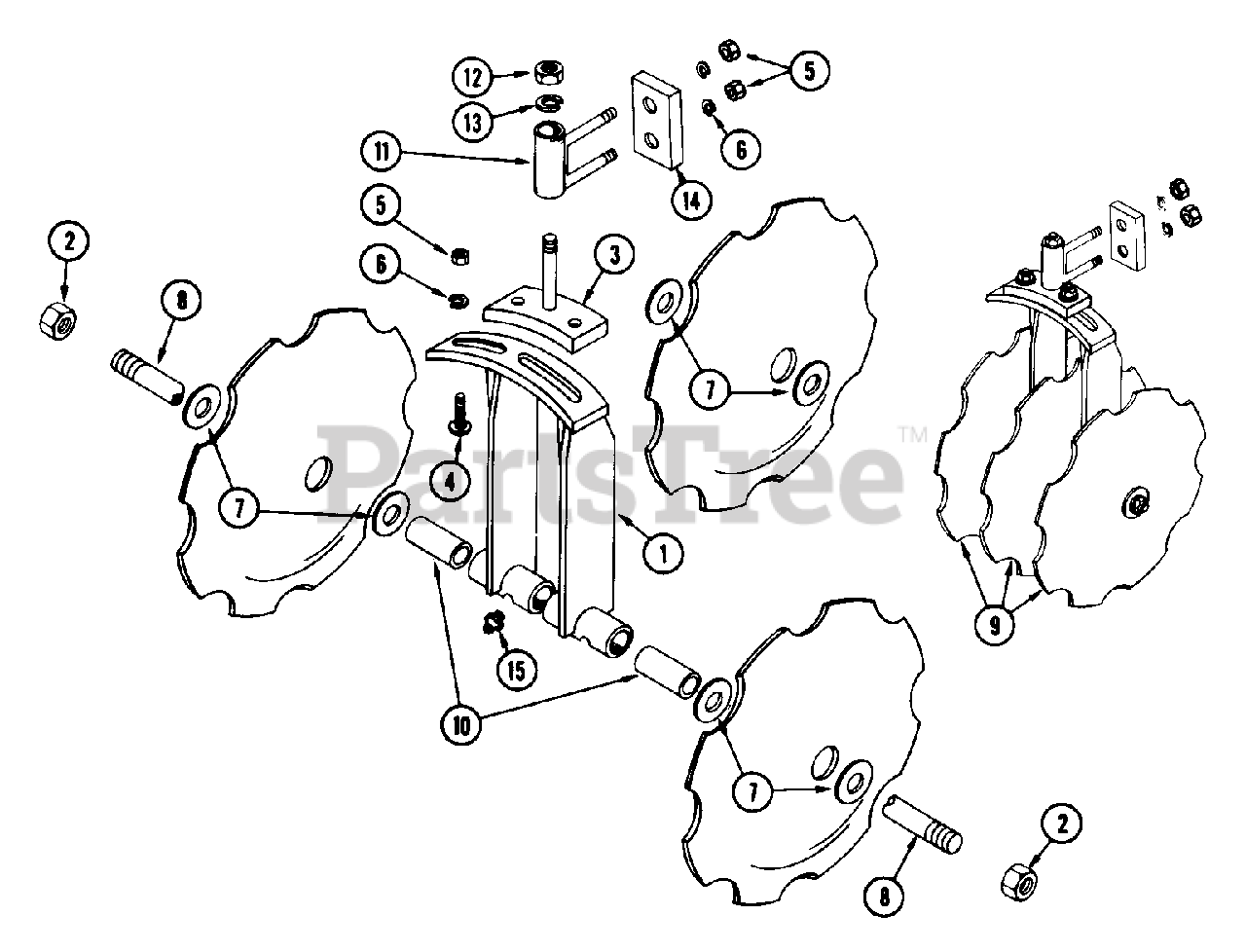

Disc & Hipper Gang Assembly Parts Diagram

  • Title

1

Ariens 03010300

LOWER ROCKING BOASTER

$

$

Not available

2

Ariens 06505300

NUT-LK-CTR .75-10 PL

$

$

Not available

3

Ariens 03010400

UPPER ROCKING BOASTER

$

$

Not available

4

Ariens 06200600

BLT-RDHDSQNK .50-13X2.50 PL
(Superseded to 06225500)

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

7

Ariens 06400900

WSHR-FL-STL.812X1.500X.139
(Superseded to 06439000)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 03010600

ARBOR BOLT

$

$

Not available

9

Ariens 03010200

DISC

$

$

Not available

10

Ariens 05512500

BSHG-SLV (ND)

$

$

Not available

11

Ariens 03010100

GANG RETAINER BRACKET

$

$

Not available

12

Ariens 06513400

NUT-JAM .875-9 (ND)

$

$

Not available

13

Ariens 06303300

WSHR-LOCK .875 MED PL

$

$

Not available

14

Ariens 03011200

BRACKET RETAINER STRAP

$

$

Not available

15

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available
