831016 - Ariens Five-In-One Implement Package (SN: 000101 & Above) Cultivator Assembly Parts Diagram

Five-In-One Implement Package

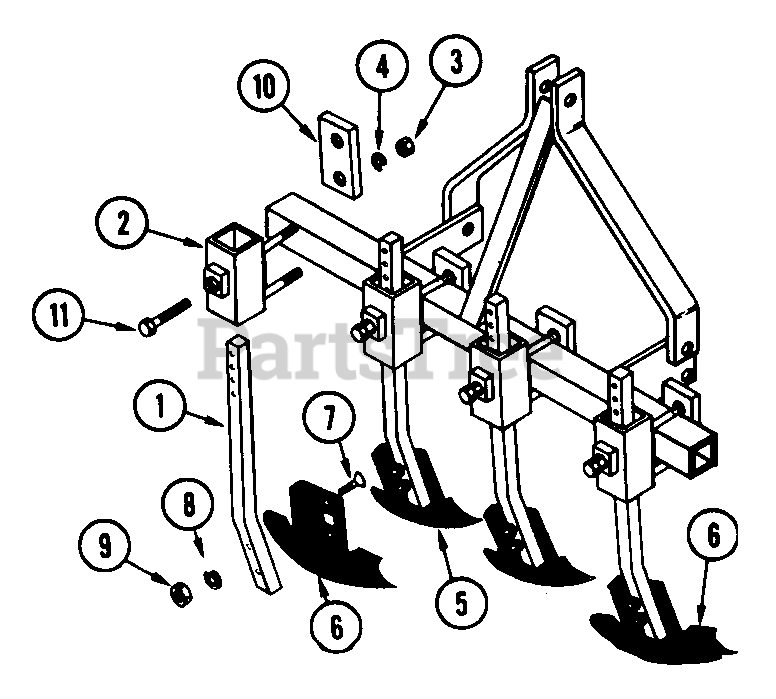

Cultivator Assembly Parts Diagram

  • Title
1

Ariens 03011300

CULTIVATOR LEG

$

$

Not available

2

Ariens 03011100

ADJUSTMENT BRACKET

$

$

Not available

3

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

5

Ariens 03011400

CULTIVATOR LEG 4 IN

$

$

Not available

6

Ariens 03011500

CULTIVATOR BLADE 6 IN

$

$

Not available

7

Ariens 07000300

BLT-PLOW .38-16X1.0 GR5

$

$

Not available

8

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

9

Ariens 06503500

@NUT-HEX .44-14 YWZC

$3.49

$

In Stock, only 4 left!

0

10

Ariens 03011200

BRACKET RETAINER STRAP

$

$

Not available

11

Ariens 06002100

SCR-SET .50-13X2.00 SQH

$

$

Not available
