831010 - Ariens 48" Two Stage Sno-Thro Attachment (SN: 006001 & Above) Sno-Thro 48" S/N 006000 & UP Continued Parts Diagram

48" Two Stage Sno-Thro Attachment

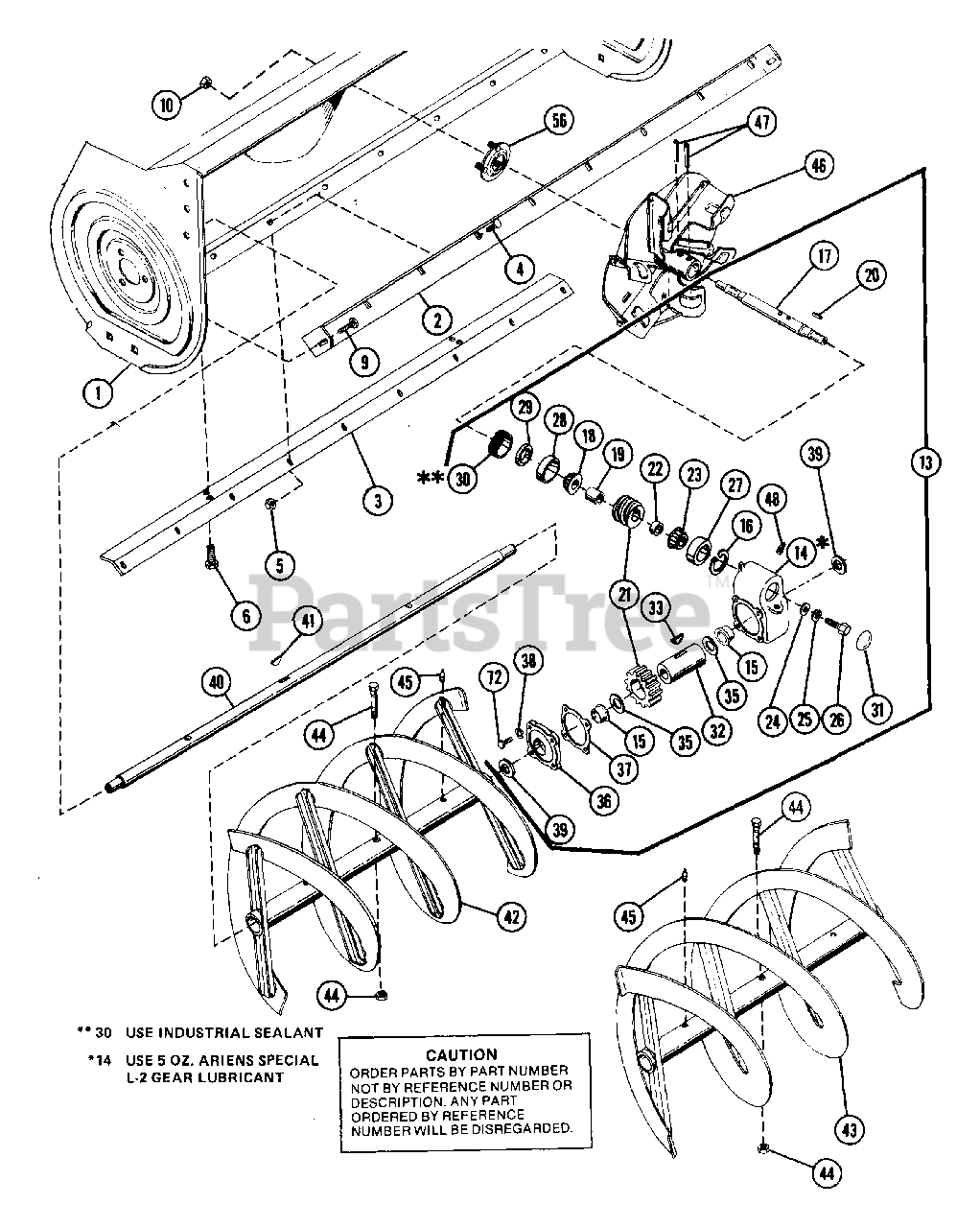

Sno-Thro 48" S/N 006000 & UP Continued Parts Diagram

  • Title

1

Ariens 53107700

BLOWER HOUSING ASSEMBLY

$

$

Not available

2

Ariens 03195400

SCRAPER BLADE
(Superseded to 03195443)

$83.99

$

Usually ships in 4-12 days

0

3

Ariens 03185800

SCRAPER BLADE BRACE
(Superseded to 03185843)

$258.99

$

Usually ships in 4-12 days

0

4

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 53108200

GEAR CASE - CAST IRON

$1194.99

$

Usually ships in 4-12 days

0

14

Ariens 03187900

GEAR CASE - CAST IRON

$362.99

$

Usually ships in 4-12 days

0

15

Ariens 05505900

BSHG-FLG .683X1.87X1.68X2.250

$14.99

$

In Stock, only 2 left!

0

16

Ariens 05703200

RG-RTNG INT 1.781 HSG X.062
(Superseded to 05707500)

$9.49

$

In Stock, Qty 11

0

17

Ariens 03188000

WORM SHAFT

$219.99

$

Usually ships in 4-12 days

0

18

Ariens 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 20+

0

19

Ariens 03188100

BEARING SPACER 1.032X1.25X1.78

$26.99

$

In Stock, only 1 left!

0

20

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

21

Ariens 52400900

WORM & GEAR SERVICE ASSEMBLY

$176.99

$

Usually ships in 4-12 days

0

22

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

23

Ariens 05404500

BRG-CONE .750X.61

$23.99

$

In Stock, Qty 11

0

24

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

25

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 05404400

BRG-CUP 1.781X.475

$10.99

$

In Stock, Qty 20+

0

28

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

29

Ariens 05604600

SEAL 1.125X1.375X.125

$10.99

$

In Stock, Qty 11

0

30

Ariens 03188200

ADJUSTMENT PLUG

$58.99

$

Usually ships in 4-12 days

0

31

Ariens 00403700

DUST CAP

$18.99

$

In Stock, only 1 left!

0

32

Ariens 03188300

GEAR CASE SHAFT
(Superseded to 53127700)

$194.99

$

Usually ships in 4-12 days

0

33

Ariens 06603500

KEY-FTHR .25X.875X.312

$6.99

$

Usually ships in 4-12 days

0

35

Ariens 06408700

WSHR-FL-STL 1.625X2.500X.012

$11.99

$

In Stock, only 4 left!

0

36

Ariens 02401300

GEAR CASE COVER

$136.99

$

Usually ships in 4-12 days

0

37

Ariens 00200800

GASKET

$3.99

$

In Stock, Qty 20+

0

38

Ariens 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

39

Ariens 05607000

SEAL 1.625X2.125X.250

$9.99

$

In Stock, Qty 20+

0

40

Ariens 03188500

RAKE SHAFT

$

$

Not available

41

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

42

Ariens 53108000

RAKE, RIGHT-48(1.12ID X 15.75)
(Superseded to 53127900)

$861.99

$

In Stock, only 1 left!

0

43

Ariens 53107900

RAKE, LEFT-48"(1.12ID X 15.75)
(Superseded to 53128000)

$

$

Not available

44

Ariens 53108100

SHEAR BOLT & NUT ASSEMBLY
(Superseded to 51001500)

$4.99

$

In Stock, Qty 20+

0

45

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

46

Ariens 03188900

FAN

$672.99

$

Usually ships in 4-12 days

0

47

Ariens 05801500

PIN-ROLL .313X1.75

$2.49

$

In Stock, Qty 6

0

48

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

56

Ariens 03186000

BEARING FLANGE

$45.99

$

Usually ships in 4-12 days

0

72

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0
