831006 - Ariens 34" Rotary Tiller Attachment (SN: 000101 & Above) Gear Box Parts Diagram

34" Rotary Tiller Attachment

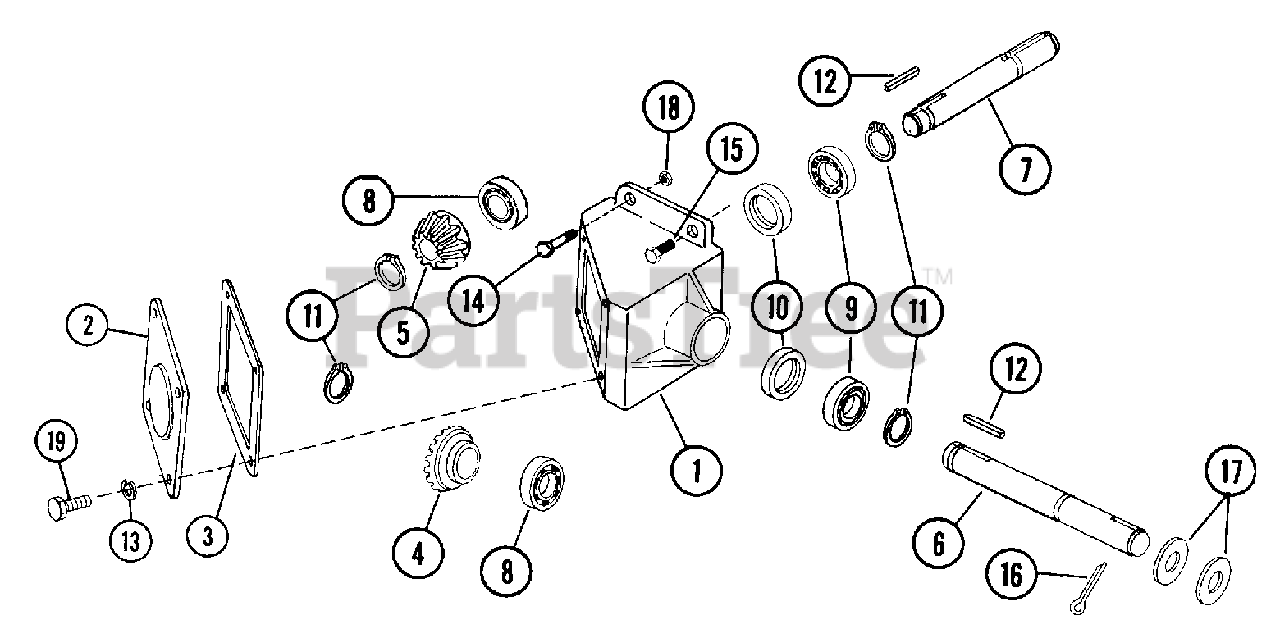

Gear Box Parts Diagram

  • Title

Ariens 03065600

90 DEGREE GEARBOX

$

$

Not available

1

Ariens 03146100

GEARBOX HOUSING

$

$

Not available

2

Ariens 03146200

GEAR BOX LID

$

$

Not available

3

Ariens 03146300

GASKET

$

$

Not available

4

Ariens 03146400

OUTPUT GEAR

$

$

Not available

5

Ariens 03146500

INPUT GEAR

$

$

Not available

6

Ariens 03146600

OUTPUT SHAFT

$190.99

$

Usually ships in 4-12 days

0

7

Ariens 03146700

INPUT SHAFT

$

$

Not available

8

Ariens 05411800

BRG-BALL .750X1.625X.31

$45.99

$

In Stock, only 1 left!

0

9

Ariens 05411900

BRG-BALL .750X1.625X.50

$

$

Not available

10

Ariens 05608000

SEAL .750X1.624X.312
(Superseded to 05614600)

$12.99

$

Usually ships in 4-12 days

0

11

Ariens 05701200

RG-RTNG-EXT .750X.042
(Superseded to 05700135)

$2.49

$

In Stock, only 4 left!

0

12

Ariens 06603100

KEY-SQ .188X.68X.188 DANUSER

$

$

Not available

13

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

14

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06410800

WSHR-FL-STL .781X1.250X.059 PL
(Superseded to 06416700)

$

$

Not available

18

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0
