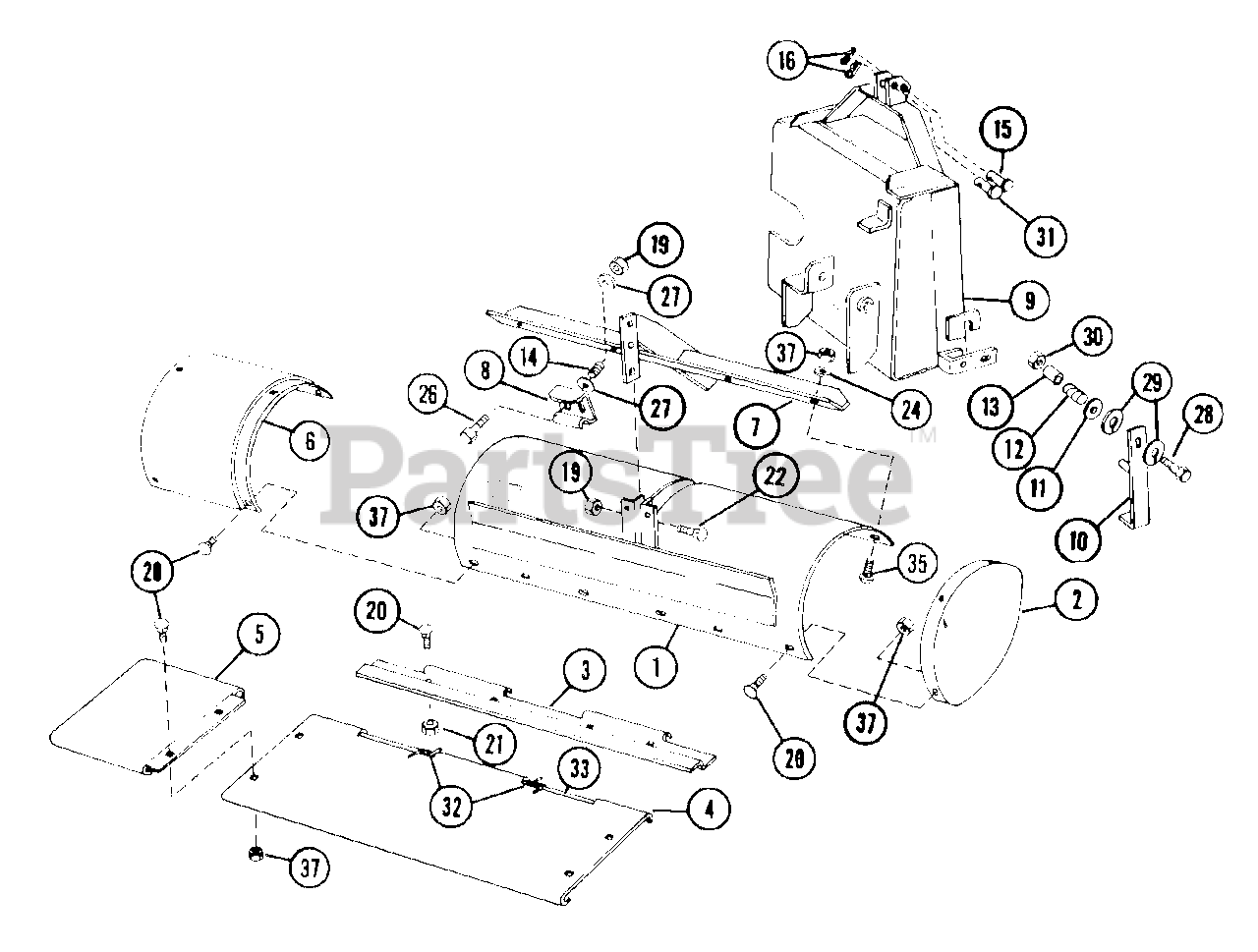

831005 - Ariens 34" Rotary Tiller Attachment (SN: 000101 & Above) Shrouding & Mount Parts Diagram

34" Rotary Tiller Attachment

Shrouding & Mount Parts Diagram

  • Title
1

Ariens 53101500

SHROUD ASSEMBLY

$

$

Not available

2

Ariens 03145700

SHROUD COVER

$

$

Not available

3

Ariens 03142200

HINGE PLATE

$

$

Not available

4

Ariens 03147400

LEVELER BLADE
(Superseded to 03065800)

$

$

Not available

5

Ariens 03145600

BLADE LEVEL EXTENSION

$

$

Not available

6

Ariens 03145500

SHROUD EXTENSION

$

$

Not available

7

Ariens 03142400

SHROUD BRACE

$

$

Not available

8

$

$

Not available

9

Ariens 03179600

TILLER FRAME

$

$

Not available

10

Ariens 03138000

KICK STAND LEG

$

$

Not available

11

Ariens 03138300

SPACER .406X1.500X.188

$

$

Not available

12

Ariens 08313800

SG-COMP .70X.68X.68

$

$

Not available

13

Ariens 03138200

SPACER .384X.500X.625

$

$

Not available

14

Ariens 08314400

SG-COMP .059X.43X1.00 WLD??

$

$

Not available

15

Ariens 03138500

CLEVIS PIN

$

$

Not available

16

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06204600

BLT-RDHDSQNK .31-18X.50 GR5 PL
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0

21

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 05914800

BLT_HEX .25_20X1.75 GR5

$

$

Not available

27

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 05903000

BLT-HEX .38-16X2.25 GR2
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

29

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 03139100

CLEVIS PIN

$

$

Not available

32

Ariens 08314500

SG-TORS .090X.37X.63

$14.99

$

In Stock, only 2 left!

0

$

$

Not available

35

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 20+

0

37

Ariens 06509500

NUT-CROWN .312-18 PL
(Superseded to 06530800)

$5.99

$

Usually ships in 4-12 days

0

38

Ariens 06410800

WSHR-FL-STL .781X1.250X.059 PL
(Superseded to 06416700)

$

$

Not available
