831003 - Ariens 48" Sno-Thro Attachment (SN: 000101 & Above) ST Drive Assembly Parts Diagram

48" Sno-Thro Attachment

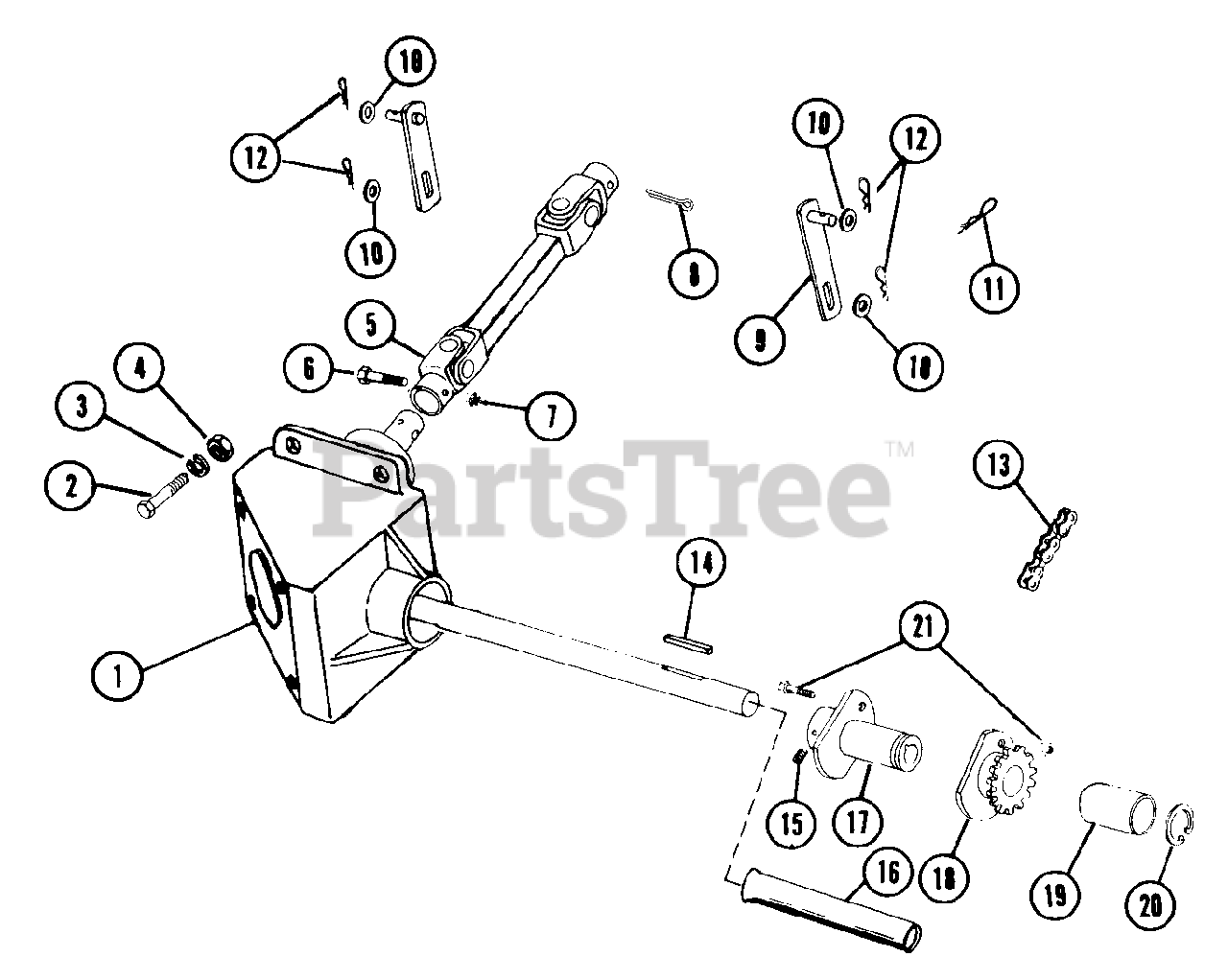

ST Drive Assembly Parts Diagram

  • Title

1

Ariens 63105000

SNOW THROW GEARBOX ASSEMBLY

$

$

Not available

2

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 63104800

UNIVERSAL SHAFT ASSEMBLY
(Superseded to 53128300)

$

$

Not available

6

Ariens 05916200

BLT-HEX .25-20X2.00 PL GR5
(Superseded to 05967100)

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06703000

PIN-HAIR INT .18X1.18X3.25 PL
(Superseded to 53126000)

$14.99

$

In Stock, only 1 left!

0

9

Ariens 03137200

LIFT STRAP

$

$

Not available

10

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

12

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 02925000

CHAIN

$

$

Not available

14

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

15

Ariens 06000400

SET SCREW
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

16

Ariens 03137100

PTO SHIELD

$

$

Not available

17

Ariens 03137400

SHEAR HUB

$

$

Not available

18

Ariens 03137300

SPROCKET

$

$

Not available

19

Ariens 05519700

BSHG-FLG .280X1.870X.750 NY

$

$

Not available

20

Ariens 05706400

RG-RTNG-EXT 1.125X.050

$

$

Not available

21

Ariens 53102500

SHEARBOLT & NUT ASSEMBLY
(Superseded to 53108100)

$4.99

$

In Stock, Qty 20+

0
