831002 - Ariens 48" Mower Deck (SN: 000101 & Above) Mower Pan 48" S/N 000101-004299 Parts Diagram

48" Mower Deck

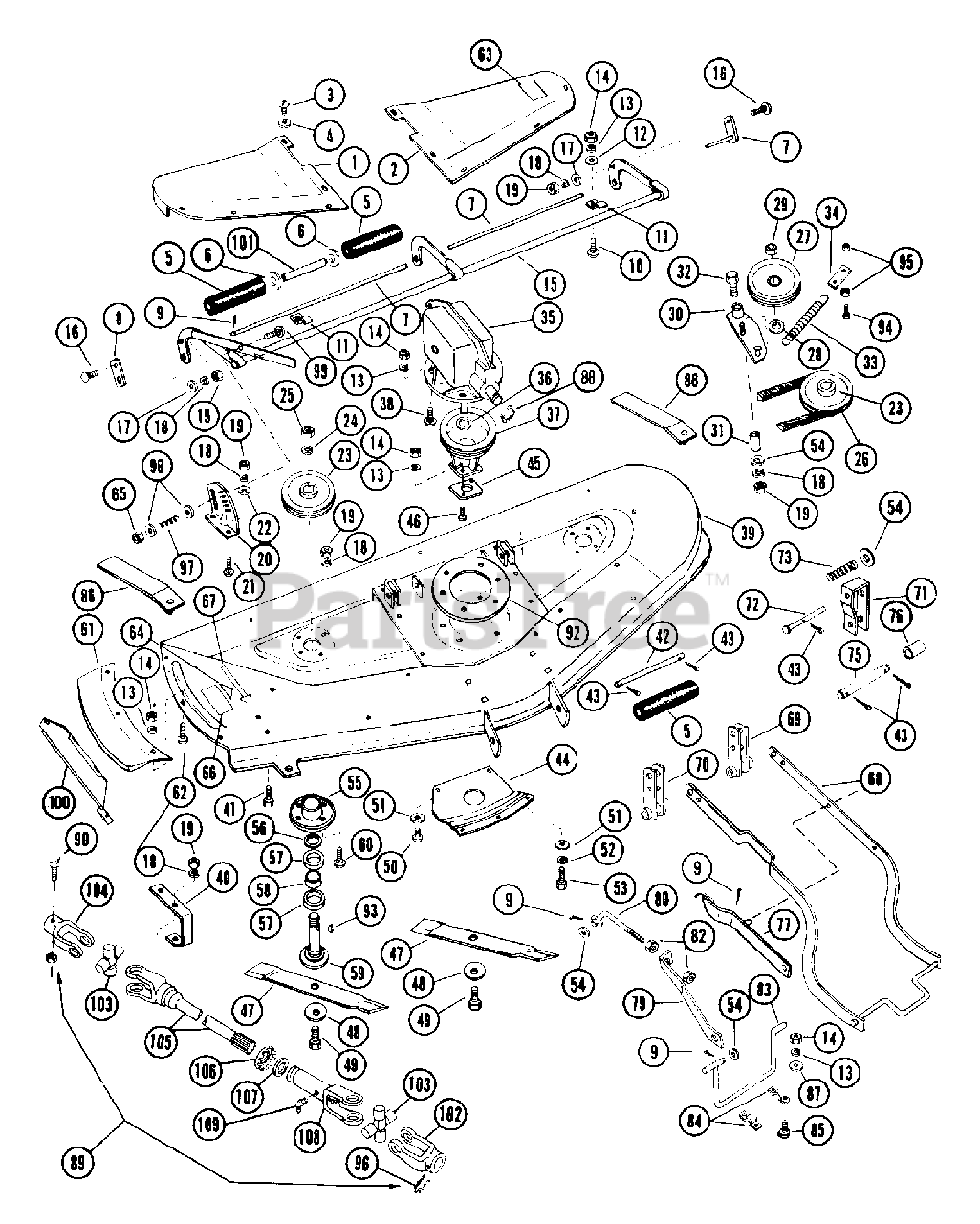

Mower Pan 48" S/N 000101-004299 Parts Diagram

  • Title

1

Ariens 03122800

R.H. SHIELD

$

$

Not available

2

Ariens 53102100

SHIELD ASSEMBLY

$

$

Not available

3

Ariens 07404600

SCR-TAP .250-20X.50 HH F

$2.99

$

In Stock, only 1 left!

0

4

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03114100

ROLLER

$22.99

$

In Stock, Qty 20+

0

6

Ariens 06401100

WSHR-FL-STL .688X1.750X.134
(Superseded to 06442900)

$1.49

$

In Stock, Qty 5

0

7

Ariens 03123800

ROLLER SHAFT

$91.99

$

Usually ships in 4-12 days

0

8

Ariens 03115600

LINK

$

$

Not available

9

Ariens 06702600

PIN-COTR .18X1.0 PL
(Superseded to 06712000)

$1.99

$

In Stock, only 2 left!

0

10

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03124100

TAB

$

$

Not available

12

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

15

Ariens 03123600

ROLLER ADJUSTMENT

$

$

Not available

16

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 03128800

HEIGHT QUADRANT

$

$

Not available

21

Ariens 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

22

Ariens 06406900

WSHR-FL-STL .406X.812X.063 PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07305300

PLY-? 4.50X.75
(Superseded to 53114900)

$156.99

$

Usually ships in 4-12 days

0

24

Ariens 06302700

WSHR-LK-INT .750X.050 MED
(Superseded to 06310800)

$1.49

$

Usually ships in 4-12 days

0

25

Ariens 06501600

NUT-JAM .75-16 PL
(Superseded to 06539900)

$3.49

$

In Stock, only 2 left!

0

26

Ariens 07208100

V-BELT, HA-WRAPPED

$54.99

$

In Stock, only 2 left!

0

27

Ariens 07306100

IDLER-FLAT 4.25 X .50 SAL&CLK

$56.99

$

Usually ships in 4-12 days

0

28

Ariens 06413800

WSHR-FL-STL .531X.938X.104 PL

$4.49

$

In Stock, only 1 left!

0

29

Ariens 06509700

NUT-LK .50-13 PL
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

30

Ariens 03123000

IDLER ARM

$96.99

$

Usually ships in 4-12 days

0

31

Ariens 02907900

SPACER .394X.500X1.710

$

$

Not available

32

Ariens 05903500

BLT-HEX .38-16X2.50 PL GR2
(Superseded to 05958400)

$2.49

$

In Stock, Qty 20+

0

33

Ariens 08311700

SG-TENS .105X.812X3.88 WLD 15

$7.99

$

In Stock, only 1 left!

0

34

Ariens 03124000

PLATE

$11.99

$

In Stock, only 1 left!

0

35

Ariens 63101600

GEAR BOX ASSEMBLY-48IN DECK

$

$

Not available

36

Ariens 06409500

WSHR-FL-STL .781X1.500X.060

$

$

Not available

37

Ariens 03104200

SHEAVE

$

$

Not available

38

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

39

Ariens 53102200

DECK ASSEMBLY

$

$

Not available

40

Ariens 03123900

R.H. SKID

$22.30

$

Usually ships in 4-12 days

0

41

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

42

Ariens 03123200

PIN

$35.99

$

In Stock, only 1 left!

0

43

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

44

Ariens 03123300

SHIELD

$129.99

$

Usually ships in 4-12 days

0

45

Ariens 03123400

PLATE

$

$

Not available

46

Ariens 06104800

SCR-MCH .31-18X1.00 SLFL PL

$

$

Not available

47

Ariens 03123700

BLADE

$23.99

$

Usually ships in 4-12 days

0

48

Ariens 03119100

BELLEVILLE WASHER

$

$

Not available

49

Ariens 05915300

BLT-HEX .44-20X1.00 GR5
(Superseded to 05964500)

$

$

Not available

50

Ariens 07404600

SCR-TAP .250-20X.50 HH F

$2.99

$

In Stock, only 1 left!

0

51

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

52

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

53

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 03104400

FLANGED BEARING HOUSING

$

$

Not available

56

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, Qty 13

0

57

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

58

Ariens 03114400

SPACER .807X1.001X.445

$11.99

$

Usually ships in 4-12 days

0

59

Ariens 03123500

SPINDLE SHAFT
(Superseded to 53110500)

$313.99

$

Usually ships in 4-12 days

0

60

Ariens 06203500

BLT-RDHDSQNK .375-16X.75 PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

61

Ariens 03125500

CHUTE EXTENSION

$

$

Not available

62

Ariens 06104900

SCR-MCH .31-18X.62 SLTR PL

$

$

Not available

63

Ariens 07827100

DECAL CAUTION
(Superseded to 07729600)

$25.99

$

Usually ships in 4-12 days

0

64

Ariens 07822600

SAFETY LABEL

$

$

Not available

65

Ariens 06510100

NUT-LK .312-18 PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

66

Ariens 07826900

DECAL ROTATING PARTS
(Superseded to 07729600)

$25.99

$

Usually ships in 4-12 days

0

67

Ariens 07827000

DECAL CUTTING WIDTH
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

68

Ariens 03124200

MOWER HANGER

$

$

Not available

69

Ariens 03124700

ARM

$

$

Not available

70

Ariens 03122000

ARM

$

$

Not available

71

Ariens 03122600

SUPPORT CHANNEL
(Superseded to 03122651)

$

$

Not available

72

Ariens 03122700

PIN-CLEV .498X4.50 YWZC

$

$

Not available

73

Ariens 08313000

SG-COMP .62X.68X1.75

$17.99

$

Usually ships in 4-12 days

0

75

Ariens 03122100

PIN-CLEV .498X4.31 YWZC

$11.99

$

Usually ships in 4-12 days

0

76

Ariens 03121900

SPACER .516X.749X.938

$16.99

$

In Stock, only 1 left!

0

77

Ariens 03124300

ARM

$44.66

$

Usually ships in 4-12 days

0

79

Ariens 03124600

ARM

$

$

Not available

80

Ariens 03124400

ADJUSTING ROD

$

$

Not available

82

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

83

Ariens 03124500

SUPPORT SHAFT

$

$

Not available

84

Ariens 03122400

STRAP

$12.99

$

Usually ships in 4-12 days

0

85

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

86

Ariens 03121800

RAMP
(Superseded to 03038000)

$

$

Not available

87

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

88

Ariens 05704900

RG-RTNG-EXT .750X.078
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

89

Ariens 63101400

P.T.O. SHAFT ASSEMBLY
(Superseded to 03093300)

$517.99

$

Usually ships in 4-12 days

0

90

Ariens 53102600

SHEARBOLT & NUT ASSEMBLY

$13.99

$

In Stock, only 1 left!

0

92

Ariens 03121400

SHIM

$15.99

$

Usually ships in 4-12 days

0

93

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 11

0

94

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

95

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

96

Ariens 06703000

PIN-HAIR INT .18X1.18X3.25 PL
(Superseded to 53126000)

$14.99

$

In Stock, only 1 left!

0

97

Ariens 08313100

SG-COMP .063X.53X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 6

0

98

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

99

Ariens 06203600

BLT-RDHDSQNK .31-18X1.75 PL
(Superseded to 06220200)

$2.99

$

In Stock, only 4 left!

0

100

Ariens 73100200

LEAF MULCHER 48 IN - GT

Note: (KIT ONLY)

$

$

Not available

101

Ariens 03156400

SPACER .726X.875X6.375

$

$

Not available

102

Ariens 03155900

YOKE

$258.99

$

Usually ships in 4-12 days

0

103

Ariens 03155800

JOURNAL CROSS & BEARING ASSEMB

$

$

Not available

104

Ariens 03155700

YOKE

$168.99

$

Usually ships in 4-12 days

0

105

Ariens 03156300

YOKE & SHAFT

$

$

Not available

106

Ariens 03156100

RETAINER CAP

$

$

Not available

107

Ariens 03156200

GREASE SEAL

$

$

Not available

108

Ariens 03156000

YOKE

$

$

Not available

109

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available
