831002 - Ariens 48" Mower Deck (SN: 000101 & Above) Gear Box 48" S/N 004300 And Up Parts Diagram

48" Mower Deck

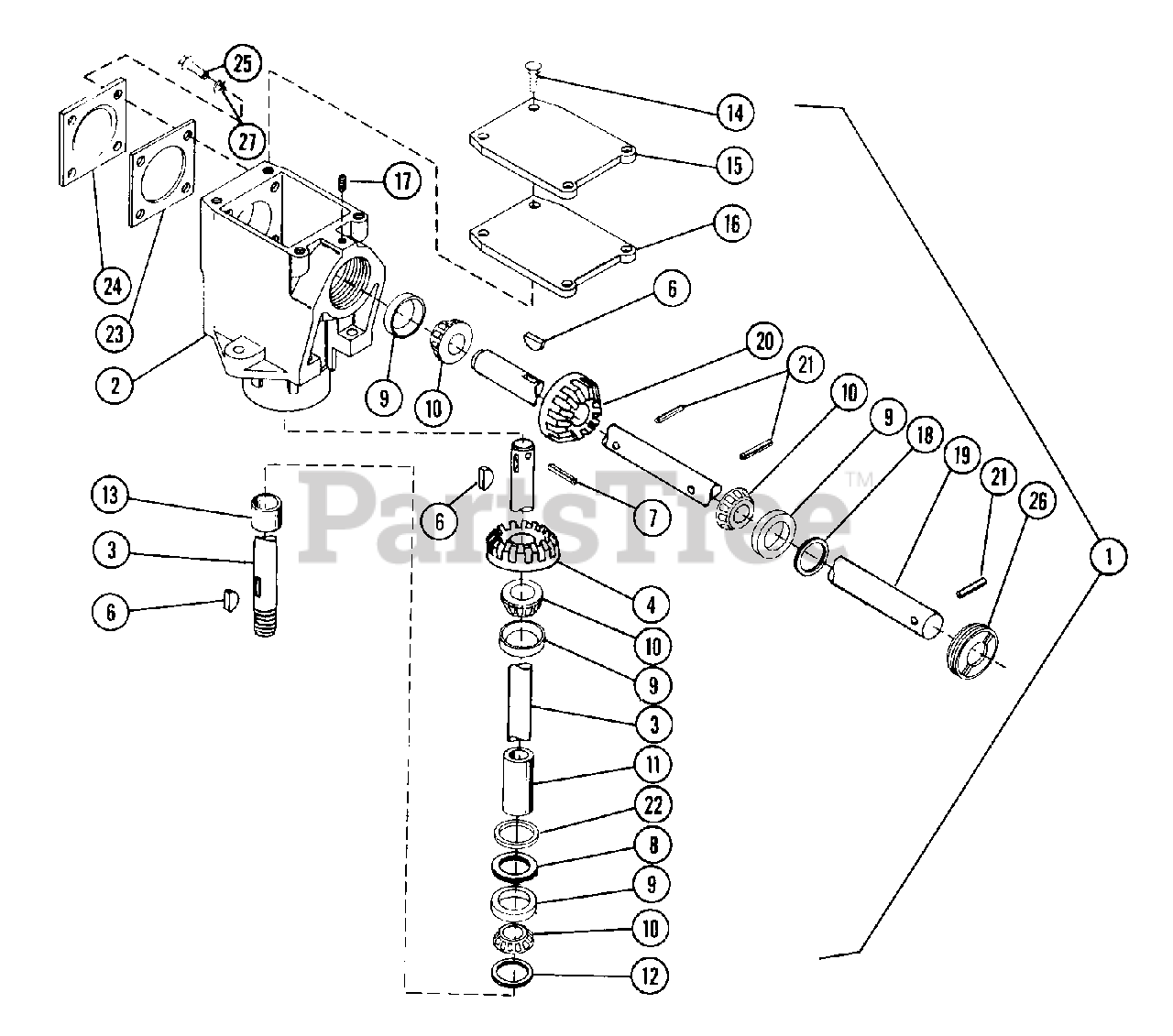

Gear Box 48" S/N 004300 And Up Parts Diagram

  • Title

1

Ariens 63112300

MOWER GEAR CASE 48 IN
(Superseded to 53121200)

$

$

Not available

2

Ariens 03183000

GEAR CASE

$270.99

$

In Stock, only 1 left!

0

3

Ariens 03184100

OUTPUT SHAFT
(Superseded to 53108700)

$

$

Not available

4

Ariens 03182900

GEAR - BEVEL

$

$

Not available

6

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

7

Ariens 05804900

@PIN-GRV .188X1.25 TP E ALLOY

$6.99

$

In Stock, only 1 left!

0

8

Ariens 53106400

LOAD RING KIT
(Superseded to 53108700)

$

$

Not available

9

Ariens 05404400

BRG-CUP 1.781X.475

$10.99

$

In Stock, Qty 20+

0

10

Ariens 05404500

BRG-CONE .750X.61

$23.99

$

In Stock, Qty 9

0

11

Ariens 03184700

BEARING SPACER
(Superseded to 53108700)

$

$

Not available

12

Ariens 05606600

SEAL 1.000X1.980X.375

$15.99

$

In Stock, only 2 left!

0

13

Ariens 03184800

SPACER
(Superseded to 53108700)

$

$

Not available

14

Ariens 07402000

SCR-TAP 8-32X.50 HWH PL TR
(Superseded to 07415600)

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 03183100

COVER, GEAR CASE

$

$

Not available

16

Ariens 03183500

TOP GASKET

$4.99

$

In Stock, only 2 left!

0

17

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 05606200

SEAL .750X1.499X.225

$6.99

$

Usually ships in 4-12 days

0

19

Ariens 03184000

SHAFT, INPUT

$110.99

$

Usually ships in 4-12 days

0

20

Ariens 03182900

GEAR - BEVEL

$

$

Not available

21

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

22

Ariens 06416500

WSHR-FL-STL 1.406X1.750X.059PL

$17.99

$

Usually ships in 4-12 days

0

23

Ariens 03183400

SIDE COVER GASKET
(Superseded to 53108400)

$44.99

$

Usually ships in 4-12 days

0

24

Ariens 03183200

BEARING SIDE COVER

$64.99

$

Usually ships in 4-12 days

0

25

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

26

Ariens 01037100

ADJUSTMENT PLUG

$77.99

$

Usually ships in 4-12 days

0

27

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0
