831 LS (246-638-100) - Cub Cadet Log Splitter Engine (1996) Engine Internal And Air Cleaner Assembly Parts Diagram

Log Splitter Engine

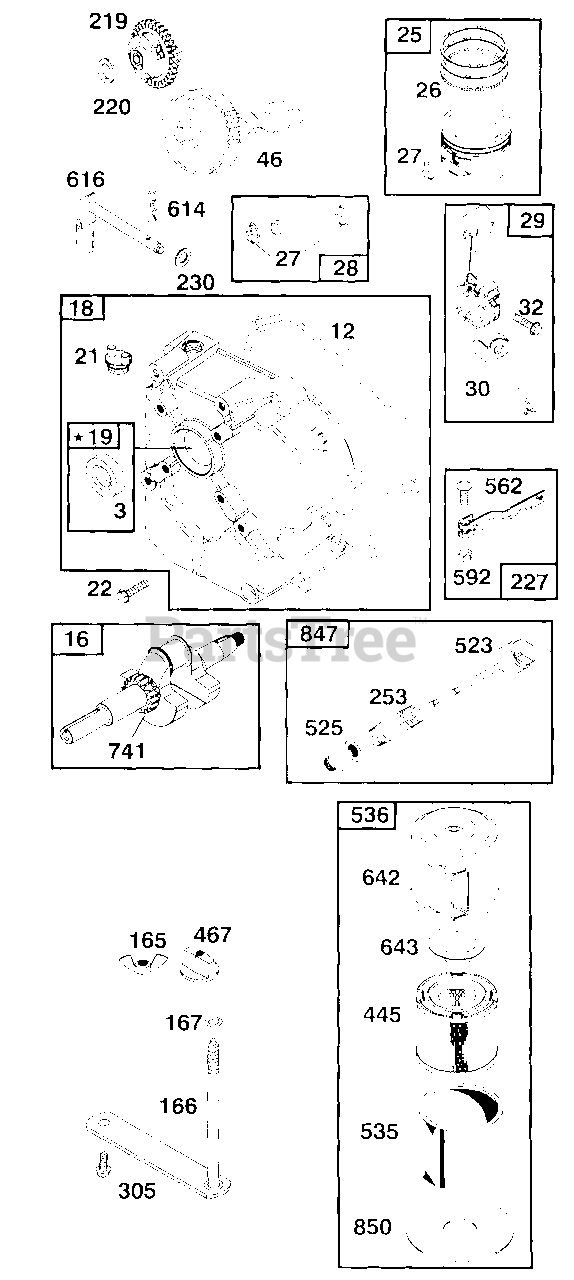

Engine Internal And Air Cleaner Assembly Parts Diagram

  • Title

3

Cub Cadet BS-391086

Seal-Oil
(Superseded to BS-391086S)

Note: Included in Gasket Set - Part No. BS-299577.

$6.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-271701

Gasket-Crankcase (.015" Thick, Std.)
(Superseded to BS-692221)

Note: Included in Gasket Set - Part No. BS-299577.

$8.99

$

In Stock, Qty 6

0

Cub Cadet BS-27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set - Part No. BS-299577.

$

$

Not available

Cub Cadet BS-27877

Gasket-Crankcase (.009" Thick)

Note: Included in Gasket Set - Part No. BS-299577.

$10.99

$

In Stock, only 3 left!

0

16

Cub Cadet BS-494884

Crankshaft

Note: Note: To Replace Timing Gear Key Order Part No. BS-94388.

$

$

Currently unavailable

18

Cub Cadet BS-299175

Cover Assy.-Crkcse.

$

$

Not available

19

Cub Cadet BS-295964

Bushing-Crankcase Cover

$35.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-66768

Plug-Oil Fill
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-93585

Screw-Cover Mtg.

$

$

Not available

Cub Cadet BS-94690

Screw-Cover Mtg.

Note: Note: Used in No. 1 Position.

$

$

Currently unavailable

25

Cub Cadet BS-393868

Piston Assy. (Std.)

$

$

Not available

Cub Cadet BS-393869

Piston Assembly (.010" O.S.)

$

$

Not available

Cub Cadet BS-393879

Piston Assembly (.020" O.S.)

$

$

Currently unavailable

Cub Cadet BS-393880

Piston Assembly (.030" O.S.)

$

$

Currently unavailable

26

Cub Cadet BS-393881

Ring Set-Piston Std.

$

$

Not available

Cub Cadet BS-399882

Ring Set-Piston (.010" O.S.)

$

$

Currently unavailable

Cub Cadet BS-393883

Ring Set-Piston (.020" O.S.)

$

$

Currently unavailable

Cub Cadet BS-393884

Ring Set-Piston (.030" O.S.)

$

$

Currently unavailable

27

Cub Cadet BS-68546

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-295840

Pin Assy.-Piston (Standard)

$

$

Not available

29

Cub Cadet BS-5841

Pin Assy.-Piston (.005" O.S.)

$

$

Currently unavailable

29

Cub Cadet BS-390401

Rod Assy.-Connecting

Note: Note: For Conn. Rod With .020" Undersize Crankpin Bore Order No. BS-390773.

$

$

Not available

30

Cub Cadet BS-222113

Dipper-Conn. Rod

$

$

Not available

32

Cub Cadet BS-92659

Screw-Conn. Rod

$

$

Currently unavailable

46

Cub Cadet BS-211689

Gear-Cam

$

$

Not available

165

Cub Cadet BS-94289

Nut-Wing

$

$

Not available

166

Cub Cadet BS-392105

Stud-Air Cleaner

$25.99

$

Usually ships in 2-12 days

0

167

Cub Cadet BS-65978

Seal-O-Ring

$5.99

$

In Stock, only 3 left!

0

219

Cub Cadet BS-494845

Gear-Governor

$

$

Not available

220

Cub Cadet BS-221551

Washer-Thrust
(Superseded to BS-691724)

$5.49

$

In Stock, only 2 left!

0

227

Cub Cadet BS-391965

Lever Assy.-Governor

$

$

Not available

230

Cub Cadet BS-94742

Washer
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

253

Cub Cadet BS-91258

Nipple-Pipe

$

$

Currently unavailable

305

Cub Cadet BS-94786

Screw-Hex.
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 11

0

445

Cub Cadet BS-393957

Filter-Air
(Superseded to BS-393957S)

$19.99

$

In Stock, only 1 left!

0

467

Cub Cadet BS-493903

Knob
(Superseded to BS-691668)

$5.49

$

In Stock, only 1 left!

0

523

Cub Cadet BS-297357

Cap-Oil Fill

$

$

Currently unavailable

525

Cub Cadet BS-394884

Tube-Oil Fill

$

$

Currently unavailable

535

Cub Cadet BS-271794

Filter-Air
(Superseded to BS-271794S)

$4.99

$

In Stock, Qty 7

0

536

Cub Cadet BS-399810

Cleaner-Air

$

$

Currently unavailable

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex.

$

$

Not available

614

Cub Cadet BS-93306

Pin-Cotter

$

$

Not available

616

Cub Cadet BS-495241

Crank-Governor

$

$

Not available

642

Cub Cadet BS-398462

Cover-Air Cleaner

$

$

Currently unavailable

643

Cub Cadet BS-224484

Retainer-Air Filter

$

$

Currently unavailable

741

Cub Cadet BS-263025

Gear-Timing
(Superseded to BS-691288)

$21.99

$

Usually ships in 2-12 days

0

847

Cub Cadet BS-493955

Tube Assembly-Oil

$

$

Currently unavailable

850

Cub Cadet BS-271793

Seal Base

$

$

Currently unavailable

Cub Cadet BS-94388

Timing Gear Key
(Superseded to BS-690979)

$3.49

$

In Stock, Qty 7

0

Cub Cadet BS-390773

Connecting Rod

$103.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-299577

Gasket Set

Note: Includes items 3 & 12
