831 LS (246-638-100) - Cub Cadet Log Splitter Engine (1996) Cylinder Assembly, Exhaust And Throttle Components Parts Diagram

Log Splitter Engine

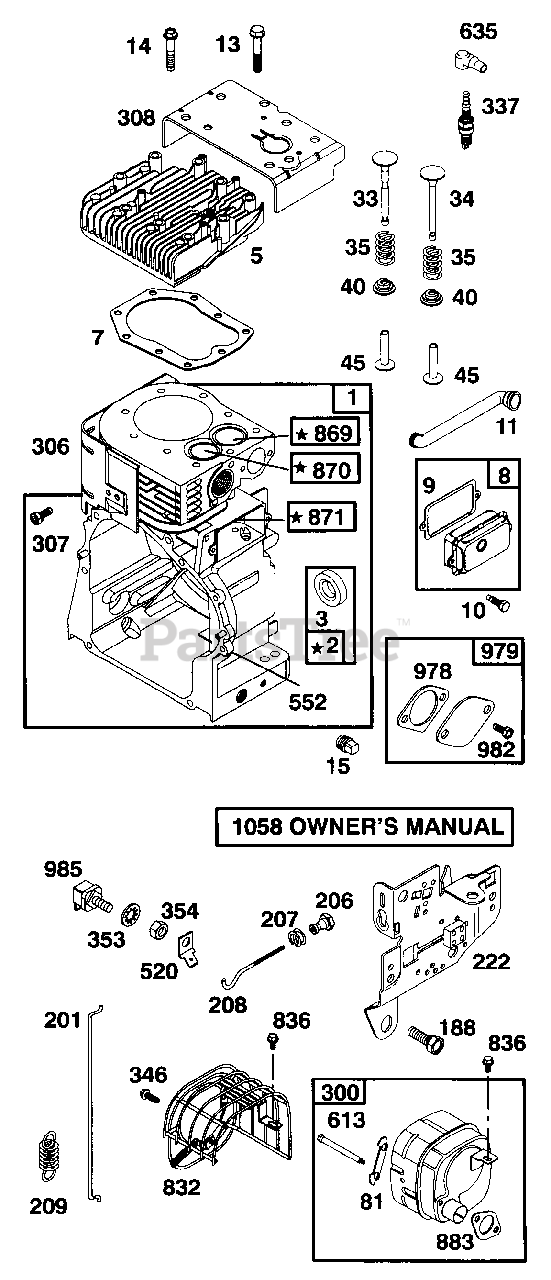

Cylinder Assembly, Exhaust And Throttle Components Parts Diagram

  • Title

1

Cub Cadet BS-495656

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-495657

Bushing

$

$

Not available

3

Cub Cadet BS-391086

Seal-Oil
(Superseded to BS-391086S)

Note: Included in Gasket Set

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-214015

Head-Cylinder
(Superseded to BS-691715)

$95.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-272163

Gasket-Cylinder Head
(Superseded to BS-272163S)

Note: Included in Gasket Set

$7.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-495724

Breather Assy.

$122.99

$

In Stock, only 2 left!

0

9

Cub Cadet BS-27803

Gasket-Breather
(Superseded to BS-27803S)

Note: Included in Gasket Set

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-94621

Screw-Breather Mtg.
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-280267

Tube-Breather

$12.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-94565

Screw-Cylinder Head (3-9/16" Long)
(Superseded to BS-592244)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-93723

Screw-Cylinder Head (3" Long)

$

$

Not available

15

Cub Cadet BS-94239

Plug-Pipe
(Superseded to BS-690946)

Note: (Located on Carb. Side of Engine); Note: BS-94720 Plug-Pipe (Located on Side of Engine Opposite Carb.)

$5.99

$

In Stock, Qty 14

0

33

Cub Cadet BS-263017

Valve-Exhaust

$

$

Currently unavailable

34

Cub Cadet BS-261055

Valve-Intake
(Superseded to BS-261055S)

$32.99

$

In Stock, only 2 left!

0

35

Cub Cadet BS-65906

Spring-Valve

$

$

Not available

40

Cub Cadet BS-221596

Retainer-Valve Spring
(Superseded to BS-690656)

$

$

Not available

45

Cub Cadet BS-260933

Tappet-Valve

$

$

Not available

81

Cub Cadet BS-222263

Lock-Screw

$

$

Not available

188

Cub Cadet BS-94627

Screw-Hex.

$

$

Not available

201

Cub Cadet BS-260872

Link-Governor

$

$

Not available

206

Cub Cadet BS-231266

Nut-Control Rod
(Superseded to BS-691771)

$37.99

$

Usually ships in 2-12 days

0

207

Cub Cadet BS-26855

Spring-Control Rod

$

$

Not available

208

Cub Cadet BS-261959

Rod-Control

$4.49

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-260695

Spring-Governor
(Superseded to BS-796260)

$4.99

$

In Stock, Qty 15

0

222

Cub Cadet BS-399151

Bracket-Control

$

$

Not available

300

Cub Cadet BS-391313

Muffler-Exhaust
(Superseded to BS-692304)

$34.99

$

In Stock, only 4 left!

0

306

Cub Cadet BS-496797

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Cub Cadet BS-94386

Screw-Cylinder Shield

$

$

Not available

308

Cub Cadet BS-224896

Cover-Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark

$3.49

$

In Stock, Qty 17

0

346

Cub Cadet BS-93705

Screw-Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

353

Cub Cadet BS-92791

Washer-Lock
(Superseded to BS-691077)

$3.49

$

In Stock, only 2 left!

0

354

Cub Cadet BS-90576

Nut-Hex.
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

520

Cub Cadet BS-93722

Terminal
(Superseded to BS-691084)

$6.49

$

In Stock, only 2 left!

0

552

Cub Cadet BS-491893

Bushing-Gov. Crank

$

$

Currently unavailable

613

Cub Cadet BS-94042

Screw-Shoulder

$

$

Not available

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 11

0

832

Cub Cadet BS-492337

Guard-Muffler

$

$

Currently unavailable

836

Cub Cadet BS-94729

Screw-Sem

$

$

Not available

869

Cub Cadet BS-211661

Seat-Int. Valve (Std.)

$

$

Not available

870

Cub Cadet BS-213316

Seat-Ex. Valve (Std.)
(Superseded to BS-691844)

$18.99

$

In Stock, only 1 left!

0

871

Cub Cadet BS-231218

Guide-Valve

$14.99

$

In Stock, Qty 7

0

883

Cub Cadet BS-272309

Gasket-Exhaust
(Superseded to BS-692237)

Note: Included in Gasket Set

$5.49

$

In Stock, only 3 left!

0

978

Cub Cadet BS-271736

Gasket-Pump Cover

Note: Included in Gasket Set

$

$

Not available

979

Cub Cadet BS-494807

Cover-OIL GARD

$

$

Not available

982

Cub Cadet BS-94658

Screw-Hex.

$

$

Not available

985

Cub Cadet BS-398525

Insulator
(Superseded to BS-691972)

$8.49

$

In Stock, only 3 left!

0

1058

Cub Cadet BS-270367

Owner's Manual

$

$

Currently unavailable

Cub Cadet BS-94720

Plug Pipe
(Superseded to BS-691680)

$5.99

$

In Stock, only 1 left!

0

Cub Cadet BS-299577

Gasket Set

Note: Includes items 3, 7, 9, 883 & 978

$35.99

$

In Stock, Qty 11

0
