831 LS (245-638-100) - Cub Cadet Log Splitter Engine (1995) Carburetor Assembly And Fuel Tank Parts Diagram

Log Splitter Engine

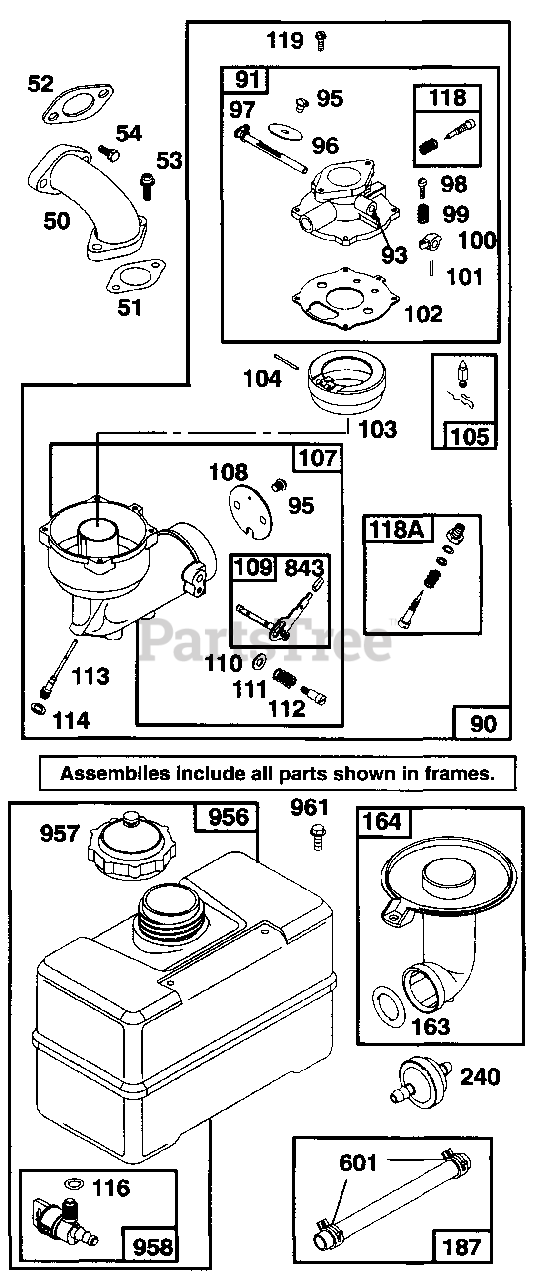

Carburetor Assembly And Fuel Tank Parts Diagram

  • Title

50

Cub Cadet BS-213099

Manifold-Intake

$

$

Currently unavailable

51

Cub Cadet BS-270684

Gasket-Intake

Note: Included In Gasket Set, P/N BS-299577 ; Included In Carburetor Overhaul Kit, P/N BS-398235

$4.99

$

In Stock, Qty 8

0

52

Cub Cadet BS-27828

Gasket-Intake
(Superseded to BS-27828S)

Note: Included In Gasket Set, P/N BS-299577

$4.99

$

In Stock, Qty 5

0

53

Cub Cadet BS-93956

Screw-Hex.

$

$

Not available

54

Cub Cadet BS-93208

Screw-Hex.

$8.49

$

In Stock, only 3 left!

0

90

Cub Cadet BS-390323

Carburetor Assembly

$

$

Not available

91

Cub Cadet BS-399443

Body Assembly-Upper

$128.99

$

Usually ships in 2-12 days

0

93

Cub Cadet BS-23108

Bushing

$

$

Not available

95

Cub Cadet BS-93499

Screw-Throttle Valve to Shaft
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet BS-223370

Throttle-Carburetor

$

$

Currently unavailable

97

Cub Cadet BS-298826

Shaft and Lever-Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-91920

Screw-Slotted

$

$

Currently unavailable

99

Cub Cadet BS-26157

Spring-Idle Valve
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

100

Cub Cadet BS-212904

Stop-Throttle

$

$

Not available

101

Cub Cadet BS-93043

Pin-Throttle Lever

$

$

Not available

102

Cub Cadet BS-27918

Gasket-Carb. Body

Note: Included In Carburetor Overhaul Kit, P/N BS-398235

$4.49

$

In Stock, Qty 12

0

103

Cub Cadet BS-99333

Float-Carburetor

$13.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-230896

Pin-Float Hinge

Note: Included In Carburetor Overhaul Kit, P/N BS-398235

$

$

Not available

105

Cub Cadet BS-394681

Valve-Needle

Note: Included In Carburetor Overhaul Kit, P/N BS-398235

$7.99

$

In Stock, only 3 left!

0

107

Cub Cadet BS-399442

Body Assembly-Lower

$128.99

$

Usually ships in 2-12 days

0

108

Cub Cadet BS-62872

Valve-Choke

$

$

Currently unavailable

109

Cub Cadet BS-391987

Shaft-Choke

$9.99

$

Usually ships in 2-12 days

0

110

Cub Cadet BS-222712

Washer

$

$

Currently unavailable

111

Cub Cadet BS-26155

Spring

$

$

Not available

112

Cub Cadet BS-23123

Screw-Choke Lever

$

$

Currently unavailable

113

Cub Cadet BS-398202

Nozzle-Carburetor

Note: Included In Carburetor Overhaul Kit, P/N BS-398235

$29.99

$

In Stock, only 2 left!

0

114

Cub Cadet BS-68667

Gasket

Note: Included In Carburetor Overhaul Kit, P/N BS-398235

$

$

Currently unavailable

118

Cub Cadet BS-292681

Valve-Needle

Note: Included In Carburetor Overhaul Kit, P/N BS-398235

$11.99

$

In Stock, only 1 left!

0

118A

Cub Cadet BS-99525

Valve-Needle
(Superseded to BS-99525S)

Note: Includes Following Parts: ; Included In Carburetor Overhaul Kit, P/N BS-398235

$12.99

$

In Stock, only 1 left!

0

Cub Cadet BS-22235

Washer-Brass

$

$

Not available

Cub Cadet BS-26336

Spring

$

$

Not available

Cub Cadet BS-65978

O-Ring

$5.99

$

In Stock, only 3 left!

0

Cub Cadet BS-394033

Valve-Needle

$5.49

$

Usually ships in 2-12 days

0

119

Cub Cadet BS-94616

Screw-Hex.
(Superseded to BS-690953)

$5.99

$

Usually ships in 2-12 days

0

843

Cub Cadet BS-280149

Sleeve-Lever
(Superseded to BS-691895)

$4.99

$

In Stock, only 1 left!

0

116

Cub Cadet BS-280203

Seal-0-Ring

$

$

Not available

163

Cub Cadet BS-271265

Seal-0-Ring

$5.99

$

In Stock, Qty 8

0

164

Cub Cadet BS-398592

Pipe Assembly-Air Cleaner

$45.99

$

In Stock, only 3 left!

0

187

Cub Cadet BS-296004

Line-Fuel (Cut to Required Length)
(Superseded to BS-791745)

$10.99

$

In Stock, Qty 20+

0

240

Cub Cadet BS-298090

Filter-Fuel
(Superseded to BS-298090S)

$

$

Not available

601

Cub Cadet BS-93053

Clamp-Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

956

Cub Cadet BS-493337

Tank Assembly-Fuel
(Superseded to BS-691993)

$166.99

$

In Stock, Qty 10

0

957

Cub Cadet BS-493988

Cap-Fuel Tank
(Superseded to BS-795027)

$10.99

$

In Stock, Qty 20+

0

958

Cub Cadet BS-399517

Valve-Shut-Off
(Superseded to BS-698182)

$

$

Not available

961

Cub Cadet BS-94095

Screw-Fuel Tank

$

$

Not available

Cub Cadet BS-299577

Gasket Set

Note: Includes Ref Nos 51 & 52

$35.99

$

In Stock, Qty 10

0

Cub Cadet BS-398235

Carburetor Overhaul Kit
(Superseded to BS-394693)

Note: Includes Ref Nos 51, 102, 104, 105, 113, 114, 118 & 118A

$31.99

$

In Stock, Qty 20+
