831 (590-831-100) - Cub Cadet Deck Lift Kit att General Assembly Parts Diagram

Deck Lift Kit

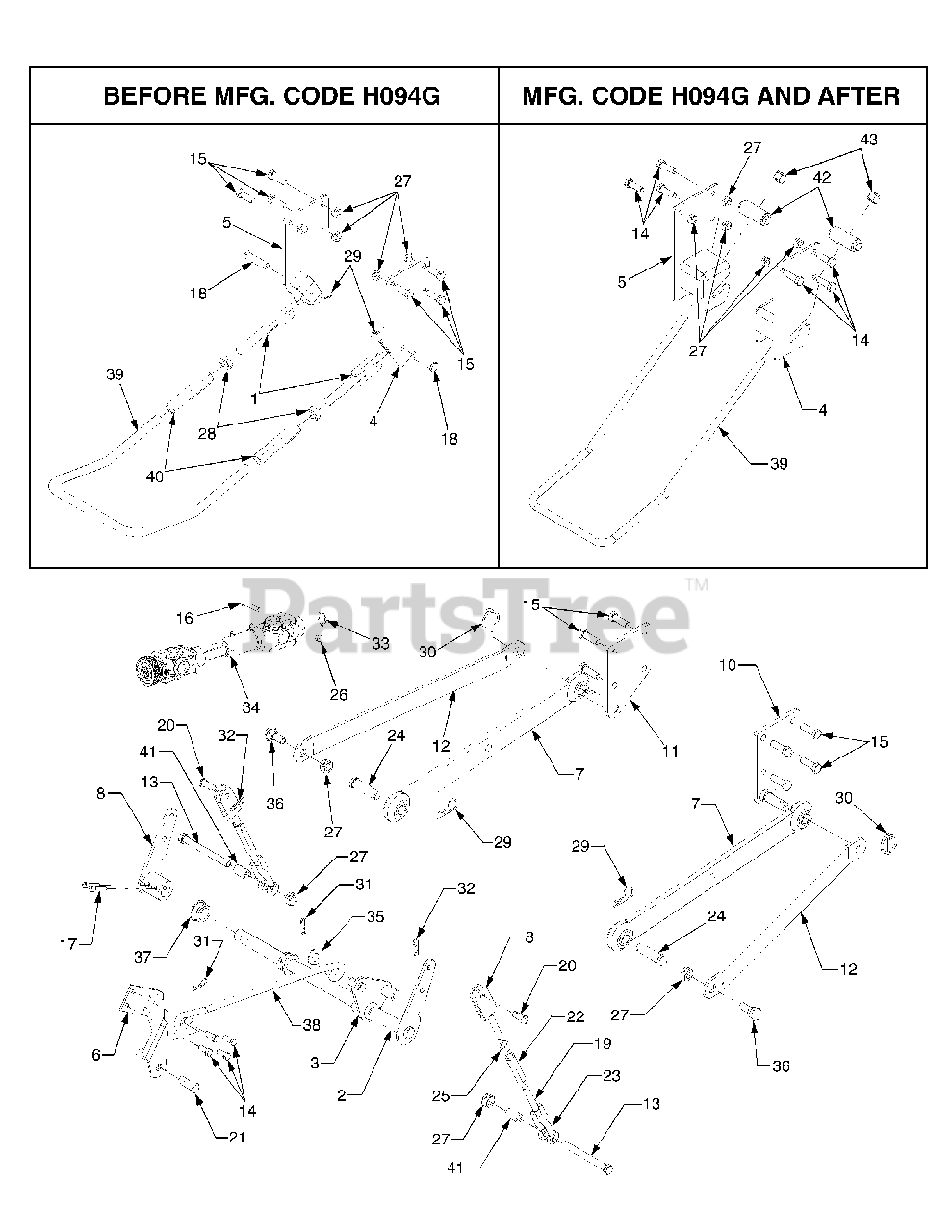

General Assembly Parts Diagram

  • Title

1

Cub Cadet 603-04023-0637

Rod End, Deck Hanger Before Mfg. Code H094G

$

$

Not available

2

Cub Cadet 603-0667A

Shaft, Lift

$

$

Not available

3

Cub Cadet 603-0838-0637

Crank, Deck Lift

$

$

Not available

4

Cub Cadet 603-0840-0637

Hanger, Front RH Before Mfg. Code H094G

$

$

Not available

4

Cub Cadet 603-0954-0637

Mount, Front Hanger RH Mfg. Code H094G and After

$

$

Not available

5

Cub Cadet 603-0841-0637

Hanger, Front LH Before Mfg. Code H094G

$

$

Not available

5

Cub Cadet 603-0953-0637

Mount, Front Hanger LH Mfg. Code H094G and After

$85.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-0844-0637

Lever, Deck Lift

$

$

Not available

7

Cub Cadet 603-0914-0637

Arm, Deck Lift

$

$

Not available

8

Cub Cadet 603-0926

Clevis, Adjustment

Variations

Cub Cadet 603-0926-0637

USE 603-0926 CLEVIS-ADJUSTMEN - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 603-0668A

Bracket, Lift

$

$

Not available

10

Cub Cadet 603-0912-0637

Plate, Mounting RH

$

$

Not available

11

Cub Cadet 603-0913-0637

Plate, Mounting LH

$

$

Not available

12

Cub Cadet 703-4017A

Arm, Fixed Lift

Variations

Cub Cadet 703-4017A-0637

STRAP-FIXED LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 710-0382

Screw, Hex Cap, 1/2-13 x 5.0 GR5

$12.99

$

In Stock, only 2 left!

0

14

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 x .88 GR5

$7.49

$

In Stock, Qty 9

0

15

Cub Cadet 710-3181

Screw, Hex Cap, 1/2-13 x 1.50 GR5

$6.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-3251

Screw, Socket Hex, 5/16-18 x

$5.99

$

In Stock, only 2 left!

0

17

Cub Cadet 710-3250

Screw, Socket Hd. 5/16-18 x 1.50

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 711-0299

Pin, Clevis, .625 x 2.4 Before Mfg. Code H094G

$36.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 711-1728A

Clevis, Chain
(Superseded to 911-1728A)

$45.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-0310

Pin, Clevis, .5 x 1.18

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 711-0654

Pin, Clevis

$16.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 711-1620

Shaft, Hex Check Chain

$

$

Not available

23

Cub Cadet 711-1622

Clevis, Check Chain

$

$

Not available

24

Cub Cadet 711-1643

Pin, Clevis, 3/4 x 2.50

$23.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-0206

Nut, Hex, 1/2-13 GR5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18 .

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 712-3022

Nut, Hex Lock, 1/2-23

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0301

Nut, Hex Jam, 3/4-10 GR5 Before Mfg. Code H094G

$7.99

$

In Stock, only 1 left!

0

29

Cub Cadet 714-0117

Pin, Internal Cotter (Before Mfg. Code H094G uses Qty. 4)

$4.49

$

In Stock, Qty 16

0

30

Cub Cadet 714-0143

Pin, Klik
(Superseded to 714-0143A)

$6.49

$

In Stock, only 4 left!

0

31

Cub Cadet 714-3020

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 714-0145

Pin, Internal Cotter

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 716-0111

Ring, Retaining

$6.99

$

In Stock, only 4 left!

0

34

Cub Cadet 717-3521A

Shaft, Drive

$943.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0100

Washer, Flat, .531 x .1.25

$6.99

$

In Stock, Qty 7

0

36

Cub Cadet 738-0744A

Screw, Shoulder, .625 x .36: 1/2-13

$11.99

$

In Stock, only 1 left!

0

37

Cub Cadet 741-0170

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

38

Cub Cadet 747-3455A

Rod, Crank Lift

$

$

Not available

39

Cub Cadet 747-3456

Rod, Deck Hanger Before Mfg. Code H094G

$

$

Not available

39

Cub Cadet 747-04309

Rod, Deck Hanger Mfg. Code H094G and After

$

$

Not available

40

Cub Cadet 747-3457

Turnbuckle, Hanger Rod Before Mfg. Code H094G

$125.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 750-0655

Spacer, .50 x .75 x 1.25

$10.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 711-1739

Pin, Deck Hanger Rod Mfg. Code H094G and After
(Superseded to 911-1739)

$

$

Not available

43

Cub Cadet 712-3016

Nut, Hex Insert Flange Lock, 5/8-11 GR5 Mfg. Code H094G and After

$6.99

$

In Stock, Qty 13

0
