830 Sprint (1690536) - AGCO Sprint Rear-Engine Riding Mower, 8hp Electrical Group - Electric Start (Later Models) Parts Diagram

Sprint Rear-Engine Riding Mower, 8hp

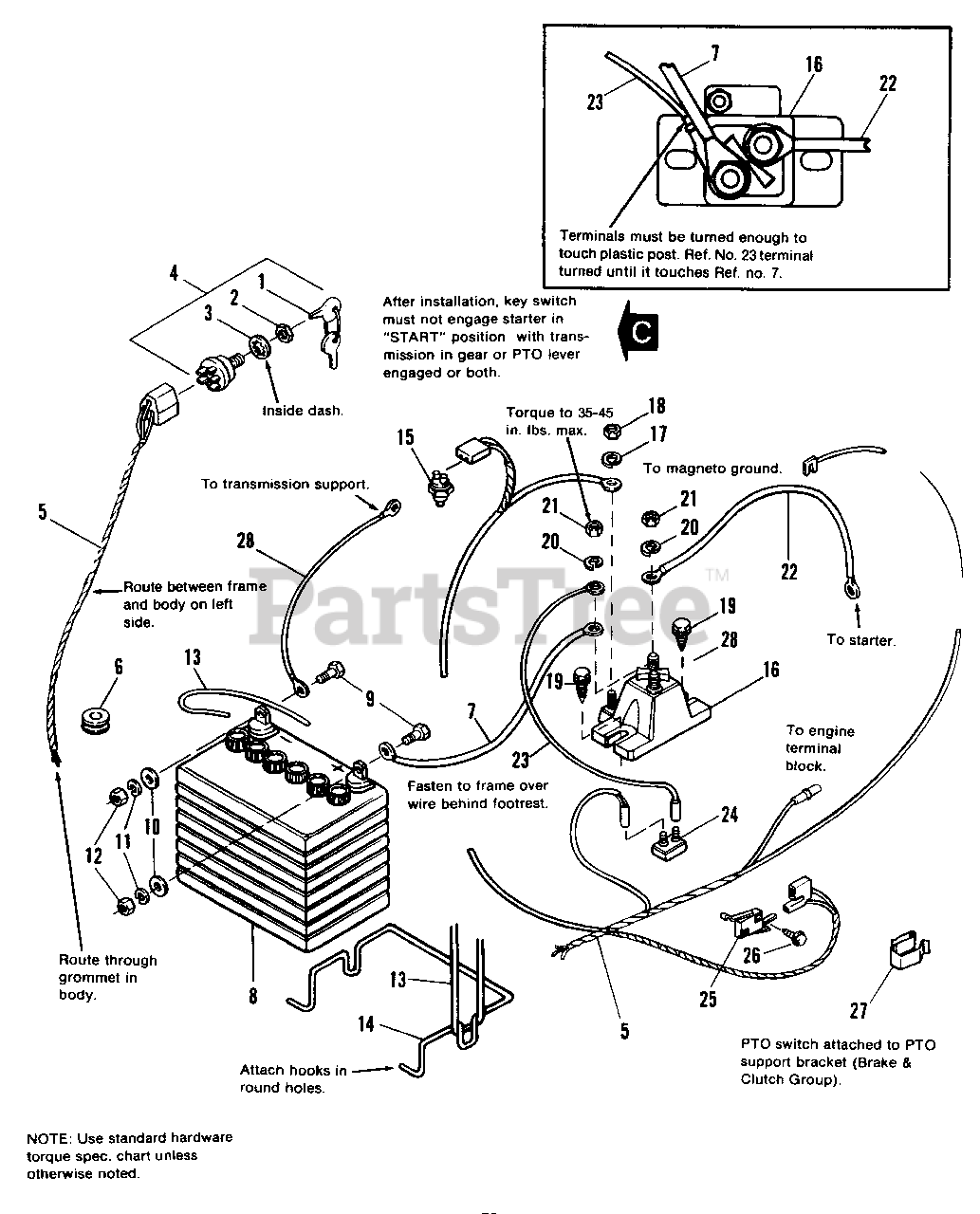

Electrical Group - Electric Start (Later Models) Parts Diagram

  • Title

1

Simplicity 1717163SM

KEY

$8.99

$

In Stock, Qty 20+

0

2

Simplicity 2122234SM

NUT
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

3

Simplicity 2818906

LOCKWASHER, Internal Tooth, 5/8

$

$

Not available

4

Simplicity 2178280SM

SWITCH, Key
(Superseded to 421064MA)

$32.99

$

In Stock, Qty 9

0

5

Simplicity 1664466

HARNESS ASSY.

$

$

Not available

6

Simplicity 2173420

GROMMET

$

$

Not available

7

Simplicity 1707056SM

CABLE ASSY. (Batt. to Solenoid)

$10.99

$

Usually ships in 2-12 days

0

8

Simplicity 1685215SM

BATTERY, 12 Volt

$

$

Not available

9

Simplicity 2823341SM

CAPSCREW, Hex, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

10

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

11

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

12

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1665872SM

STRAP, Battery

$11.99

$

In Stock, Qty 7

0

14

Simplicity 1667805SM

BRACE, Battery

$

$

Not available

15

Simplicity 1654634SM

SWITCH, Transmission Interlock

$46.99

$

Usually ships in 2-12 days

0

16

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

17

Simplicity 2822711

LOCKWASHER, #10

$

$

Not available

18

Simplicity 2817415

NUT, Hex, Machine, #10-32

$

$

Not available

19

Simplicity 2825592SM

SCREW, Hex, Taptite, 1/4-20 x 3/4

$2.99

$

Usually ships in 2-12 days

0

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1917372SM

LOCKNUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1603618SM

CABLE ASSY. (Solenoid to Starter)

$11.99

$

In Stock, only 3 left!

0

23

Simplicity 1665237SM

WIRE ASSY.

$11.99

$

In Stock, Qty 7

0

24

Simplicity 1665238SM

BREAKER, Circuit

$14.99

$

In Stock, Qty 20+

0

25

Simplicity 1686951SM

SWITCH, P.T.O. Interlock

$

$

Not available

26

Simplicity 2835944

SCREW, Hex, Taptite, #50-40 x 3/4

$

$

Not available

27

Simplicity 2172434SM

CLIP, Tinnerman

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1671158SM

CABLE (Battery to Ground)

$10.99

$

Usually ships in 2-12 days

0
