830 - BCS America Two-Wheeled Tractor Steering Column (SN: 6664 & Above) Parts Diagram

Two-Wheeled Tractor

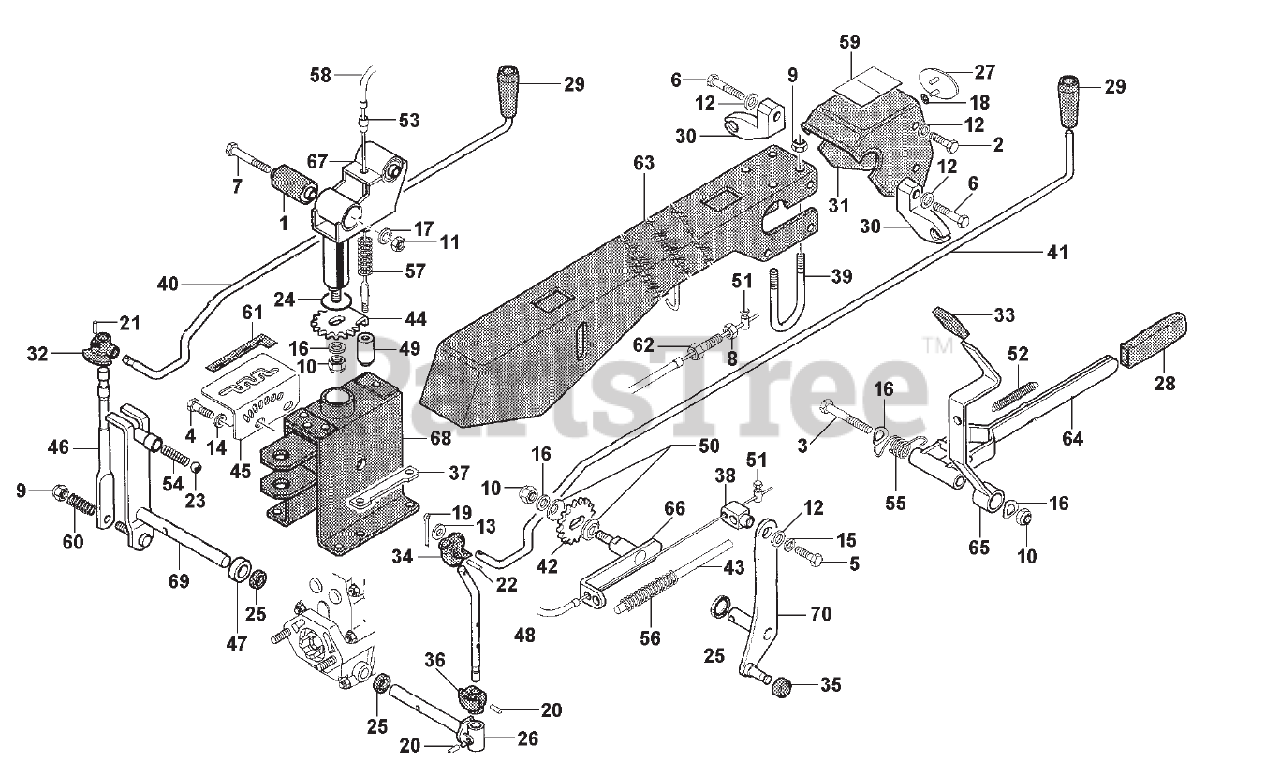

Steering Column (SN: 6664 & Above) Parts Diagram

  • Title

1

BCS America 300.10120

SILENTBLOCK

$35.99

$

In Stock, only 1 left!

0

2

BCS America 311.11151

SCREW,M8X16

$1.99

$

In Stock, only 4 left!

0

3

BCS America 311.11225

SCREW,M10X90

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12148

SCREW,M8X14

$1.49

$

In Stock, Qty 10

0

5

BCS America 311.12149

SCREW,M8X12

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 311.12153

SCREW,M8X35

$1.49

$

In Stock, only 2 left!

0

7

BCS America 311.12295

SCREW,M12X95

$2.49

$

Usually ships in 5-8 days

0

8

BCS America 312.11060

NUT,M6

$0.99

$

In Stock, Qty 8

0

9

BCS America 312.41080

NUT,SELF LOCKING, M8

$0.99

$

In Stock, Qty 11

0

10

BCS America 312.41101

NUT,SELF LOCKING, M10

$1.49

$

Usually ships in 5-8 days

0

11

BCS America 312.41121

NUT,SELF LOCKING, M12

$1.49

$

Usually ships in 5-8 days

0

12

BCS America 314.11084

WASHER,FLAT,M8.4

$0.99

$

In Stock, only 4 left!

0

13

BCS America 314.11104

WASHER

$0.99

$

In Stock, Qty 5

0

14

BCS America 314.21083

WASHER,M8.4

$1.49

$

In Stock, Qty 7

0

15

BCS America 314.23084

WASHER,LOCK, M8.4

$0.99

$

In Stock, Qty 10

0

16

BCS America 314.23105

WASHER,LOCK, M10.5

$1.49

$

In Stock, Qty 5

0

17

BCS America 314.23130

WASHER,LOCK, M13

$1.49

$

In Stock, only 3 left!

0

18

BCS America 314.40004

WASHER,LOCK FOR PINS

$0.99

$

In Stock, Qty 10

0

19

BCS America 341.10028

COTTERPIN

$0.99

$

In Stock, only 2 left!

0

20

BCS America 342.13020

LOCKINGPIN, M4X20 SPIRAL

$1.49

$

Usually ships in 5-8 days

0

21

BCS America 342.13022

PIN,LOCKING, M3X22 SPIRAL

$1.49

$

In Stock, only 3 left!

0

22

BCS America 342.13024

LOCKINGPIN, M4X24 SPIRAL

$1.49

$

Usually ships in 5-8 days

0

23

BCS America 379.11532

BALL 15/32 RIV RB-11.906

$1.49

$

In Stock, only 2 left!

0

24

BCS America 381.12817

O-RING,M28.17X3.53

$1.49

$

Usually ships in 5-8 days

0

25

BCS America 382.11400

OILSEAL, M14X22X4

$7.99

$

Usually ships in 5-8 days

0

26

BCS America 523.57250

PTOPIN

$132.99

$

Usually ships in 5-8 days

0

27

BCS America 530.48656

MARK OVAL

$10.99

$

Usually ships in 5-8 days

0

28

BCS America 551.02714

KNOB

$14.99

$

Usually ships in 5-8 days

0

29

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

30

BCS America 552.43340

SUPPORTCONTROL ROD CUT

$

$

Not available

31

BCS America 552.47636

STEERINGCOLUMN INTERM. PANEL

$32.99

$

Usually ships in 5-8 days

0

32

BCS America 552.47645

GEARBOXARTICULATION

$30.99

$

In Stock, only 2 left!

0

33

BCS America 552.48072

KNOBREDUCTION UNIT LEVER

$5.49

$

Usually ships in 5-8 days

0

34

BCS America 552.48379

PTOARTICULATION

$8.99

$

Usually ships in 5-8 days

0

35

BCS America 552.57313

PTOLOCKOUT RING

$6.49

$

Usually ships in 5-8 days

0

36

BCS America 552.57322

PTOSTOP RING

$13.99

$

Usually ships in 5-8 days

0

37

BCS America 561.47560

REVERSESPEED LEVER DOG

$9.99

$

Usually ships in 5-8 days

0

38

BCS America 561.47574

REVERSEBLOCK

$31.99

$

Usually ships in 5-8 days

0

39

BCS America 561.47641

HANDLEBARU-BOLT

$6.49

$

Usually ships in 5-8 days

0

40

BCS America 561.47646

GEARBOXCONTROL ROD

$52.99

$

In Stock, only 1 left!

0

41

BCS America 561.47648

PTOCONTROL ROD

$45.99

$

Usually ships in 5-8 days

0

42

BCS America 561.47664

REVERSEGEAR

$19.99

$

Usually ships in 5-8 days

0

43

BCS America 561.47672

GUIDEPIN

$10.99

$

Usually ships in 5-8 days

0

44

BCS America 561.47703

BENDEDREVERSER GEAR

$24.99

$

Usually ships in 5-8 days

0

45

BCS America 561.57239

GEARQUADRAINT

$33.99

$

Usually ships in 5-8 days

0

46

BCS America 561.57271

GEARLEVER

$36.99

$

Usually ships in 5-8 days

0

47

BCS America 561.57303

SPACER

$13.99

$

Usually ships in 5-8 days

0

48

BCS America 561.57324

PTOCONTROL LEVER

$48.99

$

In Stock, only 1 left!

0

49

BCS America 563.56924

PUSHROD

$32.99

$

Usually ships in 5-8 days

0

50

BCS America 571.48509

PROTECTIONEND D 32

$4.49

$

Usually ships in 5-8 days

0

51

BCS America 580.02429

CLAMP,CABLE

$5.99

$

In Stock, only 2 left!

0

52

BCS America 580.26321

SPRING

$57.99

$

Usually ships in 5-8 days

0

53

BCS America 580.42167

END,CABLE

$2.99

$

In Stock, only 2 left!

0

54

BCS America 580.43176

SPRING

$2.49

$

In Stock, only 1 left!

0

55

BCS America 580.47624

HANDLEBARRELEASE SPRING

$8.20

$

Usually ships in 5-8 days

0

56

BCS America 580.47671

REVERSERSPRING

$16.99

$

Usually ships in 5-8 days

0

57

BCS America 580.47701

PUSHROD SPRING

$8.99

$

Usually ships in 5-8 days

0

58

BCS America 580.47702

STEERINGCOLUMN CABLE

$23.99

$

Usually ships in 5-8 days

0

59

BCS America 580.47731

STEERINGCOLUMN STICKER

$8.99

$

In Stock, only 2 left!

0

60

BCS America 580.57232

SPRING

$2.49

$

Usually ships in 5-8 days

0

61

BCS America 580.57706

GEARDECAL

$11.99

$

In Stock, only 1 left!

0

62

BCS America 581.47704

ADJUSTINGSCREW

$9.49

$

Usually ships in 5-8 days

0

63

BCS America 590.47610

STEERINGCOLUMN

$294.99

$

Usually ships in 5-8 days

0

64

BCS America 590.47620

HANDLEBARRELEASE LEVER

$117.99

$

Usually ships in 5-8 days

0

65

BCS America 590.47625

STEERINGCOLUMN LOCKING LEVER

$57.99

$

Usually ships in 5-8 days

0

66

BCS America 590.47666

REVERSERPOSTION LEVER

$39.99

$

Usually ships in 5-8 days

0

67

BCS America 590.47688

STEERINGCOLUMN COUPLING

$

$

Currently unavailable

68

BCS America 590.56970

STEERINGCOLUMN SUPPORT

$

$

Currently unavailable

69

BCS America 590.57300

SPEEDSELECTOR LEVER

$96.99

$

Usually ships in 5-8 days

0

70

BCS America 590.57315

REVERSERLEVER

$52.99

$

Usually ships in 5-8 days

0
