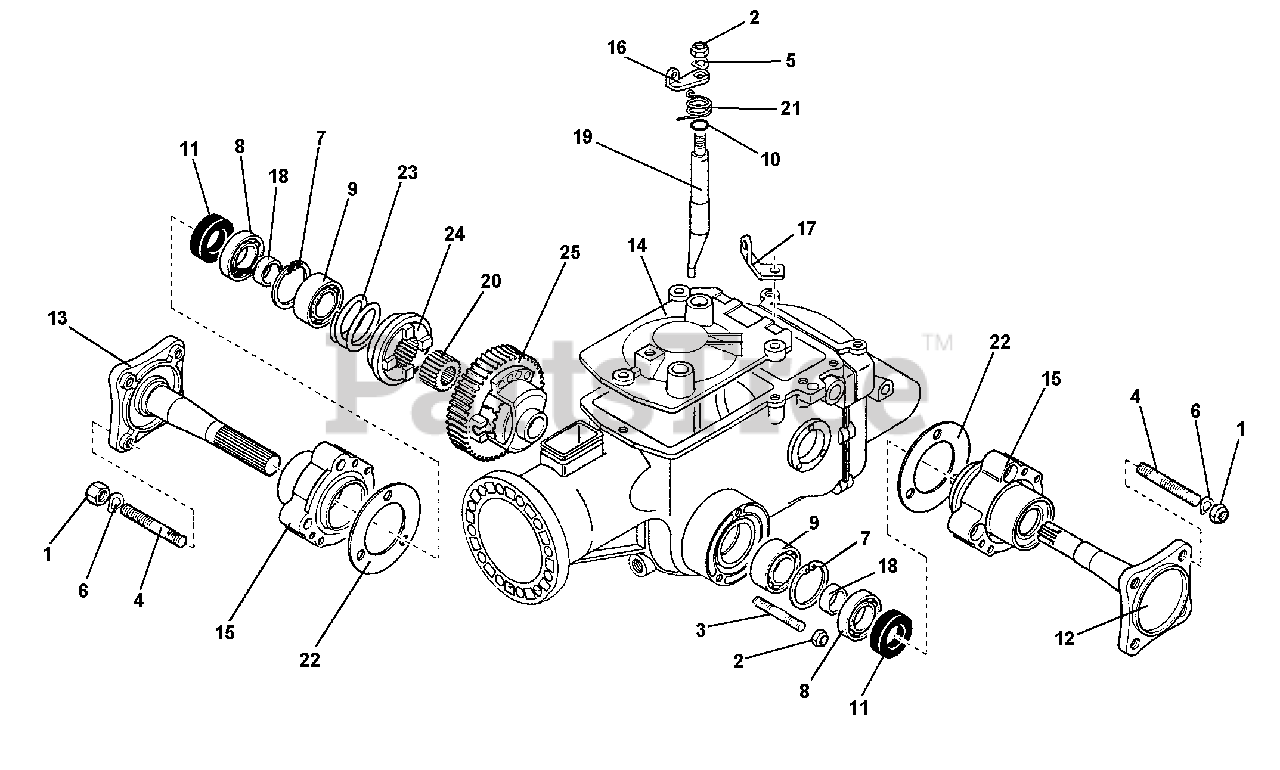

830 - BCS America Two-Wheeled Tractor Differential (SN: 1000 & Above) Parts Diagram

Two-Wheeled Tractor

Differential (SN: 1000 & Above) Parts Diagram

  • Title

1

BCS America 31211100

NUT, M10

$1.49

$

In Stock, only 3 left!

0

2

BCS America 31241080

NUT, SELF LOCKING, M8

$0.99

$

In Stock, Qty 11

0

3

BCS America 31312080

STUD, M8X46X20X12

$1.99

$

In Stock, only 1 left!

0

4

BCS America 313.12102

STUD, M10X40X22X14

$2.49

$

In Stock, only 4 left!

0

5

BCS America 314.11084

WASHER, FLAT, M8.4

$0.99

$

In Stock, only 4 left!

0

6

BCS America 314.23105

WASHER, LOCK, M10.5

$1.49

$

In Stock, Qty 5

0

7

BCS America 351.11047

CIRCLIP, INTERNAL

$1.99

$

In Stock, only 1 left!

0

8

BCS America 371.11253

BEARING, M25X47X12

$15.99

$

Usually ships in 5-8 days

0

9

BCS America 371.11255

BEARING, M25X52X15

$15.99

$

In Stock, only 1 left!

0

10

BCS America 38111400

"O" RING

$0.99

$

Usually ships in 5-8 days

0

11

BCS America 382.13002

OIL SEAL, M30X40X7

$7.99

$

In Stock, only 1 left!

0

12

BCS America 524.48187

HALF AXEL, L.H. SHORT

$275.99

$

Usually ships in 5-8 days

0

13

BCS America 524.48188

HALF AXEL, R.H. LONG

$304.99

$

Usually ships in 5-8 days

0

14

BCS America 531.43875

COVER DIFFERENTIAL

$85.99

$

Usually ships in 5-8 days

0

15

BCS America 532.43851

HUB FOR HALF AXLE

$121.99

$

Usually ships in 5-8 days

0

16

BCS America 56143880

LEVER RELEASE

$18.99

$

Usually ships in 5-8 days

0

17

BCS America 561.43883

CONTRAST DIFFERENTIAL SHEATH

$14.99

$

Usually ships in 5-8 days

0

18

BCS America 561.48184

RING FOR HALF AXLE

$15.99

$

Usually ships in 5-8 days

0

19

BCS America 564.43871

ROD

$111.99

$

Usually ships in 5-8 days

0

20

BCS America 564.48183

SPACER GEAR FOR DIFFERENTIAL

$66.99

$

Usually ships in 5-8 days

0

21

BCS America 564.48196

COUPLING

$156.99

$

Usually ships in 5-8 days

0

22

BCS America 580.43855

JOINT GASKET

$6.49

$

In Stock, only 3 left!

0

23

BCS America 580.43874

SPRING

$3.99

$

Usually ships in 5-8 days

0

24

BCS America 580.43881

SPRING

$7.99

$

Usually ships in 5-8 days

0

25

BCS America 590.48181

DIFFERENTIAL

$1121.99

$

Usually ships in 5-8 days

0
