829 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

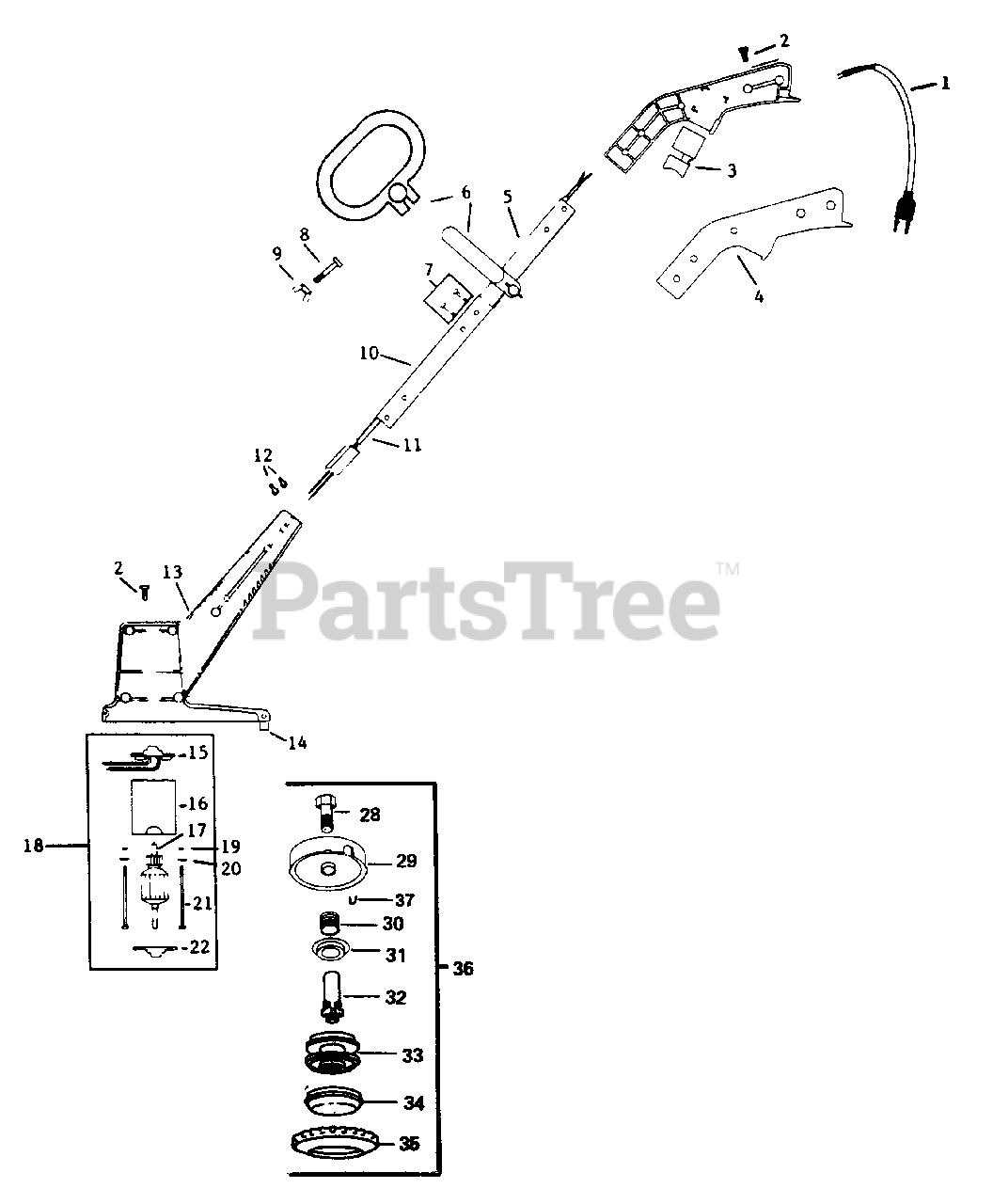

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530090866

POWER CORD PIGTAIL

$

$

Not available

2

Poulan 530090827

SCREW

$

$

Not available

3

Poulan 530090824

SWITCH

$

$

Not available

4

Poulan 530092707

TRIGGER HANDLE (SET ONLY)

$

$

Not available

5

Poulan 530092708

UPPER HANDLE TUBE

$

$

Not available

6

Poulan 530092709

ASSIST HANDLE

$

$

Not available

7

Poulan 530092628

SCREW

$

$

Not available

8

Poulan 530092061

BOLT

$

$

Not available

9

Poulan 530092049

WING NUT

$

$

Not available

10

Poulan 530092711

LOWER HANDLE TUBE

$

$

Not available

11

Poulan 530092712

530092712

$

$

Not available

12

Poulan 530090876

CONNECTOR

$

$

Not available

13

Poulan 530092713

MOTOR HOUSING (SET ONLY)

$

$

Not available

14

Poulan 530090874

TAIL INTERFERENCE BLADE

$

$

Not available

15

Poulan 530092714

END BELL w/BRUSHES AND SPRINGS

$

$

Not available

16

Poulan 530092715

FIELD ASSEMBLY

$40.99

$

Usually ships in 3-10 days

0

17

Poulan 530092716

ARMATURE

$

$

Not available

18

Poulan 530092717

MOTOR (COMPLETE)

$

$

Not available

19

Poulan 530091333

NUT

$

$

Not available

20

Poulan 530092718

LOCK WASHER

$

$

Not available

21

Poulan 530092719

SCREW

$

$

Not available

22

Poulan 530092721

ENDBELL, OUTPUT

$

$

Not available

28

Poulan 530092726

DRIVE ADAPTOR

$

$

Not available

29

Poulan 530092673

HUB w/LINE SAVER

$

$

Not available

30

Poulan 530092067

COIL SPRING
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530092068

COIL SPRING ADAPTOR
(Superseded to 530328929)

$

$

Not available

32

Poulan 530092069

DRIVE GEAR

$

$

Not available

33

Poulan 702509

SPOOL, W/LINE

$

$

Not available

34

Poulan 530093387

RELEASE BUTTON
(Superseded to 530401183)

$

$

Not available

35

Poulan 530092133

COVER

$

$

Not available

36

Poulan 530092728

TAP-N-GO HEAD ASSEMBLY

$

$

Not available

37

Poulan 530092134

LINE SAVER

$

$

Not available
