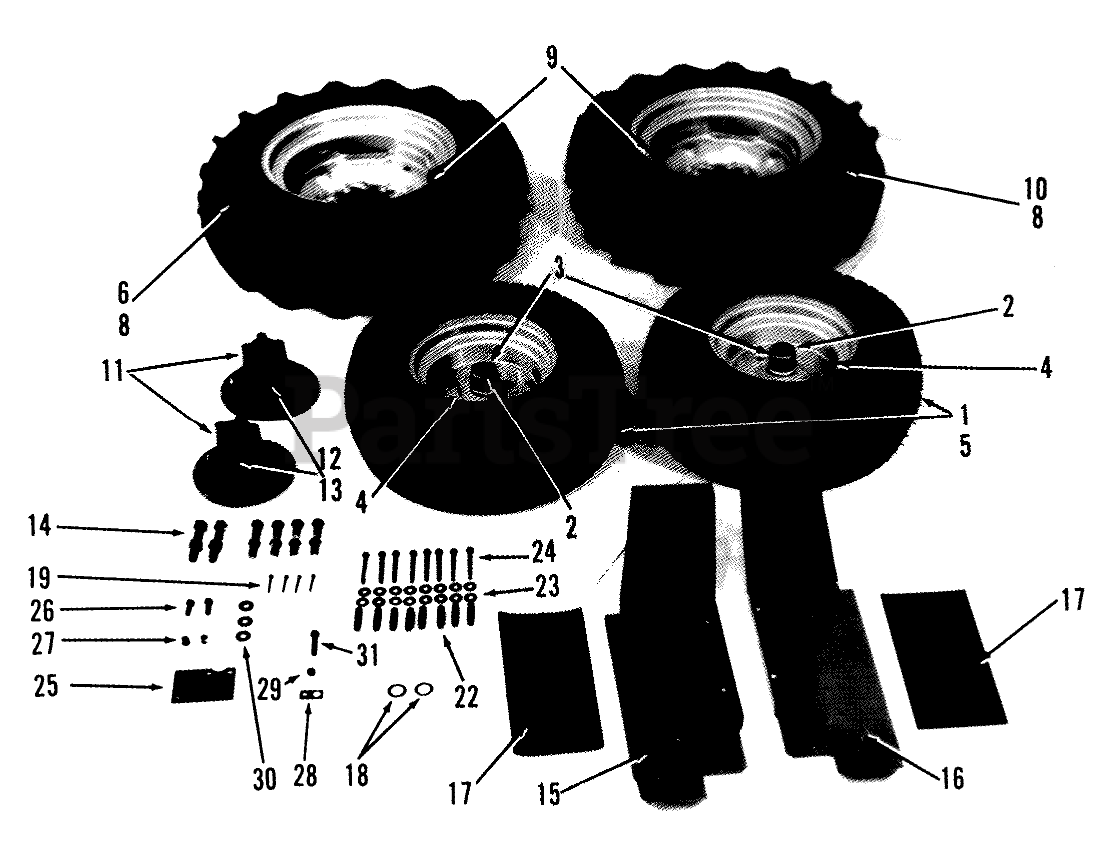

82823 - Toro Tilling Kit (1987) PARTS LIST FOR AG TRACTOR KIT FACTORY ORDER NO. 82823 Parts Diagram

Tilling Kit

PARTS LIST FOR AG TRACTOR KIT FACTORY ORDER NO. 82823 Parts Diagram

  • Title

1

Toro 111859

Wheel & Tire 20 x 8.00-10

$

$

Not available

2

Toro 107124

BEARING-RADIAL FLNGE

$

$

Not available

3

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

4

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

5

Toro 100040

TUBE

$

$

Not available

6

Toro 112507

RH Ag Wheel & Tire 27 x 8.50-15

$

$

Not available

8

Toro 8461

Tube (Service Only)

$

$

Not available

9

Toro 5435

VALVE TUBELESS

$

$

Not available

10

Toro 112508

LH Ag Wheel & Tire 27 x 8.50-15

$

$

Not available

11

Toro 102372

REAR HUB R

$

$

Not available

12

Toro 909556

SS-SQ HD3/8-16X1 1/2
(Superseded to 3243-13)

$4.49

$

Usually ships in 3-6 days

0

13

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

14

Toro 1487

LUG BOLT WHEEL 7/162

Note: Indicates Part of LOOSE PARTS Package Num 807121

$18.99

$

Usually ships in 3-6 days

0

15

Toro 111850

FOOTREST RH R

$

$

Not available

16

Toro 111851

FOOTREST LH R

$

$

Not available

17

Toro 106246

Sandpaper Mat

$

$

Not available

18

Toro 1278

WASHER

Note: Indicates Part of LOOSE PARTS Package Num 807121

$2.99

$

In Stock, only 3 left!

0

19

Toro 932026

COTTER PIN-4

Note: Indicates Part of LOOSE PARTS Package Num 807121

$0.99

$

In Stock, Qty 13

0

22

Toro 106574

TUBE-CLUTCH SPACER

Note: Indicates Part of LOOSE PARTS Package Num 807121

$

$

Not available

23

Toro 930038

Washer 5/16

Note: Indicates Part of LOOSE PARTS Package Num 807121

$

$

Currently unavailable

24

Toro 908026

Pin-Cotter
(Superseded to 322-13)

Note: Indicates Part of LOOSE PARTS Package Num 807121

$3.49

$

In Stock, only 2 left!

0

25

Toro 111868

PLATE IDLER R

Note: Indicates Part of LOOSE PARTS Package Num 807121

$

$

Not available

26

Toro 908034

BOLT
(Superseded to 323-6)

Note: Indicates Part of LOOSE PARTS Package Num 807121

$2.49

$

In Stock, Qty 20+

0

27

Toro 915663

NUT
(Superseded to 3296-39)

Note: Indicates Part of LOOSE PARTS Package Num 807121

$2.99

$

In Stock, Qty 8

0

28

Toro 100047

PLATE SPRING ANCHOR

Note: Indicates Part of LOOSE PARTS Package Num 807121

$

$

Not available

29

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of LOOSE PARTS Package Num 807121

$0.99

$

In Stock, Qty 13

0

30

Toro 920039

Washer
(Superseded to 3256-4)

Note: Indicates Part of LOOSE PARTS Package Num 807121

$1.99

$

In Stock, Qty 20+

0

31

Toro 908037

Bolt
(Superseded to 323-9)

Note: Indicates Part of LOOSE PARTS Package Num 807121

$1.49

$

In Stock, Qty 20+

0
