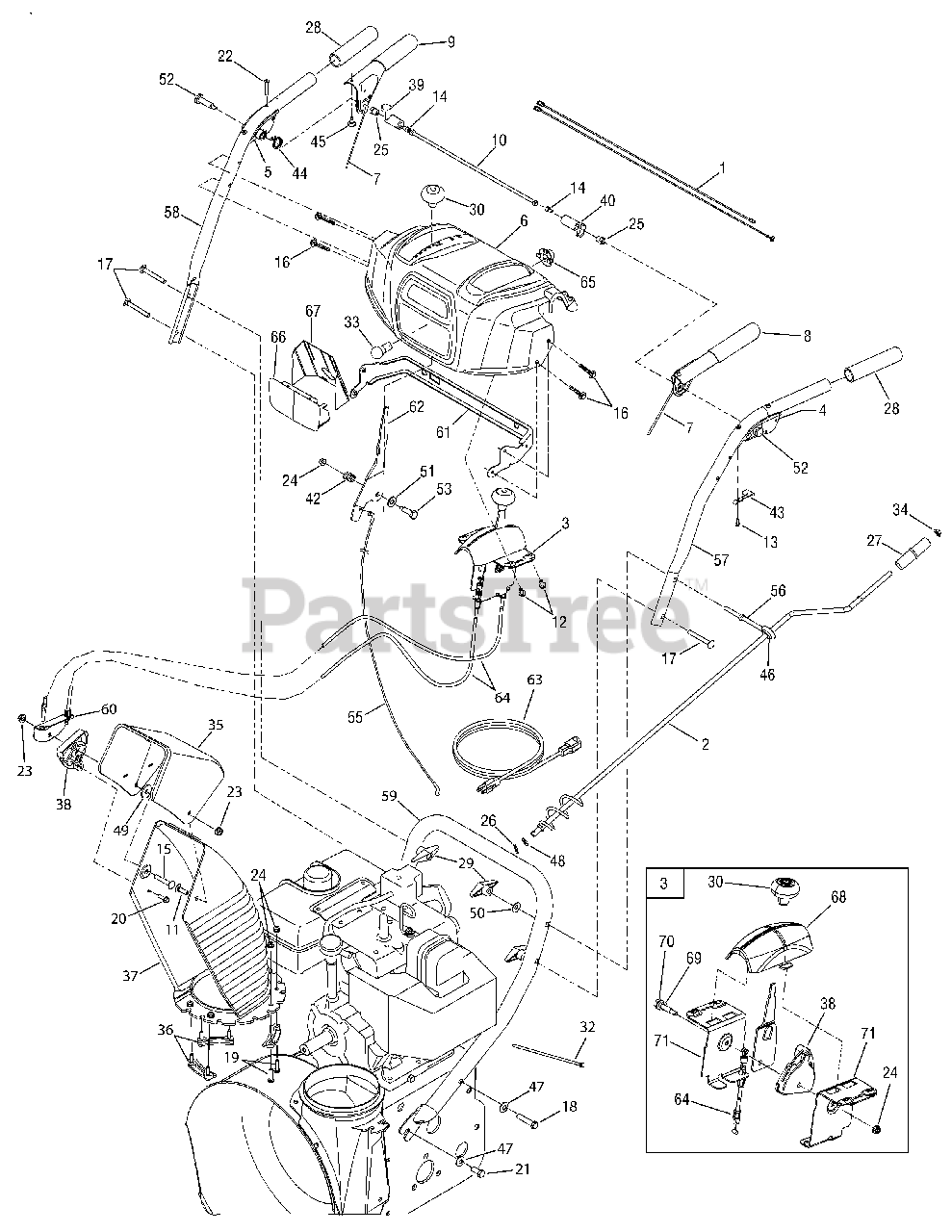

828 WE (31AE8SST710) - Cub Cadet 28" Snow Thrower (2007) Handles, Handle Panel & Discharge Chute Parts Diagram

28" Snow Thrower

Handles, Handle Panel & Discharge Chute Parts Diagram

  • Title
1

Cub Cadet 725-04214

Wire Harness

$

$

Not available

2

Cub Cadet 684-04104

Crank, Chute
(Superseded to 684-04104-0637)

Variations

Cub Cadet 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$62.99

$

In Stock, only 1 left!

0

$62.99

$

In Stock, only 1 left!

0

3

Cub Cadet 684-04230

2-Way Chute Control (TM) Assy
(Superseded to 984-04230)

$134.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 631-04133A

Handle Clutch Lock - LH

$15.99

$

In Stock, only 1 left!

0

5

Cub Cadet 631-04134B

Handle Clutch Lock - RH

$15.99

$

In Stock, only 1 left!

0

6

Cub Cadet 731-05335

Handle Panel
(Superseded to 931-04187A)

$71.99

$

In Stock, only 1 left!

0

6

Cub Cadet 777I22341

Graphic, Instruction

Note: not shown

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 777I22435

Graphic, Instruction

Note: not shown

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 777D11353

Graphic, 828WE

Note: not shown

$

$

Not available

7

Cub Cadet 646-0012

Cable Assembly, Auger/Drive

$36.99

$

In Stock, only 1 left!

0

7

Cub Cadet 746-0952

Cable, Clutch
(Superseded to 746P0952)

Note: not shown

$46.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 732-0184

Spring, Extension

Note: not shown

$25.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 684-04105B

Handle Engage Assy - LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

9

Cub Cadet 684-04106B

Handle Engage Assy - RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

9

Cub Cadet 777I22363

Graphic, Instruction

Note: not shown

$8.99

$

In Stock, only 1 left!

0

10

Cub Cadet 684-04250

Rod Ass’y, Clutch Lock Pivot

$12.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0276

Screw, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 11

0

12

Cub Cadet 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

13

Cub Cadet 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

14

Cub Cadet 710-04354

Screw, 1/4-20 x.375

$3.99

$

In Stock, only 4 left!

0

15

Cub Cadet 710-0458

Bolt, Carriage, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

17

Cub Cadet 710-0572

Screw, Carriage, 5/16-18 x 2.5

$4.49

$

In Stock, only 4 left!

0

18

Cub Cadet 710-04682

Screw, Hex, 3/8-16 x 2.00 Lock, Gr5

$5.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0597

Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

20

Cub Cadet 710-0895

Hi-Lo Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

21

Cub Cadet 710-3118

Screw, Hex, 3/8-16 x 1.0 Lock, Gr5

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

23

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, Qty 9

0

26

Cub Cadet 714-0104

Pin, Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 720-0201A

Knob, Crank

$10.99

$

In Stock, only 4 left!

0

28

Cub Cadet 720-0274

Handle Grip

$11.99

$

In Stock, only 2 left!

0

29

Cub Cadet 720-0284

Knob, Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

30

Cub Cadet 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

32

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

33

Cub Cadet 725-1629

Lamp
(Superseded to 925-1629)

$11.99

$

In Stock, Qty 14

0

34

Cub Cadet 726-0100

Cap, Push, 3/8

$4.49

$

In Stock, only 3 left!

0

35

Cub Cadet 731-0846C

Upper Chute

$52.99

$

In Stock, only 1 left!

0

35

Cub Cadet 777S32280

Graphic, Danger

Note: not shown

$10.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 731-0851A

Chute, Flange Keeper

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 731-0903D

Lower Chute
(Superseded to 731-0903E)

$43.99

$

In Stock, Qty 8

0

38

Cub Cadet 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

39

Cub Cadet 731-04894C

Lock Plate
(Superseded to 731-04894D)

$5.49

$

In Stock, only 1 left!

0

40

Cub Cadet 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 6

0

42

Cub Cadet 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

43

Cub Cadet 732-04219A

Clutch Lock Spring
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

45

Cub Cadet 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

46

Cub Cadet 735-0234

Grommet, Rubber

$5.49

$

In Stock, only 2 left!

0

47

Cub Cadet 736-0105

Washer, Bel, .375 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 736-0185

Washer, .375 x .738 x .063

$3.99

$

In Stock, only 2 left!

0

49

Cub Cadet 736-0231

Flat Washer

$4.99

$

In Stock, Qty 11

0

50

Cub Cadet 736-0242

Washer, Belleville, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0267

Flat Washer

$4.49

$

In Stock, only 1 left!

0

52

Cub Cadet 738-04122

Shoulder Screw, 1/4-20 x 1.345
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 738-04125

Shoulder Screw

$4.99

$

In Stock, only 3 left!

0

55

Cub Cadet 746-04341

Speed Selector Cable

$25.99

$

Usually ships in 3-6 days

0

56

$9.49

$

In Stock, only 2 left!

0

57

Cub Cadet 749-04309

Handle, Upper - LH

Variations

Cub Cadet 749-04309-0637

Left Upper Handle - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04309-0638

HANDLE:UPPER LH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04309-0691

HANDLE:UPPER LH - BLACK JACK (0691)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04309-4033

HANDLE:UPPER LH - FLINT MICA (4033)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 749-04310

Handle, Upper - RH

Variations

Cub Cadet 749-04310-0637

Right Upper Handle - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04310-0638

HANDLE:UPPER RH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04310-0691

HANDLE:UPPER RH - BLACK JACK (0691)

$

$

Not available

Cub Cadet 749-04310-4033

HANDLE:UPPER RH - FLINT MICA (4033)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 749-0991

Handle, Lower

Variations

Cub Cadet 749-0991-0637

Lower Handle - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0638

HANDLE-LOWER - MTD/TROY-BILT RED (0638)

$68.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0650

HANDLE-LOWER - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0665

HANDLE-LOWER - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0691

HANDLE-LOWER - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-4033

HANDLE-LOWER - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 784-5594

Cable Bracket

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 790-00248A

Panel Bracket
(Superseded to 790-00248E-0637)

Variations

Cub Cadet 790-00248A-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

62

Cub Cadet 790-00281

Shift Lever
(Superseded to 790-00281B-0637)

Variations

Cub Cadet 790-00281-0637

USE 790-00281B-0637 LEVER-SHI - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 629-0071

Extension Cord, 110V
(Superseded to 929-0071B)

$21.99

$

In Stock, only 1 left!

0

64

Cub Cadet 746-04338

Cable, Chute Tilt
(Superseded to 946-04338)

$56.99

$

In Stock, only 2 left!

0

65

Cub Cadet 725-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

$14.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 777X41804

Reflector Label

$9.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 731-05307

Cover, Tilt Cover

$11.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 736-0413

Washer, Spring, .39 x .625 x .012

$6.99

$

In Stock, only 2 left!

0

70

Cub Cadet 738-04185

Screw, Shoulder, .31 x .995:1/4-20

$8.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 790-00200

Bracket, Mounting
(Superseded to 790-00200A)

Variations

Cub Cadet 790-00200-0637

BRACKET-2 WAY CNTRL - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0
