828 WE (31AE8SST710) - Cub Cadet 28" Snow Thrower (2007) Augers, Auger Housing and Gearbox Parts Diagram

28" Snow Thrower

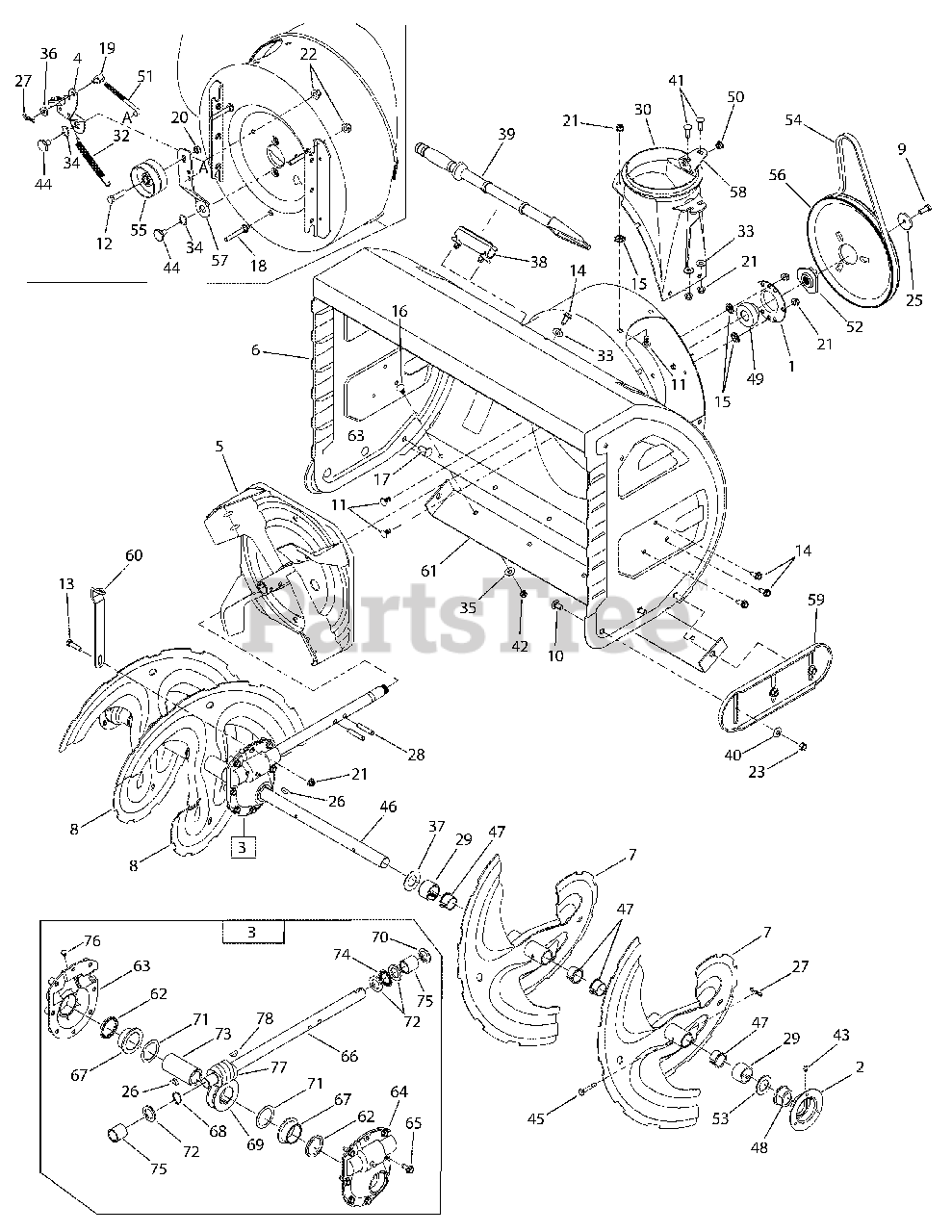

Augers, Auger Housing and Gearbox Parts Diagram

  • Title

1

Cub Cadet 05244B

Housing, Bearing

$23.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 784-0315A

Housing, Bearing

Variations

Cub Cadet 784-0315A-0637

Housing Bearing - POWDER BLACK (0637)

$

$

Not available

$15.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-04514

Gear Box Assembly
(Superseded to 918-04514)

$543.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-0281A

Bracket Ass’y, Auger Brake
(Superseded to 918-0281A)

$64.99

$

In Stock, only 2 left!

0

5

Cub Cadet 684-0090B

Impellar , 16"

Variations

Cub Cadet 684-0090B-0637

IMPELLER ASM:16" - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 684-0090B-0717

IMPELLER ASM:16" - SILVER MIST (0717)

$

$

Not available

$344.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 684-04231

Housing, Auger - 28"
(Superseded to 684-04231-0716)

Variations

Cub Cadet 684-04231-0716

HOUSING ASSY-AUGER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

Cub Cadet 777S32066

Graphic, Danger

Note: not shown

$

$

Not available

6

Cub Cadet 777D10448

Graphic, Cub Cadet - 828"

Note: not shown

$

$

Not available

7

Cub Cadet 684-04151

Spiral Ass’y, LH

Variations

Cub Cadet 684-04151-0606

Spiral Assembly, LH 900 - MAJESTIC ORANGE (0606)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04151-0637

SPIRAL ASM:LH 900 - POWDER BLACK (0637)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04151-0638

SPIRAL ASM:LH 900 - MTD/TROY-BILT RED (0638)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04151-0650

SPIRAL ASM:LH 900 - RED METALLIC (0650)

$231.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04151-0662

SPIRAL ASM:LH 900 - OYSTER GRAY (0662)

$201.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04151-0674

SPIRAL ASM:LH 900 - YARDMAN YELLOW (0674)

$231.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04151-0716

SPIRAL ASM:LH 900 - CUB YELLOW-99 (0716)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04151-0717

SPIRAL ASM:LH 900 - SILVER MIST (0717)

$201.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04151-4021

SPIRAL ASM:LH 900 - CUB YELLOW 2 (4021)

$249.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04151-4028

SPIRAL ASM:LH 900 - SEARS YELLOW (4028)

$249.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04151-4044

SPIRAL ASM:LH 900 - CRAFTSMAN RED (4044)

$231.99

$

Usually ships in 3-6 days

0

$249.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 684-04152

Spiral Ass’y, RH

Variations

Cub Cadet 684-04152-0638

SPIRAL ASM:RH 900 - MTD/TROY-BILT RED (0638)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04152-0499

SPIRAL ASM-RH 900 - CUB BEIGE (0499)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04152-0606

SPIRAL ASM:RH 900 - MAJESTIC ORANGE (0606)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04152-0637

SPIRAL ASM:RH 900 - POWDER BLACK (0637)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04152-0650

SPIRAL ASM:RH 900 - RED METALLIC (0650)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04152-0662

SPIRAL ASM:RH 900 - OYSTER GRAY (0662)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04152-0674

SPIRAL ASM:RH 900 - YARDMAN YELLOW (0674)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04152-0716

SPIRAL ASM:RH 900 - CUB YELLOW-99 (0716)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04152-0717

SPIRAL ASM:RH 900 - SILVER MIST (0717)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04152-4021

SPIRAL ASM:RH 900 - CUB YELLOW 2 (4021)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04152-4028

SPIRAL ASM:RH 900 - SEARS YELLOW (4028)

$261.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04152-4044

SPIRAL ASM:RH 900 - CRAFTSMAN RED (4044)

$261.99

$

Usually ships in 3-6 days

0

$216.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1245B

Screw, Hex Cap Lock, 5/16-24 x .875 Gr8

$8.49

$

In Stock, only 4 left!

0

10

Cub Cadet 710-04527

Screw, Carriage, 3/8-16 x .75 Stainless

$

$

Not available

11

Cub Cadet 710-0451

Screw, Carr, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0459A

Screw, Hex Cap, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

13

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 Gr5

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 726-04012

Nut, Push

$7.49

$

In Stock, Qty 8

0

16

Cub Cadet 710-04525

Screw, Carriage, 5/16-18 x .75 Stainless

$6.99

$

In Stock, only 3 left!

0

17

Cub Cadet 710-04526

Screw, Carr,3/8-16 x 1.0 Stainless

$

$

Not available

18

Cub Cadet 710-04606

Screw w/Stud, 5/16-18 x .4300
(Superseded to 710-04606A)

$7.49

$

In Stock, only 1 left!

0

19

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

20

Cub Cadet 712-0116

Nut, Hex Lock, 3/8-24

$4.99

$

In Stock, Qty 6

0

21

Cub Cadet 712-04063

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04065

Nut, Hex Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04102

Nut, Hex Lock, 3/8-16 Stainless

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0505

Washer, Flat, .34 x 1.5 x .15 HT

$6.49

$

In Stock, Qty 11

0

26

Cub Cadet 714-0135

Key, Woodruff, 1/4 x 3/4

$4.99

$

In Stock, only 2 left!

0

27

Cub Cadet 714-04040

Pin, Bowtie Cotter

$1.49

$

In Stock, Qty 20+

0

28

Cub Cadet 715-0118

Pin, Spirol, 5/16 x 1.75

$12.99

$

In Stock, Qty 7

0

29

Cub Cadet 731-05163

Spacer, 1.0 x 1.5 x 1.0Lg

$7.49

$

In Stock, Qty 20+

0

30

Cub Cadet 731-1696B

Adapter, Chute, 6"

$91.99

$

In Stock, Qty 11

0

32

Cub Cadet 732-0858

Spring, Extension

$24.99

$

In Stock, only 4 left!

0

33

Cub Cadet 736-0159

Washer, Flat, .349 x .879 .063

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0174

Washer, Wave, .625 x .885 x .015

$6.99

$

In Stock, Qty 8

0

35

Cub Cadet 736-04216

Washer, Bell., .34 x .872 x .06 Stainless

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-3008

Washer, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-3046A

Washer, 1.01 x 1.86 x .06

$8.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 731-2635

Clip, Mounting
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 18

0

39

Cub Cadet 731-2643

Tool, Cleanout
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 11

0

40

Cub Cadet 736-04215

Washer, Bell., .375 x .87 x .063 Stainless

$

$

Not available

41

Cub Cadet 710-0276

Screw, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 712-04103

Nut, Hex, 5/16-18 Stainless
(Superseded to 712-05158)

$4.49

$

In Stock, Qty 6

0

43

Cub Cadet 737-3000

Fitting, Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 738-0281

Screw, Shoulder, .625 x .17

$10.99

$

In Stock, only 2 left!

0

45

Cub Cadet 738-04155

Pin, Shear, .25 x 1.75

$1.99

$

In Stock, Qty 20+

0

46

Cub Cadet 738-04156

Shaft, Spiral

$149.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 741-0494

Bushing, Flange,

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 741-0192

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

49

Cub Cadet 741-04024

Bearing, Self Aligning
(Superseded to 941-04024)

$64.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 741-0475

Bushing, Plastic, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 747-0980A

Rod, Auger Idler

$47.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 748-04067A

Adapter, Pulley w/Pins

$26.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 750-04020

Spacer, 1.004 x 1.375 x .25
(Superseded to 950-04020)

$12.99

$

In Stock, only 1 left!

0

54

Cub Cadet 754-04131

Belt, V, 1/2 x 42
(Superseded to 954-04131)

$31.99

$

In Stock, only 1 left!

0

55

Cub Cadet 756-0178

Pulley, Flat Idler, 2.75 OD

$20.99

$

In Stock, only 4 left!

0

56

Cub Cadet 756-04244A

Pulley, Auger Drive, 10.0

$60.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 784-0385B

Bracket, Auger Idler
(Superseded to 784-0385D)

$29.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 784-5123

Bracket, Chute Crank
(Superseded to 784-5123-0637)

Variations

Cub Cadet 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

59

Cub Cadet 790-00199

Shoe, Skid, Stainless
(Superseded to 731-07032)

Variations

Cub Cadet 790-00199-0637

Snow Skid Shoe, Blue - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 790-00264A

Bracket, Gear Box Support
(Superseded to 790-00264A-0637)

Variations

Cub Cadet 790-00264A-0637

Auger Gear Box Bracket - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 790-00197A

Plate, Shave, Stainless

$

$

Not available

62

Cub Cadet 721-0146

Oil Seal
(Superseded to 921-0146)

$12.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 618-0246

Hsg, Ass’y, Auger, RH (Incl. Ref. # 62 & 67)
(Superseded to 918-0246)

$

$

Not available

64

Cub Cadet 618-0435

Hsg, Ass’y, Auger, LH (Incl. Ref. # 62 & 67)
(Superseded to 918-0435)

$109.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 737-3000

Fitting, Lube
(Superseded to 937-3000)

Note: not shown

$4.99

$

In Stock, Qty 20+

0

65

Cub Cadet 710-1260A

Screw, LD, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 711-04714

Shaft, Drive, Auger

$66.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 741-0670

Flange Bearing

$13.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 716-0111

External, Retaining, Ring

$6.99

$

In Stock, only 4 left!

0

69

Cub Cadet 717-1425

Gear, Worm, LH
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

70

Cub Cadet 721-0145

Seal, Oil
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 736-0266

Wash, Flat, 1.52ID x 2.0 OD
(Superseded to 936-0266)

$

$

Not available

72

Cub Cadet 736-0291

Wash, Flat, .88 ID x .38 OD

$11.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 738-0275

Shaft, Gear, Worm

$112.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 741-0184

Bearing, Thrust

$16.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 741-0217

Sleeve
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 7

0

76

Cub Cadet 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

77

Cub Cadet 717-0299

Gear, Worm
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

78

Cub Cadet 714-0126

Key, Hi Pro, 3/16 x 3/4

$4.99

$

In Stock, Qty 12

0
