827020 - Ariens 26", 30" 2-Bucket Bagger (SN: 040245 & Above) Bagger 30" Parts Diagram

26", 30" 2-Bucket Bagger

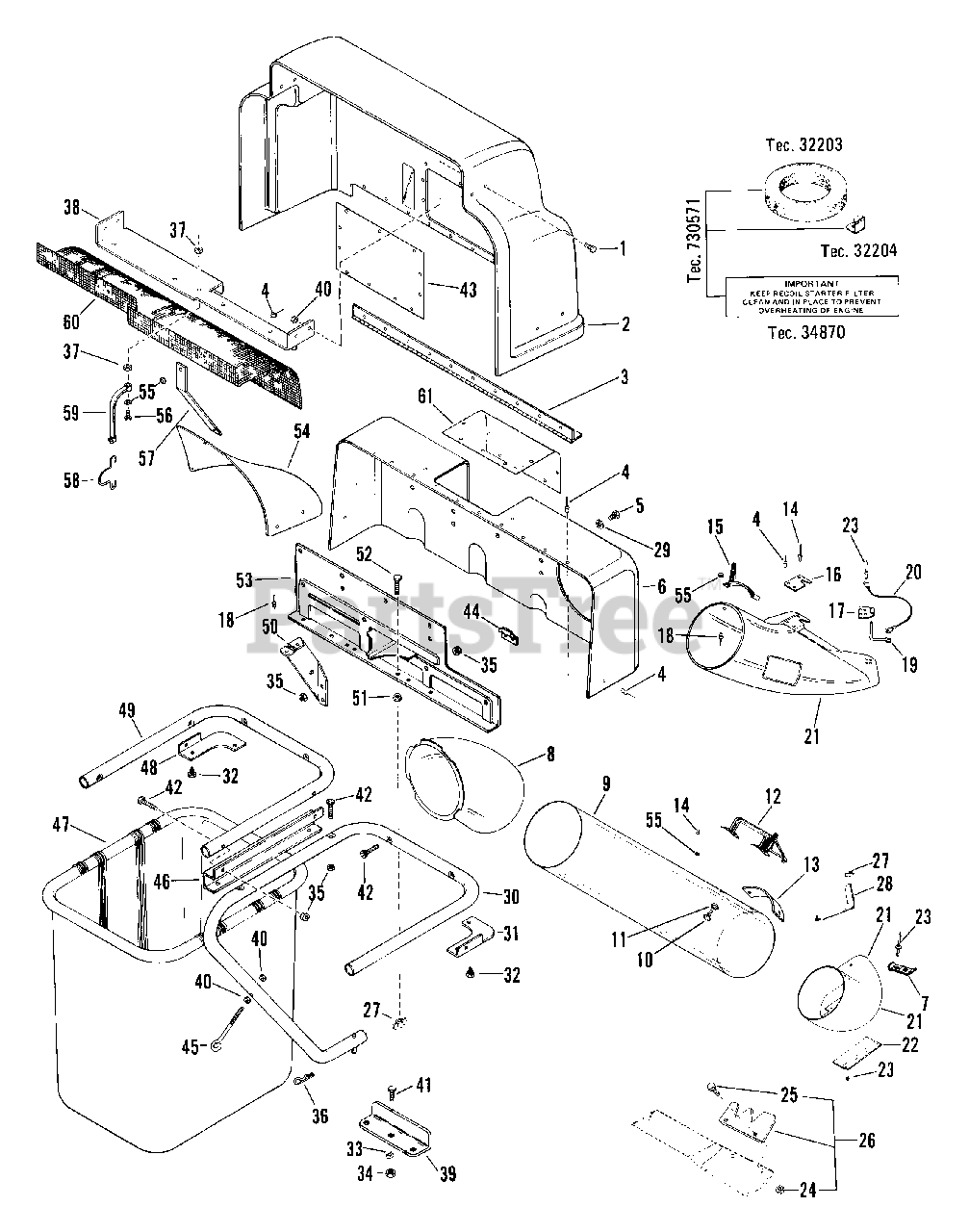

Bagger 30" Parts Diagram

  • Title

1

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 52705600

HINGED COVER W/DECALS

$

$

Not available

3

Ariens 02725300

HINGE

$

$

Not available

4

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

5

Ariens 06104200

SCR-MCH .31-18X.75 TSKBHD PL
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 52705700

STATIONARY COVER

$

$

Not available

7

Ariens 02750600

TUBE RETAINER CLIP

$

$

Not available

8

Ariens 02745600

BAGGER BOOT
(Superseded to 03599600)

$

$

Not available

9

Ariens 02750300

BAGGER TUBE

$

$

Not available

10

Ariens 07403300

SCR-TAP 10-16X .75 HWH PL SD
(Superseded to 07413600)

$

$

Not available

11

Ariens 06406500

WSHR-FL-STL .268X.562X.046 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 02746600

TUBE HANDLE

$

$

Not available

13

Ariens 02752100

PLATE

$

$

Not available

14

Ariens 06803900

RVT-POP.187X.277 DOME ST

$

$

Not available

15

Ariens 02746200

TUBE RETAINER

$19.99

$

Usually ships in 4-12 days

0

16

Ariens 02750800

BOOT SUPPORT

$

$

Not available

17

Ariens 02746100

BOOT BRACKET

$17.99

$

Usually ships in 4-12 days

0

18

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

19

Ariens 02746300

PULL PIN

$39.99

$

In Stock, only 2 left!

0

20

Ariens 02746400

LANYARD

$

$

Not available

21

Ariens 52707100

BOOT ASSEMBLY

$

$

Not available

22

Ariens 02532200

EXTENSION CHUTE

$

$

Not available

23

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$1.49

$

Usually ships in 4-12 days

0

24

Ariens 06514500

NUT-LK TOP .312-24 PL GR C

$

$

Not available

25

Ariens 05920600

BLT-HEX .31-24X.75 GR8
(Superseded to 05970500)

$2.49

$

Usually ships in 4-12 days

0

26

Ariens 52701100

SERVICE VANE PACKAGE

$45.99

$

Usually ships in 4-12 days

0

27

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

28

Ariens 02726500

BRACKET

$

$

Not available

29

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.49

$

In Stock, only 2 left!

0

30

Ariens 02724800

RIGHT TUBE

$

$

Not available

31

Ariens 02725000

RH CORNER BRACKET

$

$

Not available

32

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

34

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

In Stock, only 1 left!

0

35

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

37

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

38

Ariens 02730600

COVER BRACKET

$

$

Not available

39

Ariens 02726600

BRACKET
(Superseded to 02753900)

$

$

Not available

40

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

42

Ariens 06105200

SCR-MCH .31-18X1.50 CROVCNTRS
(Superseded to 06119100)

$

$

Not available

43

Ariens 02742700

STATIONARY COVER WINDOW

$

$

Not available

44

Ariens 02745700

BOOT CLIP

$38.99

$

Usually ships in 4-12 days

0

45

Ariens 02432700

EYEBOLT
(Superseded to 02440100)

$10.99

$

Usually ships in 4-12 days

0

46

Ariens 02724700

TUBE BRACKET

$

$

Not available

47

Ariens 02724400

GRASS BAGGER BASKET

$79.99

$

Usually ships in 4-12 days

0

48

Ariens 02725100

LH CORNER BRACKET

$

$

Not available

49

Ariens 02724600

CENTER TUBE
(Superseded to 02724651)

$44.99

$

Usually ships in 4-12 days

0

50

Ariens 02725200

BRACE

$

$

Not available

51

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

52

Ariens 05921500

BLT-HEX .31-18X1.50 GR2 YWZC

$2.49

$

Usually ships in 4-12 days

0

53

Ariens 02745800

MOUNTING BRACKET

$

$

Not available

54

Ariens 02731200

BAFFLE

$

$

Not available

55

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

$1.99

$

Usually ships in 4-12 days

0

56

Ariens 06101600

SCR-MCH 10-24X.88 SLRH PL
(Superseded to 06119200)

$

$

Not available

57

Ariens 02731100

BRACE

$

$

Not available

58

Ariens 02738100

HOOK

$6.99

$

In Stock, Qty 5

0

59

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

60

Ariens 02730500

SCREEN

$

$

Not available

61

Ariens 02724900

STATIONARY COVER

$

$

Not available
