827020 - Ariens 26", 30" 2-Bucket Bagger (SN: 004001 - 040244) Vane Tube & Boot Assemblies Parts Diagram

26", 30" 2-Bucket Bagger

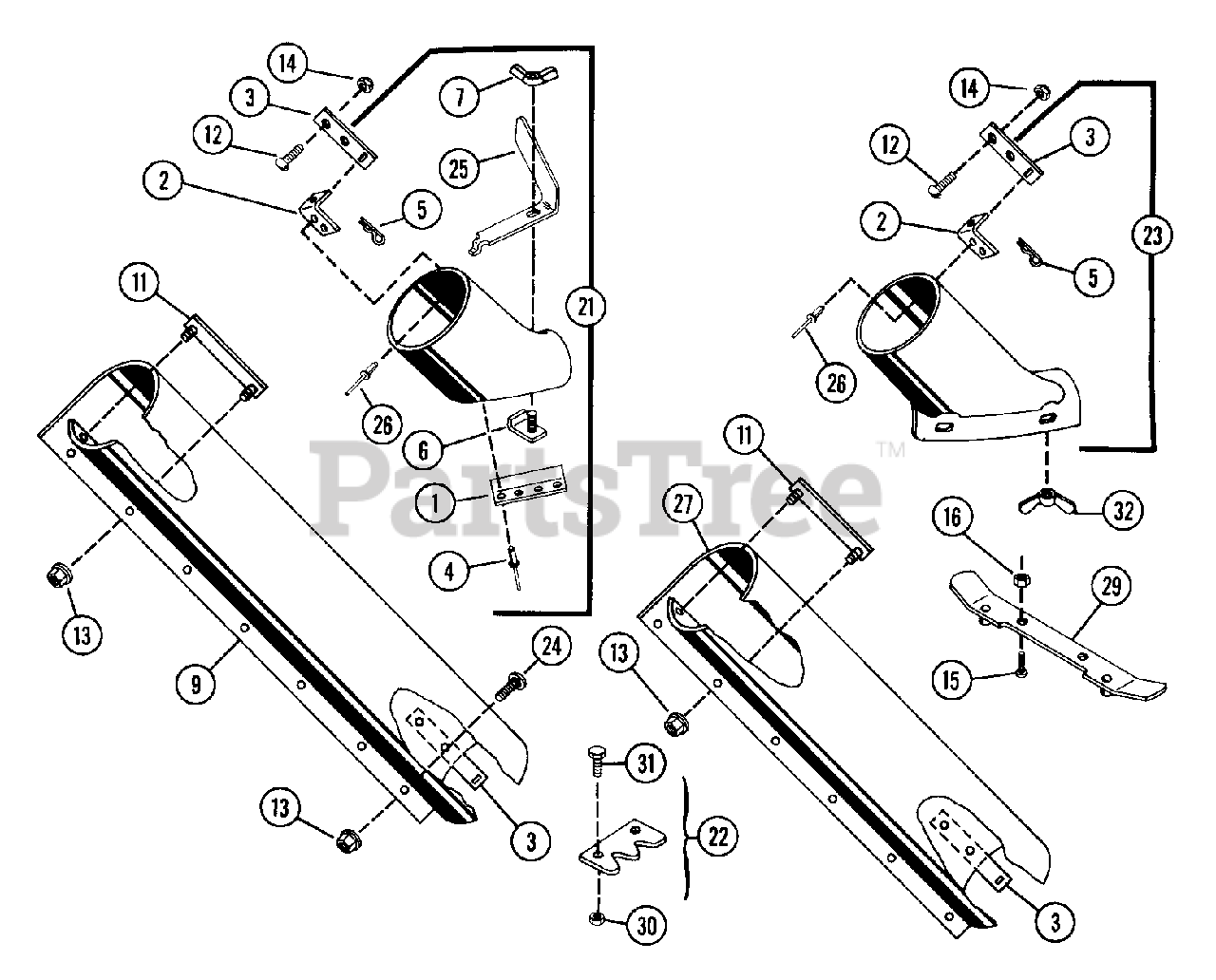

Vane Tube & Boot Assemblies Parts Diagram

  • Title

1

Ariens 02532200

EXTENSION CHUTE

$

$

Not available

2

Ariens 02539600

RETAINER

$

$

Not available

3

Ariens 02539700

STRAP
(Superseded to 53506100)

$

$

Not available

4

Ariens 06805300

RVT .187X.343 TR ST PL

$

$

Not available

5

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 02532300

CLIP CONE

$

$

Not available

7

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

9

Ariens 02730900

26 IN & 30 IN TUBE BLANK

$

$

Not available

11

Ariens 02533300

CLIP

$

$

Not available

12

Ariens 06101400

SCR-MCH 10-24X.38 SLTOR PAN PL

$

$

Not available

13

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 06203700

BLT-RDHDSQNK .25-20X1.00 GR5
(Superseded to 06219800)

$2.49

$

In Stock, only 3 left!

0

21

Ariens 62708400

BOOT ASSEMBLY
(Superseded to 52705300)

$

$

Not available

22

Ariens 52701100

SERVICE VANE PACKAGE

$45.99

$

Usually ships in 4-12 days

0

24

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 02726500

BRACKET

$

$

Not available

26

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$1.49

$

Usually ships in 4-12 days

0

30

Ariens 06514500

NUT-LK TOP .312-24 PL GR C

$

$

Not available

31

Ariens 05920600

BLT-HEX .31-24X.75 GR8
(Superseded to 05970500)

$2.49

$

Usually ships in 4-12 days

0
