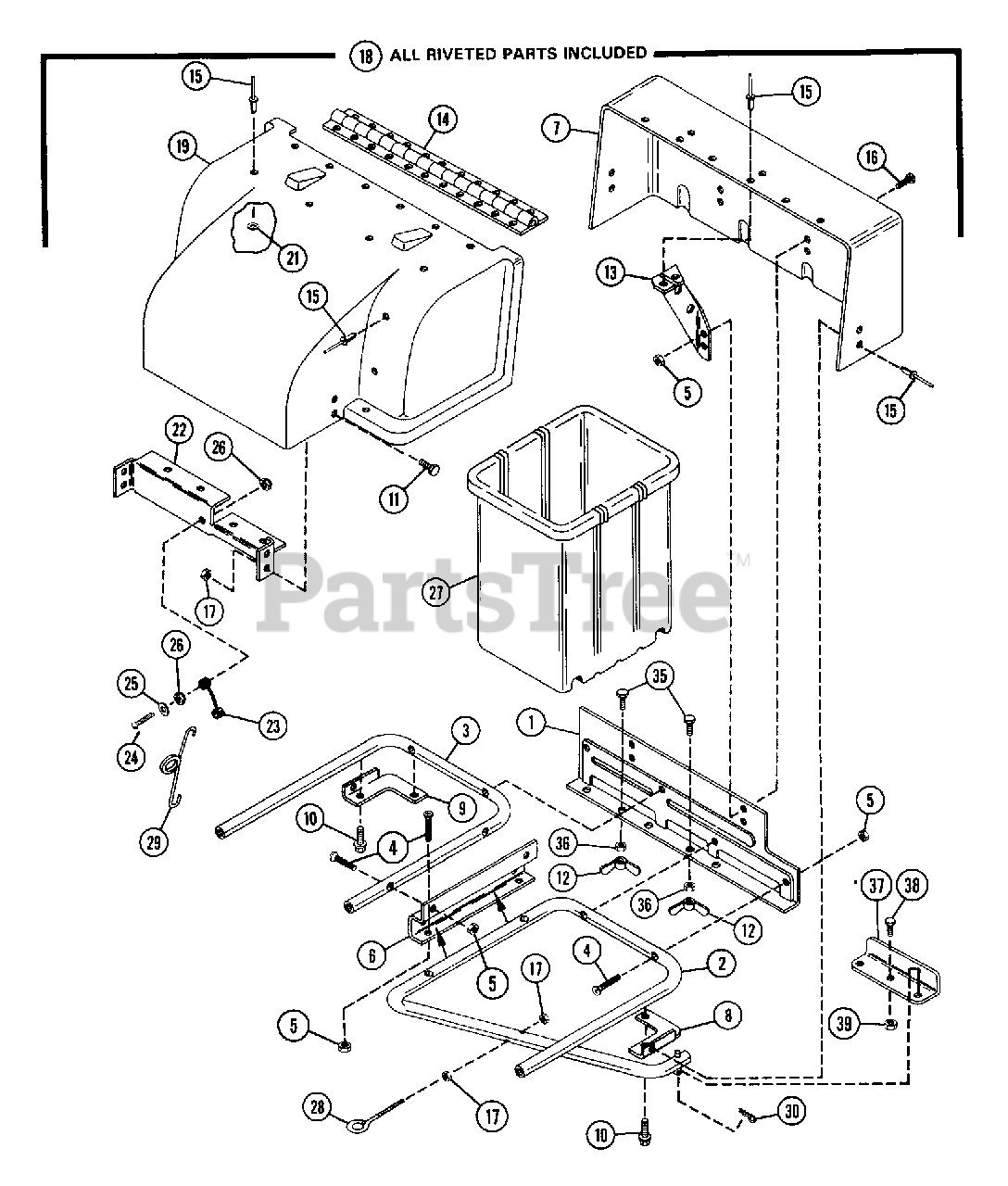

827020 - Ariens 26", 30" 2-Bucket Bagger (SN: 004001 - 040244) Grass Bagger Assembly Parts Diagram

26", 30" 2-Bucket Bagger

Grass Bagger Assembly Parts Diagram

  • Title

1

Ariens 02730400

MOUNTING BRACKET
(Superseded to 01232100)

$13.99

$

Usually ships in 4-12 days

0

2

Ariens 02724800

RIGHT TUBE

$

$

Not available

3

Ariens 02724600

CENTER TUBE
(Superseded to 02724651)

$44.99

$

Usually ships in 4-12 days

0

4

Ariens 06105200

SCR-MCH .31-18X1.50 CROVCNTRS
(Superseded to 06119100)

$

$

Not available

5

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 02724700

TUBE BRACKET

$

$

Not available

7

Ariens 02730700

STATIONARY COVER
(Superseded to 52705700)

$

$

Not available

8

Ariens 02725000

RH CORNER BRACKET

$

$

Not available

9

Ariens 02725100

LH CORNER BRACKET

$

$

Not available

10

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

13

Ariens 02725200

BRACE

$

$

Not available

14

Ariens 02725300

HINGE

$

$

Not available

15

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

16

Ariens 06104900

SCR-MCH .31-18X.62 SLTR PL

$

$

Not available

17

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 62708300

COVER ASSEMBLY
(Superseded to 52705200)

Note: (PART LIST UNDER NEXT HEADER)

$

$

Not available

19

Ariens 02725400

COVER
(Superseded to 52705600)

$

$

Not available

20

Ariens 02730500

SCREEN

Note: (NOT SHOWN)

$

$

Not available

21

Ariens 06409200

WSHR-FL-STL .188X.438X.049 PL

$

$

Not available

22

Ariens 02730600

COVER BRACKET

$

$

Not available

23

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

24

Ariens 06101600

SCR-MCH 10-24X.88 SLRH PL
(Superseded to 06119200)

$

$

Not available

25

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

$1.99

$

Usually ships in 4-12 days

0

26

Ariens 06504100

NUT-LK TOP 10-24 PL

$

$

Not available

27

Ariens 02724400

GRASS BAGGER BASKET

$79.99

$

Usually ships in 4-12 days

0

28

Ariens 02432700

EYEBOLT
(Superseded to 02440100)

$10.99

$

Usually ships in 4-12 days

0

29

Ariens 02725700

HOOK
(Superseded to 02738100)

$6.99

$

In Stock, Qty 5

0

30

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

35

Ariens 05921500

BLT-HEX .31-18X1.50 GR2 YWZC

$2.49

$

Usually ships in 4-12 days

0

36

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

37

Ariens 02726500

BRACKET

$

$

Not available

38

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

39

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

40

Ariens 02731100

BRACE

Note: (NOW SHOWN)

$

$

Not available

41

Ariens 02731200

BAFFLE

Note: (NOW SHOWN)

$

$

Not available
