827017 - Gravely 28" & 32" Grass Bagger for Sport ZT Series (SN: 010000 & Above) Boots, Vanes, And Tube Parts Diagram

28" & 32" Grass Bagger for Sport ZT Series

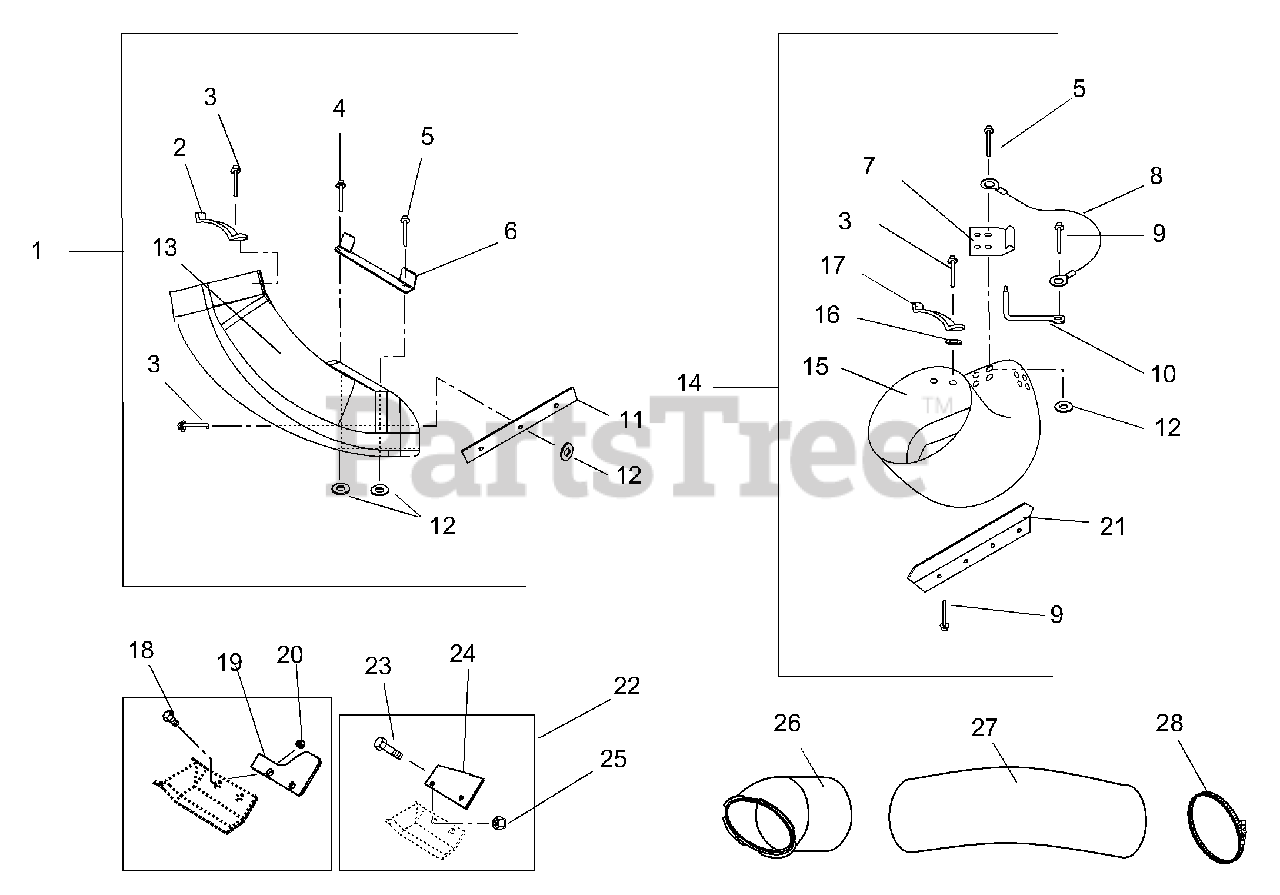

Boots, Vanes, And Tube Parts Diagram

  • Title
1

Gravely 62728100

28/32-In. Boot Assembly
(Superseded to 52711700)

$

$

Not available

2

Gravely 050360

Tube Retainer
(Superseded to 02750600)

$

$

Not available

3

Gravely 041098

Rivet-Pop .187 x .527
(Superseded to 06803800)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 050367

Rivet-Pop .187 x .277
(Superseded to 06803900)

$

$

Not available

5

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 10

0

6

Gravely 02770051

Bracket, Bagger Boot Mount

$

$

Not available

7

Gravely 050363

Boot Bracket
(Superseded to 02746100)

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 050369

Lanyard
(Superseded to 02746400)

$

$

Not available

9

Gravely 06807200

Rivet-Tubular .187 x .375 Steel-Aluminum

$

$

Not available

10

Gravely 050368

Pull Pin
(Superseded to 02746300)

$39.99

$

In Stock, only 2 left!

0

11

12710028

Skirt, Rubber

$

$

Not available

12

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 02752000

28/32-In. Boot
(Superseded to 52707200)

$

$

Not available

14

Gravely 53602100

40-In. Boot Assembly

$

$

Not available

15

Gravely 03640400

40-In. Boot

$

$

Not available

16

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

17

Gravely 050360

Tube Retainer Clip
(Superseded to 02750600)

$

$

Not available

18

Gravely 05970500

Bolt-Hex .31-24 x .75 Grade 8
(Superseded to 05902019)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 01609200

28- and 32-Inch Vane

$12.99

$

In Stock, only 2 left!

0

20

Gravely 06537000

Nut-Center-Lock .31-24

$

$

Not available

21

Gravely 03640100

Extension-Chute

$50.99

$

Usually ships in 4-12 days

0

22

Gravely 035832

40-In. Service Vane Package
(Superseded to 53504600)

$52.99

$

Usually ships in 4-12 days

0

23

Gravely 05970500

Bolt-Hex .31-24 x .75 Grade 8
(Superseded to 05902019)

$2.49

$

Usually ships in 4-12 days

0

24

05350460

40-In. Vane

$

$

Not available

25

Gravely 06537000

Nut-Center-Lock .31-24

$

$

Not available

26

Gravely 03599600

Upper Bagger Boot

$

$

Not available

27

Gravely 03026800

Tube
(Superseded to 04222800)

$95.99

$

In Stock, only 1 left!

0

28

Gravely 02770200

Hose Clamp

$45.99

$

Usually ships in 4-12 days

0
