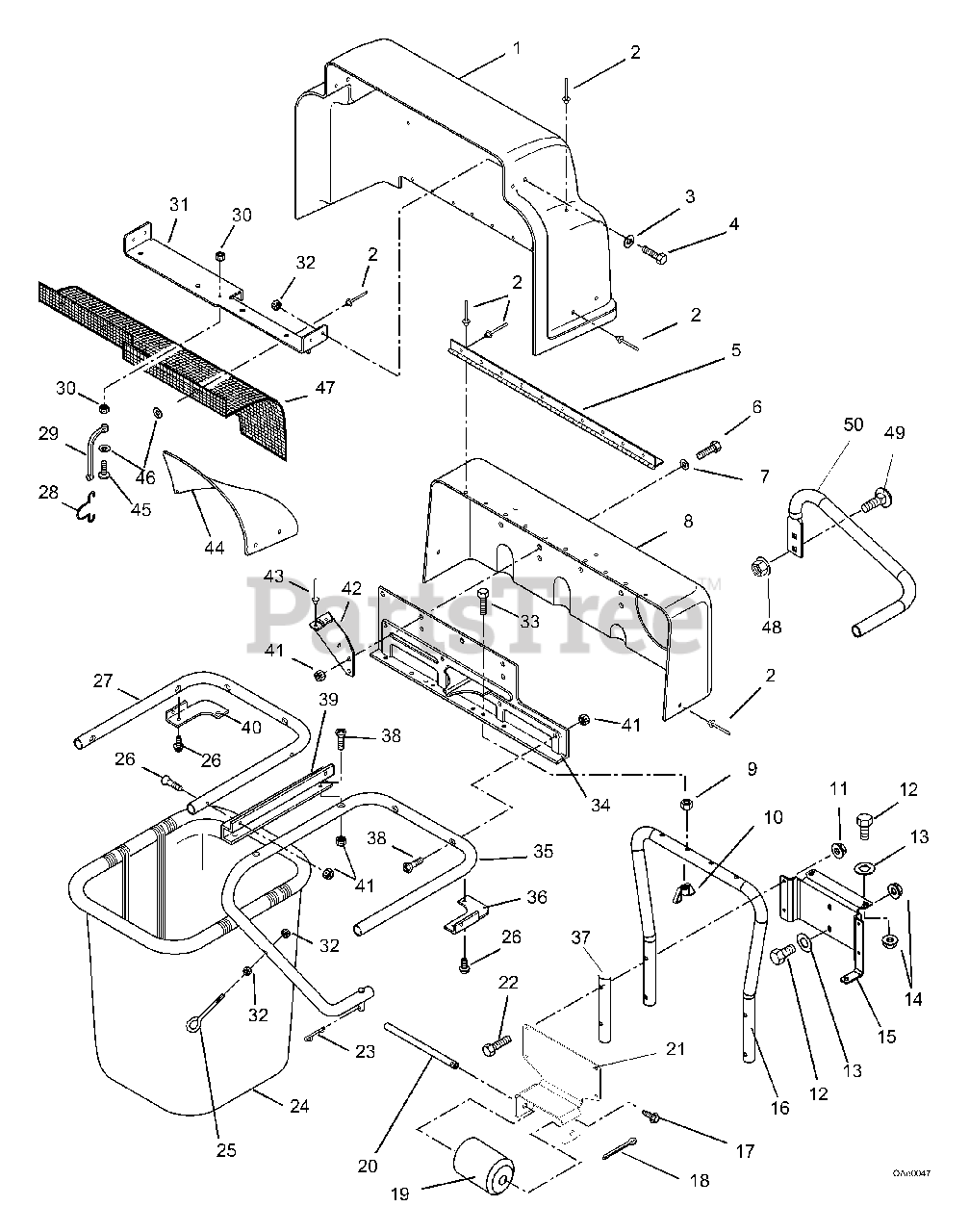

827016 - Gravely 40" Grass Bagger for Sport ZT Series (SN: 000101 - 009999) Grass Basket, Cover, And Roller Bracket Parts Diagram

40" Grass Bagger for Sport ZT Series

Grass Basket, Cover, And Roller Bracket Parts Diagram

  • Title

1

Gravely 52705600

Hinged Cover w/Decals

$

$

Not available

2

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 10

0

3

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 02725300

Hinge

$

$

Not available

6

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 2
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06439400

Washer-Flat-Steel .328 x .875 x .062

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 52705700

Stationary Cover

$

$

Not available

9

Gravely 06529200

Nut-Hex .31-18 Grade 2
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

10

Gravely 06537100

Nut-Wing .312-18

$5.99

$

In Stock, only 1 left!

0

11

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 52710700

Bracket, Bagger Mount

$

$

Not available

16

Gravely 02701251

Tube

$41.99

$

Usually ships in 4-12 days

0

17

Gravely 07412000

Screw
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06713100

Cotter Pin
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 09078100

Roller

$47.99

$

In Stock, only 1 left!

0

20

Gravely 09075300

Roll Pin

$38.99

$

In Stock, only 1 left!

0

21

Gravely 02776951

Bracket

$

$

Not available

22

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

23

Gravely 036075

Pin-Hair Internal .08 x .38 x 1.42
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 038328

Grass Bagger Basket
(Superseded to 02724400)

$79.99

$

Usually ships in 4-12 days

0

25

Gravely 02440100

Eyebolt

$10.99

$

Usually ships in 4-12 days

0

26

Gravely 07411500

Screw-Tapping .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 038325

Center Tube
(Superseded to 02724651)

$44.99

$

Usually ships in 4-12 days

0

28

Gravely 035830

Hook
(Superseded to 02738100)

$6.99

$

In Stock, Qty 5

0

29

Gravely 035829

Battery Strap
(Superseded to 07507500)

$14.99

$

Usually ships in 4-12 days

0

30

Gravely 06536000

Nut-Locking Top 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 02730600

Cover Bracket

$

$

Not available

32

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 05970900

Bolt-Hex .31-18 x 1.75 Full Thread

$2.99

$

Usually ships in 4-12 days

0

34

Gravely 02745800

Mounting Bracket

$

$

Not available

35

Gravely 02724800

Right Tube

$

$

Not available

36

Gravely 041089

Right Hand Corner Bracket
(Superseded to 02725000)

$

$

Not available

37

Gravely 02722700

Service Bar Brace (827016)
(Superseded to 02722751)

Note: (827016)

$14.99

$

Usually ships in 4-12 days

0

38

Gravely 06119100

Screw-Machine .31-18 x 1.50

$

$

Not available

39

Gravely 038323

Tube Bracket
(Superseded to 02724700)

$

$

Not available

40

Gravely 041090

Left Hand Corner Bracket
(Superseded to 02725100)

$

$

Not available

41

Gravely 06529800

Nut-Locking .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 041092

Brace
(Superseded to 02725200)

$

$

Not available

43

Gravely 041098

Rivet-Pop .187 x .527
(Superseded to 06803800)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 02731200

Baffle

$

$

Not available

45

Gravely 06119200

Screw-Machine 10-24 x .88

$

$

Not available

46

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

47

Gravely 01585600

Screen

$

$

Not available

48

Gravely 06534900

Nut-Flange, .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

50

Gravely 02782300

Support, 28-Inch Bagger Tube
(Superseded to 02782351)

$

$

Not available
