827016 - Ariens 40" Grass Bagger for RER and SportZoom Mowers (SN: 010000 & Above) Grass Basket, Cover, And Roller Bracket Parts Diagram

40" Grass Bagger for RER and SportZoom Mowers

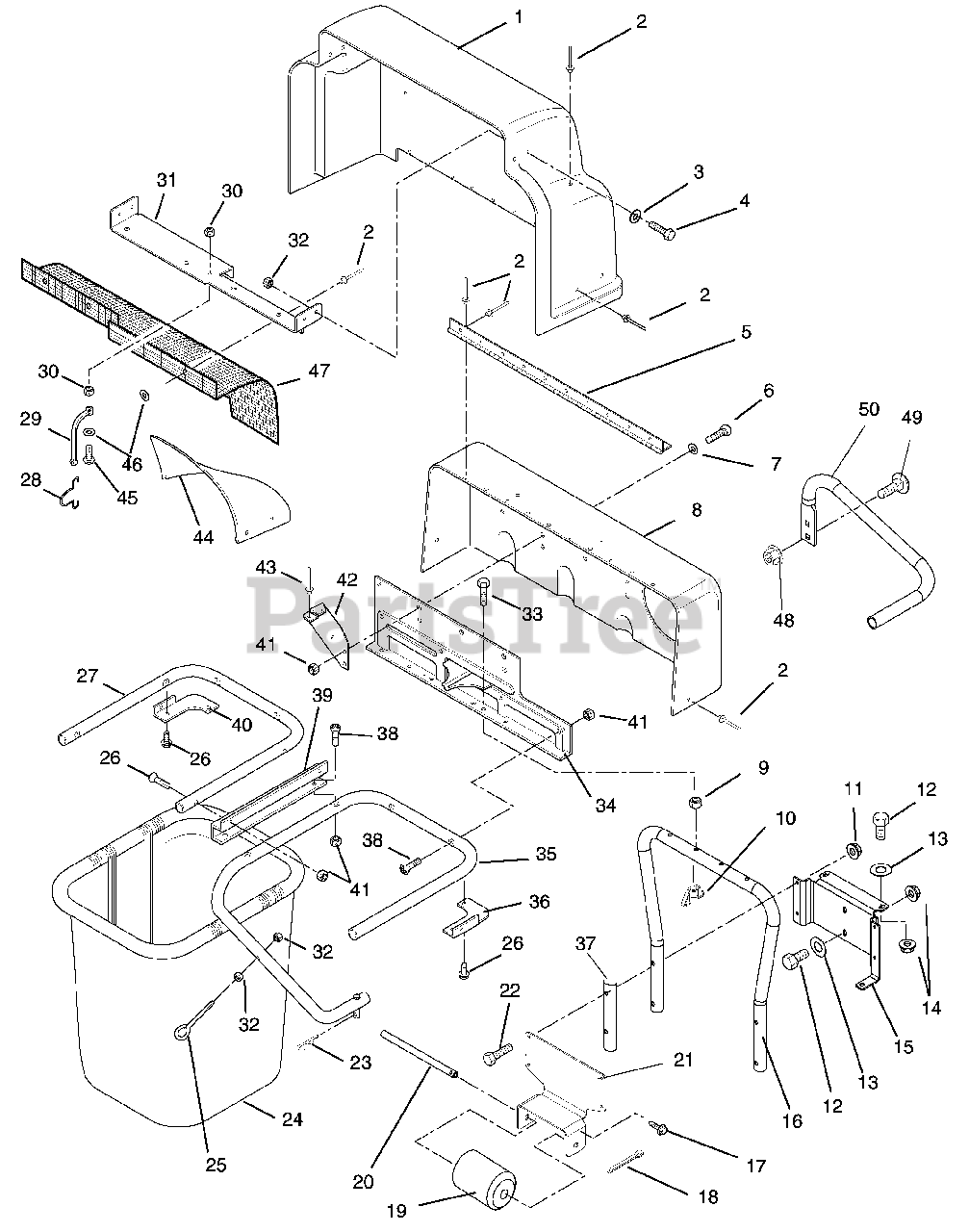

Grass Basket, Cover, And Roller Bracket Parts Diagram

  • Title

1

Ariens 52705600

HINGED COVER W/DECALS

$

$

Not available

2

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

3

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 02725300

HINGE

$

$

Not available

6

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 52705700

STATIONARY COVER

$

$

Not available

9

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

10

Ariens 06537100

NUT-NYLK WING .312-18 YWZC

$5.99

$

In Stock, only 1 left!

0

11

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 52710700

ASSY,MOUNT BRACKET

$

$

Not available

16

Ariens 02701251

TUBE

$41.99

$

Usually ships in 4-12 days

0

17

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06713100

@PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 09078100

ROLLER

$47.99

$

In Stock, only 1 left!

0

20

Ariens 09075300

PIN

$38.99

$

In Stock, only 1 left!

0

21

Ariens 02776951

BRACKET, ROLLER

$

$

Not available

22

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

23

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 02724400

GRASS BAGGER BASKET

$79.99

$

Usually ships in 4-12 days

0

25

Ariens 02440100

EYEBOLT

$10.99

$

Usually ships in 4-12 days

0

26

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 02724651

CENTER TUBE

$44.99

$

Usually ships in 4-12 days

0

28

Ariens 02738100

HOOK

$6.99

$

In Stock, Qty 5

0

29

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

30

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 02730600

COVER BRACKET

$

$

Not available

32

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 05970900

BLT-HEX .31-18X1.75 FLTHD YWZC

$2.99

$

Usually ships in 4-12 days

0

34

Ariens 02745800

MOUNTING BRACKET

$

$

Not available

35

Ariens 02724800

RIGHT TUBE

$

$

Not available

36

Ariens 02725000

RH CORNER BRACKET

$

$

Not available

37

Ariens 02722700

BRACE
(Superseded to 02722751)

Note: (827016)

$14.99

$

Usually ships in 4-12 days

0

38

Ariens 06119100

SCR-MCH .31-18 X 1.50 YWZC

$

$

Not available

39

Ariens 02724700

TUBE BRACKET

$

$

Not available

40

Ariens 02725100

LH CORNER BRACKET

$

$

Not available

41

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 02725200

BRACE

$

$

Not available

43

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

44

Ariens 02731200

BAFFLE

$

$

Not available

45

Ariens 06119200

SCR-MCH 10-24X.88 SLRH YWZC

$

$

Not available

46

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

47

Ariens 01585600

SCREEN, BAGGER

$

$

Not available

48

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

50

Ariens 02782300

SUPPORT, 28" BAGGER TUBE
(Superseded to 02782351)

$

$

Not available
