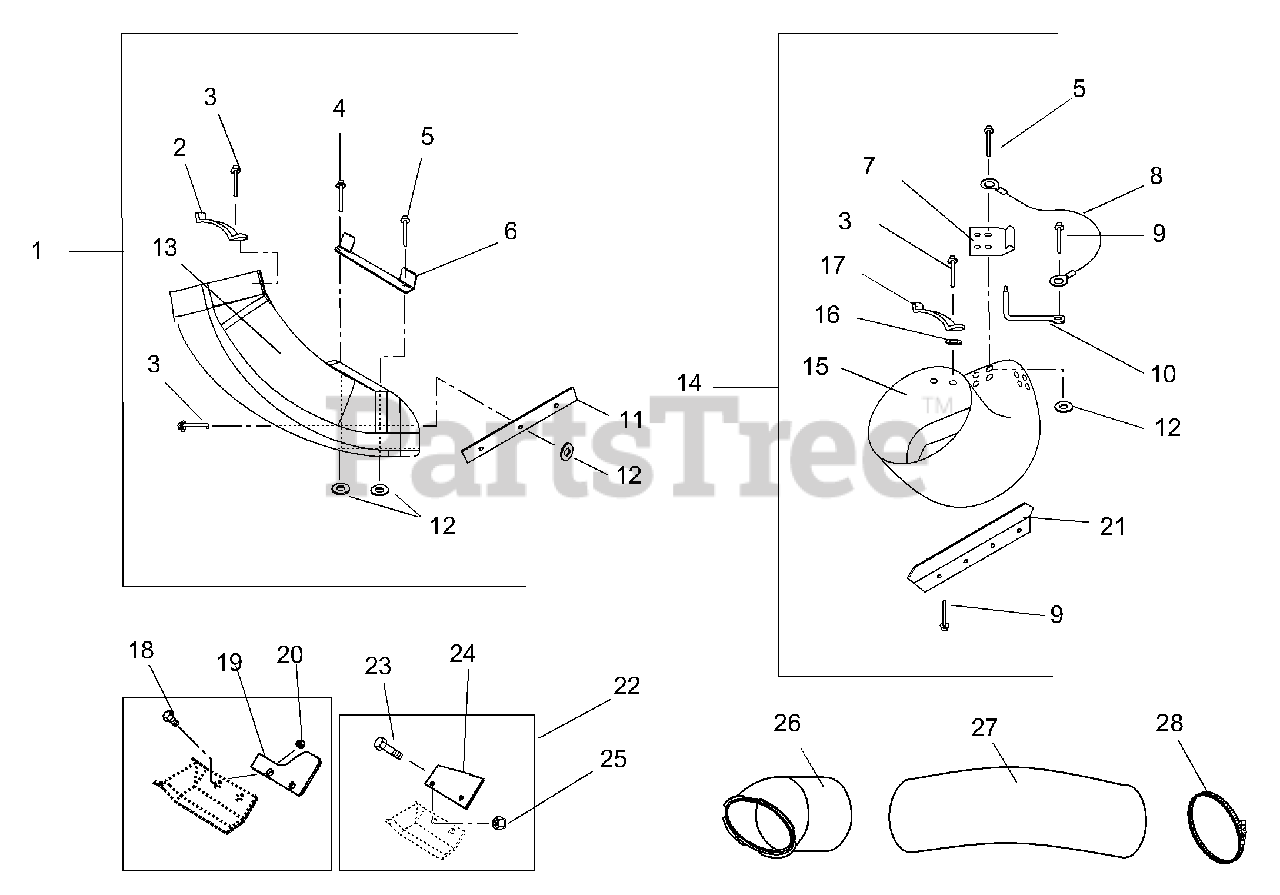

827016 - Ariens 40" Grass Bagger for RER and SportZoom Mowers (SN: 000101 - 009999) Boots, Vanes, And Tube Parts Diagram

40" Grass Bagger for RER and SportZoom Mowers

Boots, Vanes, And Tube Parts Diagram

  • Title
1

Ariens 62728100

BOOT, 28"&32" DECK BAGGER
(Superseded to 52711700)

$

$

Not available

2

Ariens 02750600

TUBE RETAINER CLIP

Note: (050360 - Gravely Part Number)

$

$

Not available

3

Ariens 06803800

RVT-POP.187X.527 DOME ST

Note: (041098 - Gravely Part Number)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06803900

RVT-POP.187X.277 DOME ST

Note: (050367 - Gravely Part Number)

$

$

Not available

5

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

6

Ariens 02770051

BRKT, BAGGER BOOT MOUNT

$

$

Not available

7

Ariens 02746100

BOOT BRACKET

Note: (050363 - Gravely Part Number)

$17.99

$

Usually ships in 4-12 days

0

8

Ariens 02746400

LANYARD

Note: (050369 - Gravely Part Number)

$

$

Not available

9

Ariens 06807200

RVT-TBLR .187X.375 ST-AL PL

$

$

Not available

10

Ariens 02746300

PULL PIN

Note: (050368 - Gravely Part Number)

$39.99

$

In Stock, only 2 left!

0

11

Ariens 02774700

SKIRT, RUBBER

$

$

Not available

12

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

13

Ariens 02752000

28"/32" BOOT ASSY
(Superseded to 52707200)

$

$

Not available

14

Ariens 53602100

MOWER BOOT ASSY- 40"

$

$

Not available

15

Ariens 03640400

PAN BOOT ASSEMBLY

$

$

Not available

16

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

17

Ariens 02750600

TUBE RETAINER CLIP

Note: (050360 - Gravely Part Number)

$

$

Not available

18

Ariens 05970500

BLT-HEX .31-24X.75 GR8 YWZC
(Superseded to 05902019)

$2.49

$

Usually ships in 4-12 days

0

19

$12.99

$

In Stock, only 2 left!

0

20

Ariens 06537000

NUT-CTRLK .31-24 YWZC

$

$

Not available

21

Ariens 03640100

EXTENSION-CHUTE

$50.99

$

Usually ships in 4-12 days

0

22

Ariens 53504600

SERVICE VANE PACKAGE

$52.99

$

Usually ships in 4-12 days

0

23

Ariens 05970500

BLT-HEX .31-24X.75 GR8 YWZC
(Superseded to 05902019)

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 03536300

VANE
(Superseded to 53504600)

$52.99

$

Usually ships in 4-12 days

0

25

Ariens 06537000

NUT-CTRLK .31-24 YWZC

$

$

Not available

26

Ariens 03599600

BAGGER BOOT - UPPER

$

$

Not available

27

Ariens 03026800

HOSE 7X38
(Superseded to 04222800)

$95.99

$

In Stock, only 1 left!

0

28

Ariens 02770200

CLAMP, 7" TOOL-LESS HOSE

$45.99

$

Usually ships in 4-12 days

0
