827008 - Ariens 32" Rear Grass Collector (SN: 000101 & Above) Grass Collector 32" Parts Diagram

32" Rear Grass Collector

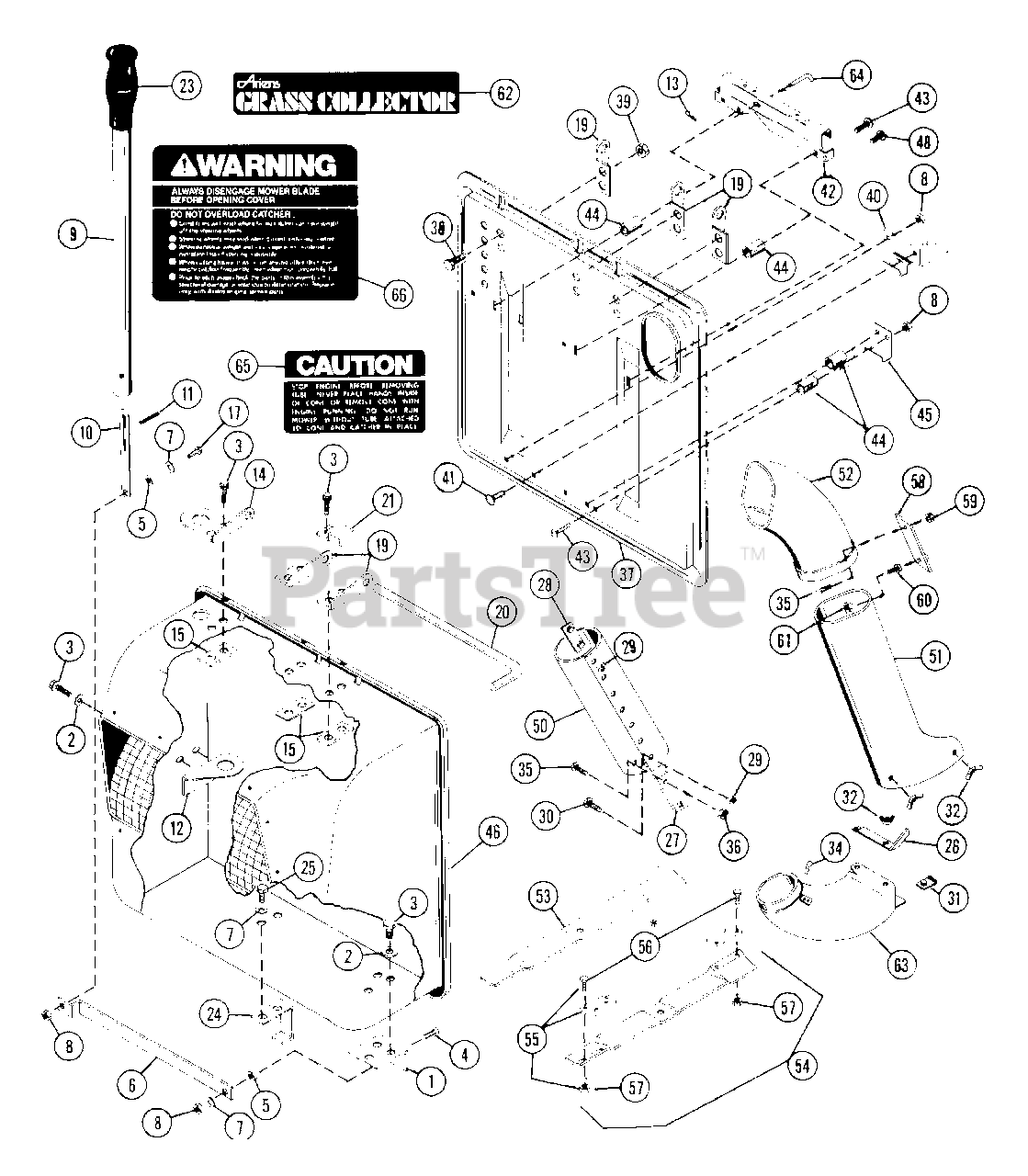

Grass Collector 32" Parts Diagram

  • Title

1

Ariens 02710500

LATCH PIVOT

$

$

Not available

2

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$

$

Not available

3

Ariens 07002200

BLT-SCRHFWH .25-20X.62 PL

$

$

Not available

4

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 02700900

SPACER
(Superseded to 01035800)

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 02710600

LATCH BAR

$

$

Not available

7

Ariens 06406700

WSHR-FL-STL .390X.875X.18 PL
(Superseded to 06436800)

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 02710700

TUBE .85 X 1.00 X 36.00

$11.99

$

Usually ships in 4-12 days

0

10

Ariens 02710800

PLUNGER

$

$

Not available

11

Ariens 05802100

PIN-ROLL .188X1.13

$1.99

$

Usually ships in 4-12 days

0

12

Ariens 02710900

DUMP LEVER BRACKET

$

$

Not available

13

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 02711000

LEVER GUIDE BRACKET

$

$

Not available

15

Ariens 02711100

HINGE PLATE

$

$

Not available

16

Ariens 07401900

SCR-TAP.250-20X.62 HWH BLK ZC
(Superseded to 07410400)

$2.49

$

In Stock, Qty 13

0

17

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 02710000

HINGE

$

$

Not available

20

Ariens 02711200

HINGE PIN

$

$

Not available

21

Ariens 02711300

HINGE PIN CLIP

$

$

Not available

23

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

24

Ariens 02712200

STOP

$

$

Not available

25

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

32

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

35

Ariens 06101700

SCR-MCH 10-24X.62 SLRH PL

$

$

Not available

37

Ariens 02709900

COVER

$

$

Not available

38

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 02710200

LOWER MOUNTING BRACKET

$

$

Not available

41

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

42

Ariens 02710100

BRACKET

$

$

Not available

46

Ariens 62704800

BUCKET ASSEMBLY
(Superseded to 52704800)

$

$

Not available

48

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

51

Ariens 02721700

LOWER COLLECTOR BOOT
(Superseded to 52704900)

$

$

Not available

55

Ariens 52701100

SERVICE VANE PACKAGE

$45.99

$

Usually ships in 4-12 days

0

56

Ariens 05920600

BLT-HEX .31-24X.75 GR8
(Superseded to 05970500)

$2.49

$

Usually ships in 4-12 days

0

57

Ariens 06514500

NUT-LK TOP .312-24 PL GR C

$

$

Not available

58

Ariens 02711800

LATCH STRAP

$

$

Not available

59

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

60

Ariens 02711900

PLUG

$

$

Not available

61

Ariens 06502800

NUT-LK 10-32 NY PL
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

62

Ariens 07852200

ARIENS GRASS COLLECTOR DECAL

$

$

Not available

64

Ariens 02510000

CLEVIS PIN
(Superseded to 00212300)

$3.49

$

In Stock, only 3 left!

0

65

Ariens 07848700

WARNING DECAL
(Superseded to 05359700)

$18.99

$

Usually ships in 4-12 days

0

66

Ariens 07867200

CAUTION DECAL

$

$

Not available
