827005 - Ariens Rear Grass Bagger (SN: 000101 & Above) Grassbagger - 26" Parts Diagram

Rear Grass Bagger

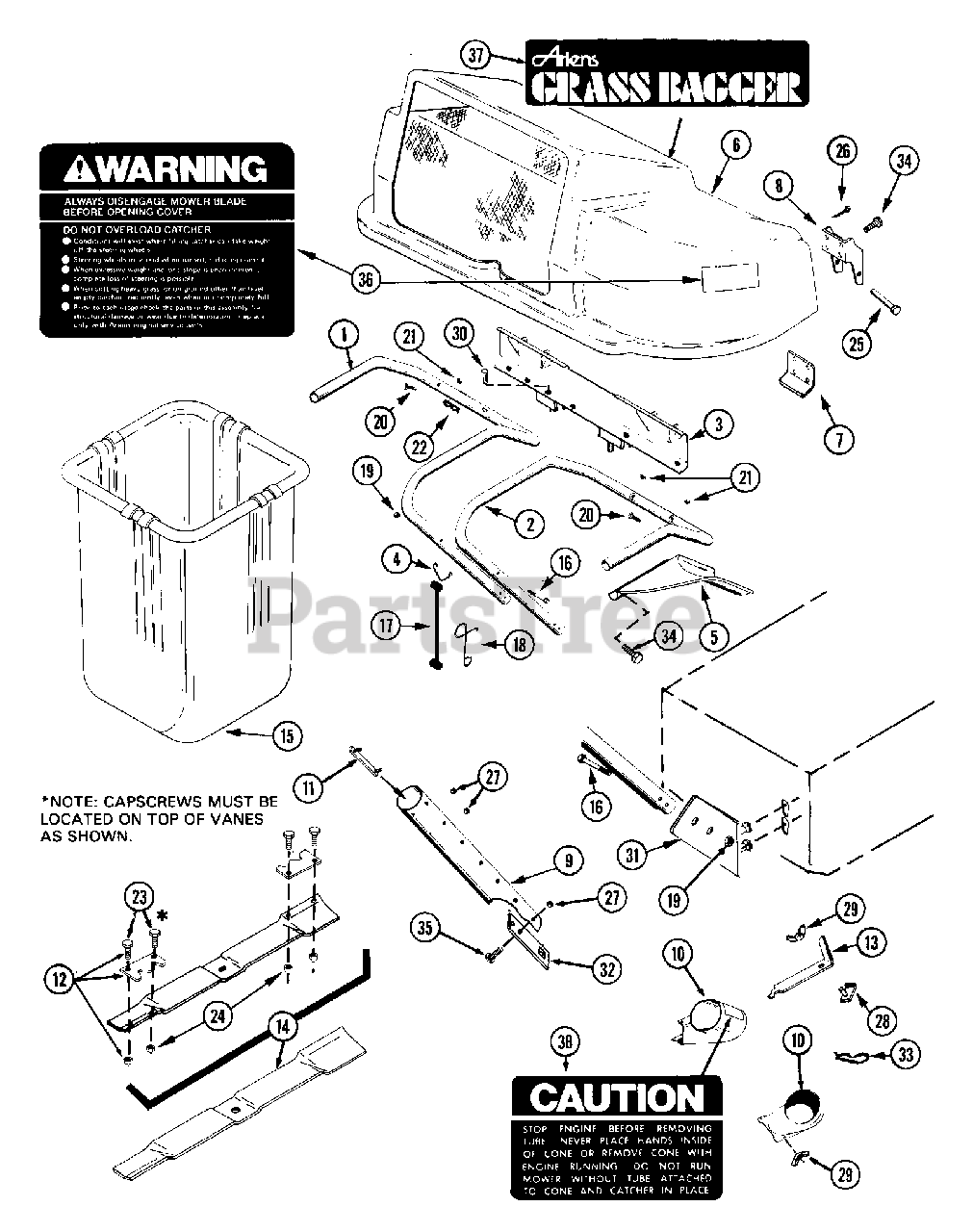

Grassbagger - 26" Parts Diagram

  • Title
1

Ariens 02536800

TUBE L.H. SUPPORT

$

$

Not available

2

Ariens 02530900

TUBE R.H. SUPPORT

$

$

Not available

3

$

$

Not available

4

$

$

Not available

5

Ariens 02531300

SUPPORT TUBE
(Superseded to 02537100)

$

$

Not available

6

Ariens 62503100

GRASS CATCHER COVER ASSEMBLY
(Superseded to 52504000)

$

$

Not available

7

Ariens 02534800

RETAINER

$

$

Not available

8

$

$

Not available

9

Ariens 02713100

TUBE BLANK

$

$

Not available

10

Ariens 62504600

GRASS CATCHER BOOT ASSEMBLY
(Superseded to 52504100)

$

$

Not available

11

$

$

Not available

13

Ariens 02532400

STRAP CONE

$

$

Not available

14

Ariens 01227000

MOWER BLADE
(Superseded to 02722400)

$51.99

$

Usually ships in 4-12 days

0

15

$

$

Not available

16

Ariens 05904600

BLT-HEX .25-20X2.25 GR2
(Superseded to 05956700)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

18

Ariens 02533100

HOOK
(Superseded to 02738100)

$6.99

$

In Stock, Qty 5

0

19

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06105200

SCR-MCH .31-18X1.50 CROVCNTRS
(Superseded to 06119100)

$

$

Not available

21

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

25

Ariens 02531700

CLEVIS PIN

$

$

Not available

26

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 02532300

CLIP CONE

$

$

Not available

29

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

30

Ariens 02537300

CLEVIS PIN

$

$

Not available

31

Ariens 01226300

BRACKET MOUNTING

$

$

Not available

32

Ariens 02539700

STRAP
(Superseded to 53506100)

$

$

Not available

33

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

34

Ariens 07002200

BLT-SCRHFWH .25-20X.62 PL

$

$

Not available

35

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 07848700

WARNING DECAL
(Superseded to 05359700)

$18.99

$

Usually ships in 4-12 days

0

37

Ariens 07848500

ARIENS GRASS BAGGER DECAL
(Superseded to 07796500)

$

$

Not available

38

Ariens 07867200

CAUTION DECAL

$

$

Not available
