8270 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1979) HANDLE AND GRASSCATCHER GROUP-MODELS 8270 Parts Diagram

Walk-Behind Mower

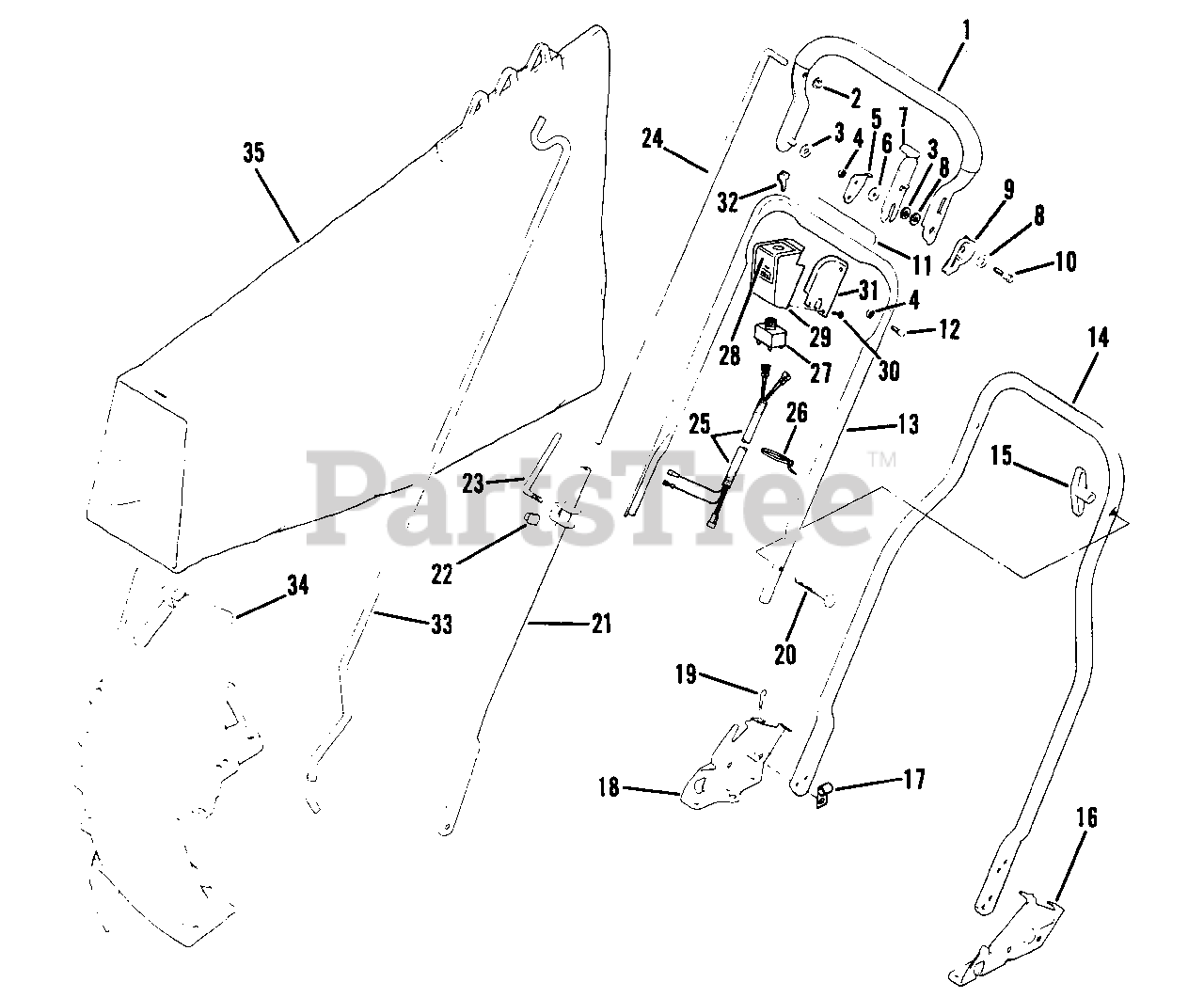

HANDLE AND GRASSCATCHER GROUP-MODELS 8270 Parts Diagram

  • Title

1

Lawn-Boy 681607

Handle & Grip Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 605546

Palnut
(Superseded to 32112-11)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

3

Lawn-Boy 306359

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 602315

Nut-Lock

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 609689

Stop-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609460

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 609463

Lever-Lockout

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$62.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 303254

Washer
(Superseded to 121-4605)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 609544

Guard-Lever
(Superseded to 610431)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 606144

Bolt-Shoulder

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 608958

Decal

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 609461

Screw-Stop

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 607669

Handle-Center

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$95.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 607545

Handle Section-Bottom
(Superseded to 612787)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 607544

Knob

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 681781

Bracket-Handle L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 609604

Clamp

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Model 8237AE Only

$

$

Not available

18

Lawn-Boy 681780

Bracket-Handle R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$102.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 605803

Hair Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 607543

Screw
(Superseded to 611184)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$8.49

$

In Stock, only 2 left!

0

21

Lawn-Boy 679661

Control Lever Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 602992

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 603699

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 607660

Control Rod

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 681670

Wire Harness Assembly Switch

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Model 8237AE Only

$

$

Not available

26

Lawn-Boy 320107

Cable Tie
(Superseded to 614249)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Model 8237AE Only

$1.49

$

In Stock, only 2 left!

0

27

Lawn-Boy 681679

Key Switch
(Superseded to 682857)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Model 8237AE Only

$148.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 609248

Decal-Switch

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Model 8237AE Only

$

$

Not available

29

Lawn-Boy 609730

Housing-Switch

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Model 8237AE Only

$32.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 609022

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Model 8237AE Only

$

$

Not available

31

Lawn-Boy 609039

Retaining Plate-Switch Housing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Model 8237AE Only

$

$

Not available

32

Lawn-Boy 609269

Keys-Switch

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Model 8237AE Only

$

$

Not available

33

Lawn-Boy 607561

Rod-Grass Bag

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 679487

Chute Assembly
(Superseded to 99-6411)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 679966

Bag Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available
