827 E (1696042) - John Deere 27" Snow Thrower (2011) Handles & Controls Group Parts Diagram

27" Snow Thrower

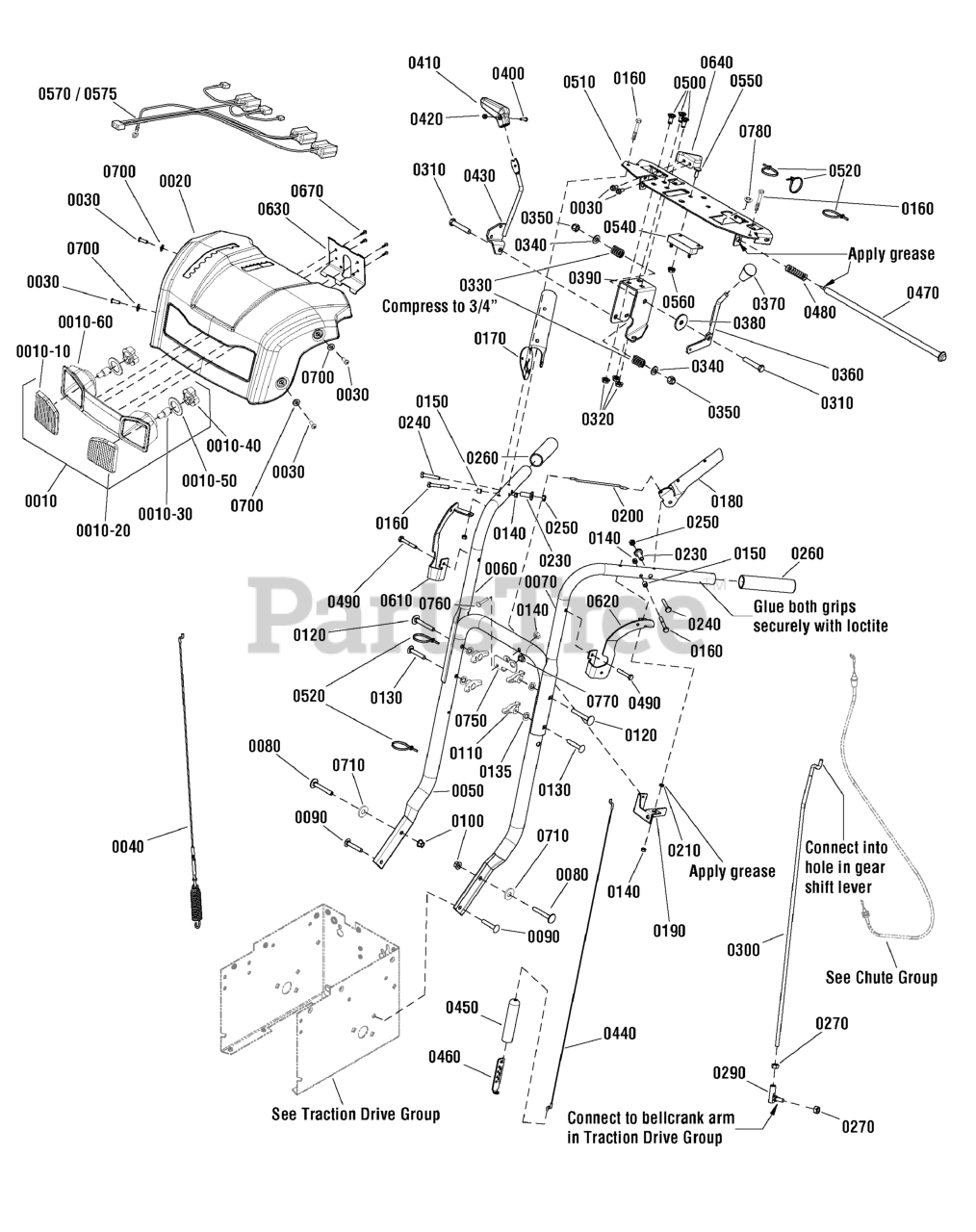

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 1739686YP

LIGHT BAR ASSEMBLY

$90.99

$

Usually ships in 2-12 days

0

0010-10

LENS, RH

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0010-20

LENS, LH

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0010-30

Murray 1739689YP

LAMP, Halogen, 12V 20W

$

$

Not available

0010-40

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

$10.99

$

Usually ships in 2-12 days

0

0010-50

GASKET, Single, Twin Light

Note: (Not a serviceable part, included with Ref. No. 0010-40)

$

$

Not available

0010-60

BEZEL, Light, Panel

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0020

Murray 1739685FYP

COVER, Panel, Gear, Remote Deflector

$102.99

$

Usually ships in 2-12 days

0

0030

Murray 1960556SM

SCREW, Pan Head, Torx, 1/4-20 x 3/4, Taptite

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 1737544YP

CABLE & SPRING ASSEMBLY, Auger Drive, RH
(Superseded to 703221)

$24.99

$

In Stock, only 4 left!

0

0050

Murray 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0060

Murray 1734587ASM

HANDLE, Upper, R.H.

$51.99

$

Usually ships in 2-12 days

0

0070

Murray 1734586ASM

HANDLE, Upper, L.H.

$55.99

$

In Stock, only 1 left!

0

0080

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0090

Murray 1664847SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1960684SM

NUT, Hex Keps, 5/16-18, Conical Washer
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0110

Murray 7035744YP

WINGKNOB, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0120

Murray 1750299YP

BOLT, Carriage, Locking, 5/16-18 x 2-1/4
(Superseded to 703168)

$3.99

$

In Stock, only 4 left!

0

0130

Murray 7091189YP

BOLT, Carriage. 5/16-18 x 2, G2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

0135

Murray 7090391SM

WASHER, Locking, Internal Teeth, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 1678392SM

SPACER, 17/64 ID x 3/8 OD x 11/32 Lg
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0140

Murray 1920397SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0160

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0170

Murray 1739783BMYP

LEVER, Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0180

Murray 1739782BMYP

LEVER, Clutch, LH
(Superseded to 1739782AYP)

$

$

Not available

0190

Murray 1733505BMYP

BRKT, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Murray 1736360YP

ROD, Hold Down, 5/32 Dia., 5-5/8 Lg

$11.99

$

Usually ships in 2-12 days

0

0210

Murray 1733095SM

SPACER, 1/4 ID

$4.49

$

Usually ships in 2-12 days

0

0230

Murray 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Murray 1750554YP

BOLT, Shoulder, Hex Washer Head, 1/4 x 1-9/32

$4.99

$

In Stock, only 1 left!

0

0250

Murray 1933896SM

NUT, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0260

Murray 1726317SM

HAND GRIP, Heated 1" Dia. x 5-1/4 Lg

$8.49

$

In Stock, only 1 left!

0

0270

Murray 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0290

Murray 1739290YP

BALL JOINT, Quick Release
(Superseded to 703224)

$21.99

$

In Stock, only 2 left!

0

0300

Murray 1734354SM

ROD, 9/32 Dia. X 25-3/8 Lg
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0310

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0320

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Murray 50786MA

SPRING, 1/2 Dia. x 3/4

$5.49

$

Usually ships in 2-12 days

0

0340

Murray 1918266SM

WASHER, 3/8 x 13/16 OD
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0350

Murray 1919439SM

NUT, Hex Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0360

Murray 1736192YP

LEVER, Deflector Control

$13.99

$

Usually ships in 2-12 days

0

0370

Murray 1732470SM

KNOB, Threaded, 3/8-16 13/16 Dia.

$19.99

$

In Stock, Qty 6

0

0380

Murray 7014527YP

SPACER, 3/8 ID x 5/8 OD x 1/4"

$4.49

$

Usually ships in 2-12 days

0

0390

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0400

Murray 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0410

Murray 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0420

Murray 1933896SM

NUT, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Murray 1736836YP

SPEED LEVER ASSEMBLY
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0440

Murray 1502113MA

CABLE, Handle

$22.99

$

In Stock, Qty 20+

0

0450

Murray 308146MA

BOOT, Spring End Cover, 4-1/16 Lg

$6.49

$

Usually ships in 2-12 days

0

0460

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0470

Murray 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0480

Murray 2108360SM

SPRING, Compression, 017/32 ID x 2-1/4 Lg

$5.49

$

In Stock, only 1 left!

0

0490

Murray 1927429SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0500

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0510

Murray 1739500BMYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0520

Murray 1701011SM

TIE-SELF LOCKING .184WD 7.31LG BLACK ZY

$5.49

$

In Stock, only 2 left!

0

0540

Murray 1724037SM

RESISTOR BLOCK,Hand Warmers, 1-17/32 x 3-1/16

$39.99

$

Usually ships in 2-12 days

0

0550

Murray 1931317SM

BOLT, Carriage, 1/4-20 x 3/4 G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0560

Murray 1960685SM

NUT, Hex KEPS, Conical Washer, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0570

Murray 1738286YP

HARNESS

$25.99

$

Usually ships in 2-12 days

0

0575

Murray 1750776YP

HARNESS, To AME

$29.99

$

Usually ships in 2-12 days

0

0610

Murray 1739664BMYP

BRACKET, Mounting, Dash, R.H.

$22.99

$

Usually ships in 2-12 days

0

0620

Murray 1739663BMYP

BRACKET, Mounting, Dash, L.H.

$17.99

$

Usually ships in 2-12 days

0

0630

Murray 1739666BMYP

BRACKET, Light Mounting

$15.99

$

Usually ships in 2-12 days

0

0640

Murray 1739483BMYP

POD, Chute Rotation, R.H.
(Superseded to 1739483AYP)

$35.99

$

Usually ships in 2-12 days

0

0670

Murray 7091105YP

SCREW, Hex Washer Machine, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0700

Murray 1921319SM

WASHER, 1/4 x 5/8 OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0710

Murray 71071MA

WASHER, Flat, .349
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

0750

Murray 1735589YP

BRACKET, Rod Support

$9.49

$

Usually ships in 2-12 days

0

0760

Murray 1931323SM

BOLT, Carriage, 1/4-20 x 2

$4.49

$

Usually ships in 2-12 days

0

0770

Murray 1501874MA

BUSHING, Chute Crank

$4.99

$

In Stock, only 1 left!

0

0780

Murray 1667588SM

BUSHING, Nylon, 3/8 ID x 7/16 OD

$5.99

$

In Stock, Qty 20+

0

0945

Murray 1735589YP

BRACKET, Rod Support

$9.49

$

Usually ships in 2-12 days

0

0950

Murray 1931323SM

BOLT, Carriage, Short Neck, 1/4-20 x 2, G5

$4.49

$

Usually ships in 2-12 days

0

0955

Murray 1501874MA

BUSHING, Chute Crank

$4.99

$

In Stock, only 1 left!

0

0960

Murray 1667588SM

BUSHING, Nylon, 3/8 ID x 1/2 OD x 2"

$5.99

$

In Stock, Qty 20+

0
