827 E (1696042) - John Deere 27" Snow Thrower (2011) Chute & Rotation Group Parts Diagram

27" Snow Thrower

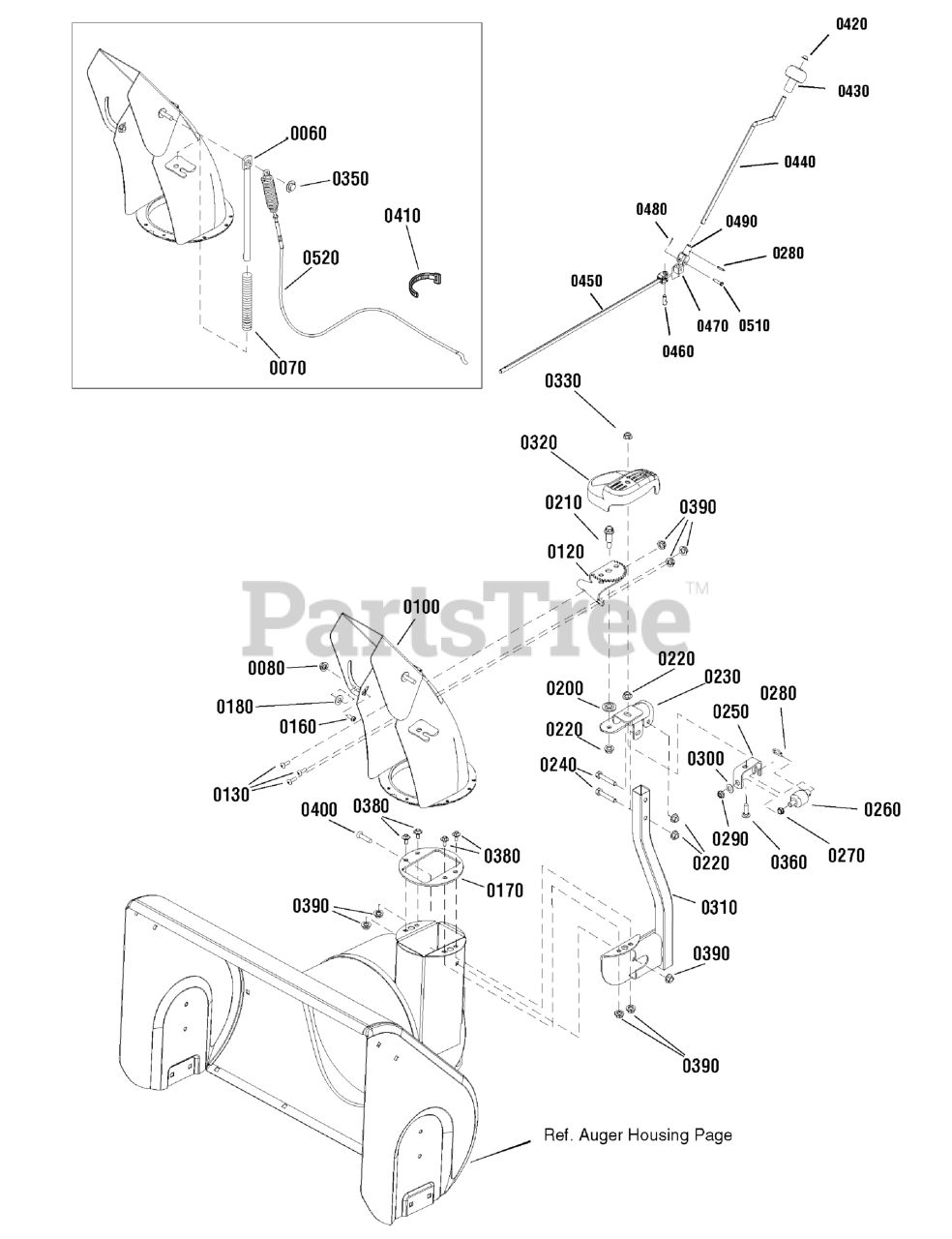

Chute & Rotation Group Parts Diagram

  • Title

0060

Murray 1734708ASM

ROD, 5/16 x 5-7/8

$13.99

$

Usually ships in 2-12 days

0

0070

Murray 1734647SM

SPRING, Compression, 6-1/16
(Superseded to 703135)

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0100

Murray 1735761FYP

CHUTE ASSEMBLY

$159.99

$

Usually ships in 2-12 days

0

0120

Murray 1736038YP

GEAR & CHUTE SUPPORT
(Superseded to 704325)

$31.99

$

Usually ships in 2-12 days

0

0130

Murray 1960715SM

SCREW, Truss-Head, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0160

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0170

Murray 1735767YP

GUIDE, Chute Ring

$6.49

$

Usually ships in 2-12 days

0

0180

Murray 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, only 3 left!

0

0200

Murray 1733026SM

WASHER, 1/2

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 1732412SM

BOLT, Shoulder, 5/16-18 x 5/8, G5

$15.99

$

Usually ships in 2-12 days

0

0220

Murray 1960684SM

NUT, Hex Conical Washer KEPS, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0230

Murray 1734423ASM

SUPPORT, Gear Crank

$19.99

$

Usually ships in 2-12 days

0

0240

Murray 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0250

Murray 1734440SM

SUPPORT, Worm

$7.99

$

Usually ships in 2-12 days

0

0260

Murray 1734439SM

WORM, Chute, 2-1/2, LH

$35.99

$

Usually ships in 2-12 days

0

0270

Murray 1667588SM

BUSHING, 3/8ID x 7/16 OD x 7/32

$5.99

$

In Stock, Qty 20+

0

0280

Murray 1501293MA

PIN, Hair, Chute Gear

$4.99

$

Usually ships in 2-12 days

0

0290

Murray 1960762SM

NUT, Hex, 3/8-24

$4.99

$

Usually ships in 2-12 days

0

0300

Murray 1734542SM

WASHER, Cup, 3/8

$5.49

$

Usually ships in 2-12 days

0

0310

Murray 1736195AYP

CHUTE SUPPORT ASSEMBLY

$74.99

$

Usually ships in 2-12 days

0

0320

Murray 1734442SM

COVER, Gears

$7.99

$

In Stock, only 2 left!

0

0330

Murray 1935048SM

NUT, Hex Flange Two Way Locking, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0350

Murray 1932718SM

NUT, Push, 5/16 Dia.
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

0360

Murray 1928698SM

NUT, Hex Top Lock, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

0380

Murray 691005

CAPSCREW, Hex Washer
(Superseded to 594618)

$3.99

$

In Stock, Qty 20+

0

0390

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0400

Murray 02X101MA

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

0410

Murray 1701011SM

TIE, Self Locking, 15" Long

$5.49

$

In Stock, only 2 left!

0

0420

Murray 1960093SM

NUT, Push, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

0430

Murray 1714084SM

KNOB, Spinner, .3/8 ID x 2-1/2

$12.99

$

In Stock, only 1 left!

0

0440

Murray 1735661YP

CRANK, Chute Handle

$14.99

$

Usually ships in 2-12 days

0

0450

Murray 1735660YP

ROD & YOKE ASSEMBLY
(Superseded to 703173)

$27.99

$

Usually ships in 2-12 days

0

0460

Murray 578060MA

PIN, 3/8 x 1

$7.49

$

Usually ships in 2-12 days

0

0470

Murray 578063MA

BLOCK, Universal, Pivot

$5.49

$

In Stock, only 4 left!

0

0480

Murray 579493MA

PIN, Cotter, 5/8 x 1/2

$4.49

$

In Stock, only 1 left!

0

0490

Murray 1733611SM

ASSEMBLY, Yoke & Tube, Chute

$35.99

$

In Stock, only 1 left!

0

0510

Murray 578309MA

PIN, Clevis, 1/4 x 1-3/32

$5.49

$

In Stock, Qty 8

0

0520

Murray 1732971SM

CABLE & SPRING ASSEMBLY, Auger Drive, RH
(Superseded to 1750623YP)

$49.99

$

In Stock, only 4 left!

0
