827 E (1695646) - John Deere 27" Snow Thrower (2009) Wheel & Tire Group Parts Diagram

27" Snow Thrower

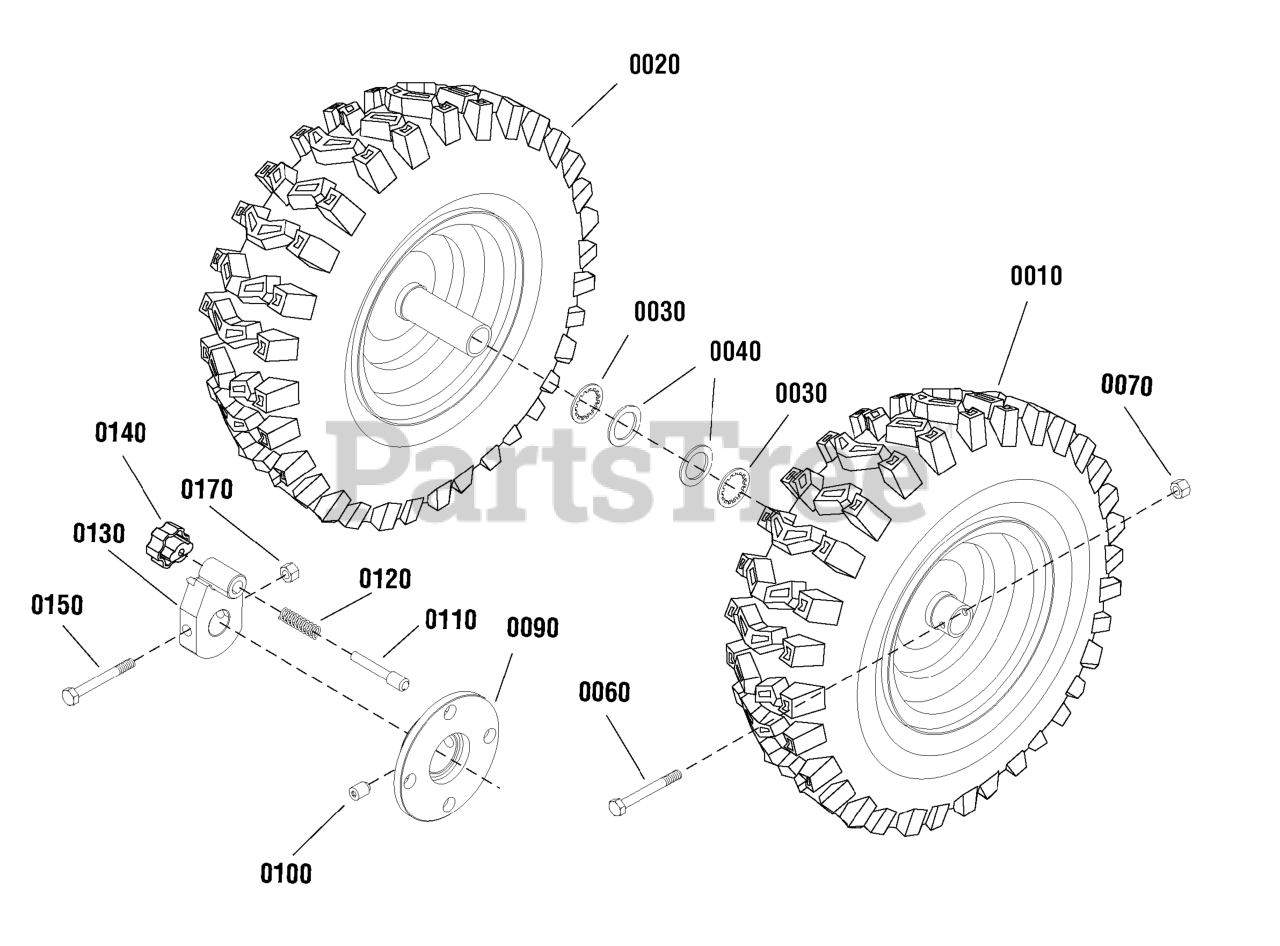

Wheel & Tire Group Parts Diagram

  • Title

0010

Murray 1735357YP

WHEEL, 4.80-8, NHS 2PR X-TRAC, JDY, L.H.

$189.99

$

In Stock, only 1 left!

0

0020

Murray 1735358YP

WHEEL, 4.80-8, NHS 2PR X-TRAC JDY, R.H.

$

$

Not available

0030

Murray 1657528SM

RETAINING RING, External, Self Lock, #75, 3/4

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 20+

0

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/2, G5

$4.99

$

In Stock, only 1 left!

0

0070

Murray 15X145MA

NUT, HEx, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 1501032EMA

DISC, Wheel Lock

$32.99

$

Usually ships in 2-12 days

0

0100

Murray 2001066MA

CAPSCREW, Hex, 3/8-16 x 1/2

$5.49

$

In Stock, Qty 20+

0

0110

Murray 1501856YZMA

PIN, Wheel Lock 3/8 Dia. x 1/4-20 x 11/16

$15.99

$

In Stock, Qty 10

0

0120

Murray 164X34MA

SPRING, Compression

$5.99

$

In Stock, Qty 14

0

0130

Murray 1501857MA

HUB, Wheel Lock

$34.99

$

In Stock, Qty 11

0

0140

Murray 1501855MA

KNOB, Wheel Lock

$13.99

$

In Stock, Qty 12

0

0150

Murray 73839MA

SCREW, 1/4-20 x 2-1/4, G8

$5.49

$

In Stock, Qty 7

0

0170

Murray 1920397SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
