827 (190-827-100) - Cub Cadet Sleeve Hitch att Sleeve Hitch Parts Diagram

Sleeve Hitch

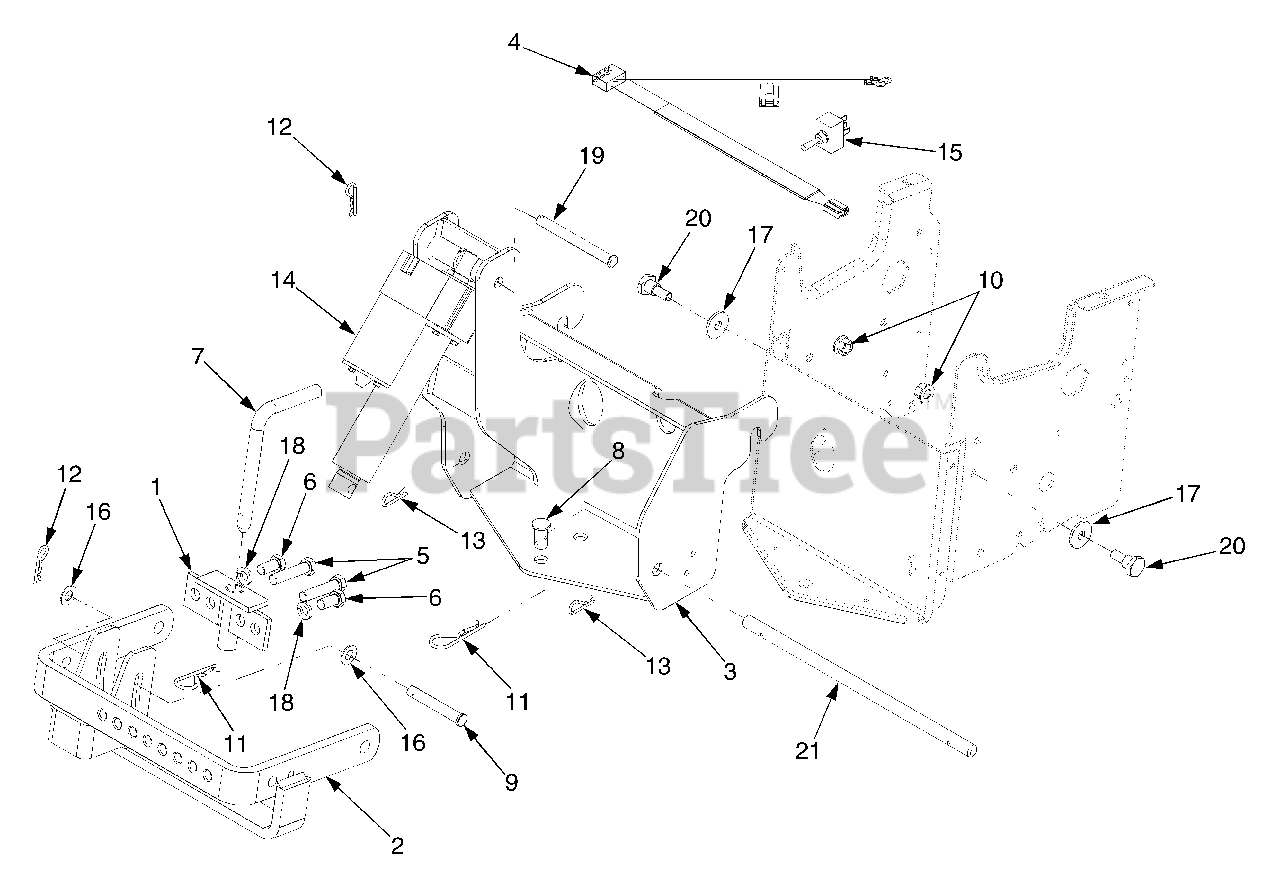

Sleeve Hitch Parts Diagram

  • Title
1

Cub Cadet 13269

Bracket, Hitch
(Superseded to 13269-0637)

Variations

Cub Cadet 13269-0637

BRACKET ASSY-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 603-04134

Bracket, Hitch Pivot

Variations

Cub Cadet 603-04134-0637

BRACKET ASSY-HITCH PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 603-0736

Bracket, Hitch Mount
(Superseded to 603-0736-0716)

Variations

Cub Cadet 603-0736-0716

HITCH ASSY-SLEEVE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 629-3012

Harness, Hitch Lift
(Superseded to 929-3012)

$

$

Not available

5

Cub Cadet 710-3104

Screw, Hex Cap, 1/2-13 x 2.25 GR5

$8.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3131

Screw, Hex Cap, 1/2-13 x 1.0 GR5

$5.49

$

In Stock, only 1 left!

0

7

Cub Cadet 711-0282

Pin, Hitch

$72.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 711-0309A

Pin, Clevis, .62 Dia

$12.99

$

In Stock, Qty 7

0

9

Cub Cadet 711-0578

Pin, Clevis

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0459

Nut, Hx Flange Lock, 7/16-20 GRB

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0117

Pin, Internal Cotter

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet 714-0147

Pin, Internal Cotter

$4.99

$

In Stock, Qty 6

0

13

Cub Cadet 714-0149B

Pin, Internal Cotter

$4.49

$

In Stock, Qty 18

0

14

Cub Cadet 717-0620

Actuator, Electric Lift
(Superseded to 917-0620)

$1244.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 725-1053

Switch, Toggle
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0272

Washer, Flat, .51 x 1.0 x .06

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0319

Washer, Flat, .45 x 1.38 x .134
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

19

Cub Cadet 738-0805

Pin, Hinge

$

$

Not available

20

Cub Cadet 738-1020

Screw, Shoulder, .625 x .5:7/16-20

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 738-3173

Rod, Hitch

$

$

Not available
