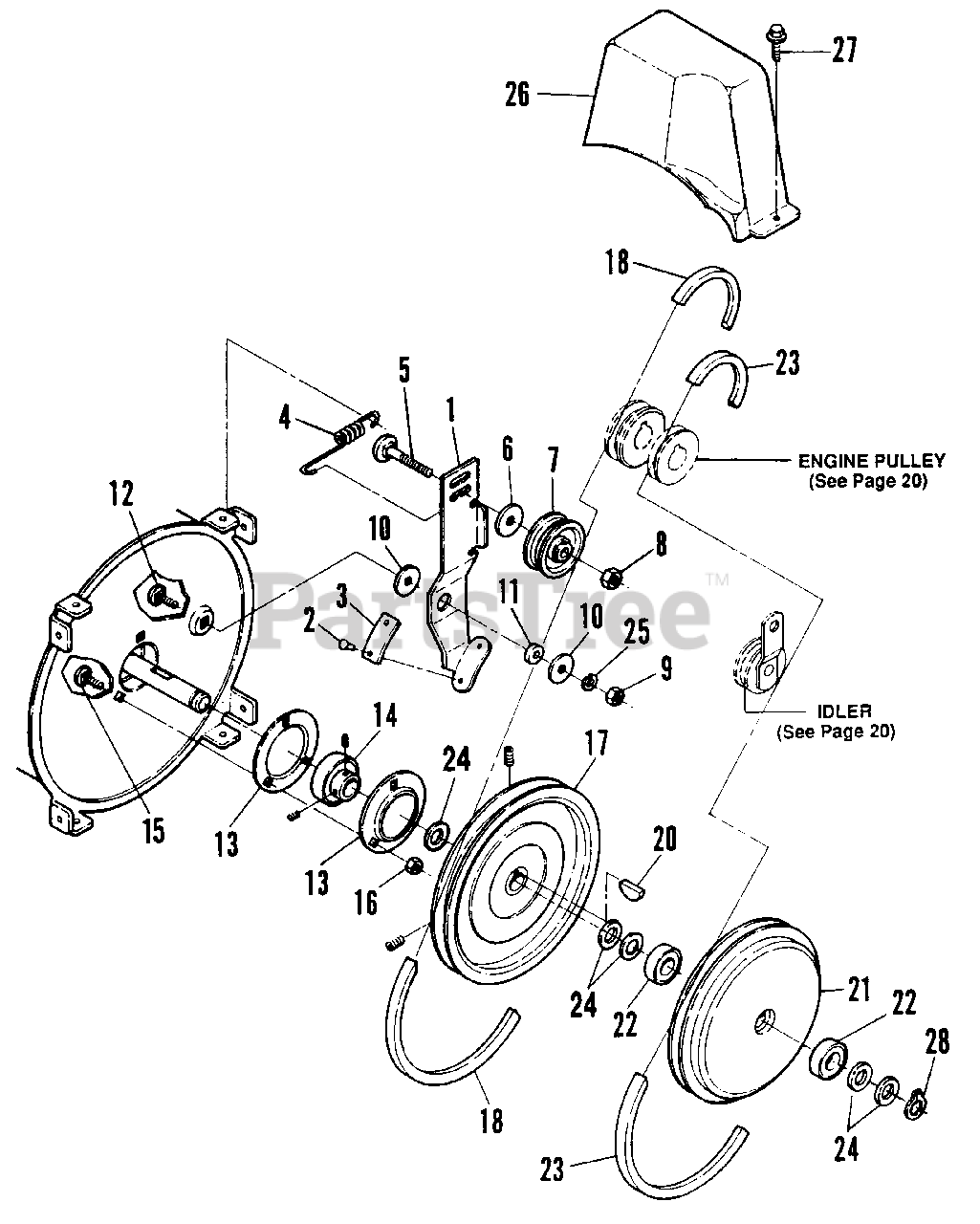

8263E (80007) - Snapper 26" Snow Thrower, 8hp Belts, Idler, Drive Plate, Sheave Parts Diagram

26" Snow Thrower, 8hp

Belts, Idler, Drive Plate, Sheave Parts Diagram

  • Title

1

Snapper 7051266

ASSEMBLY, Idler Arm

Note: (Includes Items 2 & 3)

$

$

Currently unavailable

2

Snapper 7013860

RIVET, 3/16 x .344
(Superseded to 704032)

Note: (Series 1 & 2 Only)

$4.49

$

In Stock, only 4 left!

0

3

Snapper 7013859

PAD, Brake
(Superseded to 7013859YP)

Note: (Series 1 & 2 Only)

$6.99

$

In Stock, only 1 left!

0

4

Snapper 7013919

SPRING
(Superseded to 7013919YP)

$8.49

$

In Stock, only 2 left!

0

5

Snapper 7090791

BOLT, 3/8-16 x 1-1/2" Carriage
(Superseded to 7091945YP)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7013850

PULLEY, Idler
(Superseded to 7013850YP)

$20.99

$

In Stock, only 4 left!

0

8

Snapper 7090499

NUT, 3/8-16 Hex
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196 (Series 1 & 2)

$3.49

$

In Stock, Qty 20+

0

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 91069 (Series 3 & 4) (Used on Series 3 & 4 Models; black zinc coated.)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848 (Series 1 & 2)

$5.49

$

Usually ships in 2-12 days

0

Snapper 7016314

WASHER, 5/16 x 1-1/4" Flat
(Superseded to 7016314YP)

Note: (Series 3 & 4) (Used on Series 3 & 4 Models; black zinc coated.)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7091303

BOLT, 5/16-18 x 1" Carriage
(Superseded to 703800)

Note: Was 90383 (Series 1 & 2)

$3.99

$

In Stock, Qty 7

0

Snapper 7091303

BOLT, 5/16-18 x 1" Carriage
(Superseded to 703800)

Note: Was 91072 (Series 3 & 4) (Used on Series 3 & 4 Models; black zinc coated.)

$3.99

$

In Stock, Qty 7

0

13

Snapper 7013931

HOUSING, Bearing

$

$

Not available

14

Snapper 7013924

BEARING
(Superseded to 7013924YP)

Note: (Includes Set Screws)

$43.99

$

In Stock, only 1 left!

0

15

Snapper 7091508

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0

16

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585 (Series 1 & 2)

$5.49

$

In Stock, Qty 20+

0

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070 (Series 3 & 4) (Used on Series 3 & 4 Models; black zinc coated.)

$5.49

$

In Stock, Qty 20+

0

17

Snapper 7013867

SHEAVE, Blower
(Superseded to 7013867YP)

Note: (Includes Two 5/16 Set Screws)

$82.99

$

Usually ships in 2-12 days

0

18

Snapper 7013937

BELT, Blower, 38.5" 4L, 8 HP
(Superseded to 7013937YP)

Note: (Briggs Engines)

$28.99

$

In Stock, Qty 10

0

Snapper 7013939

BELT, Blower, 36.5" 4L, 5 HP
(Superseded to 7013939YP)

Note: (B&S or Tecumseh Engines)

$26.99

$

In Stock, Qty 20+

0

20

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.49

$

In Stock, Qty 5

0

21

Snapper 7051358

PLATE, Drive
(Superseded to 7051358YP)

$

$

Not available

22

Snapper 7014295

BEARING, Ball
(Superseded to 7014295YP)

$16.99

$

Usually ships in 2-12 days

0

23

Snapper 7013936

BELT, Traction, 37.75" 3L, 8 HP
(Superseded to 7013936YP)

Note: (Briggs Engines)

$26.99

$

In Stock, only 1 left!

0

Snapper 7029101

BELT, Traction, 35.75" 3L, 5 HP
(Superseded to 7029101YP)

Note: Was 13938 (B&S or Tecumseh Engines)

$24.99

$

In Stock, Qty 6

0

24

Snapper 7014296

WASHER, 1/2 Shim
(Superseded to 7014296YP)

Note: (Vary to space item 21 3/8" to 7/16" from axle shaft for traction)

$4.49

$

In Stock, only 4 left!

0

25

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7019689

COVER, Belt Guard
(Superseded to 7017734YP)

$53.99

$

In Stock, only 3 left!

0

27

Snapper 7091084

SCREW, 1/4-20 x 3/8" Self-Tapping
(Superseded to 703583)

Note: Was 90302 (Series 1 & 2)

$4.99

$

In Stock, Qty 20+

0

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: (Series 3 & 4) (Used on Series 3 & 4 Models; black zinc coated.)

$3.99

$

In Stock, only 3 left!

0

28

Snapper 7010776

RETAINING RING, 1/2
(Superseded to 7010776YP)

$3.99

$

In Stock, only 2 left!

0

Snapper 7027630

Impeller Shaft
(Superseded to 7027630YP)

Note: (Refer to Item 11, "Gearbox, Shafts" group)

$98.99

$

In Stock, only 1 left!

0
