826 T (313-648F100) - Cub Cadet 26" Snow Thrower Engine (1993) Tec 8 HP Engine Assembly Parts Diagram

26" Snow Thrower Engine

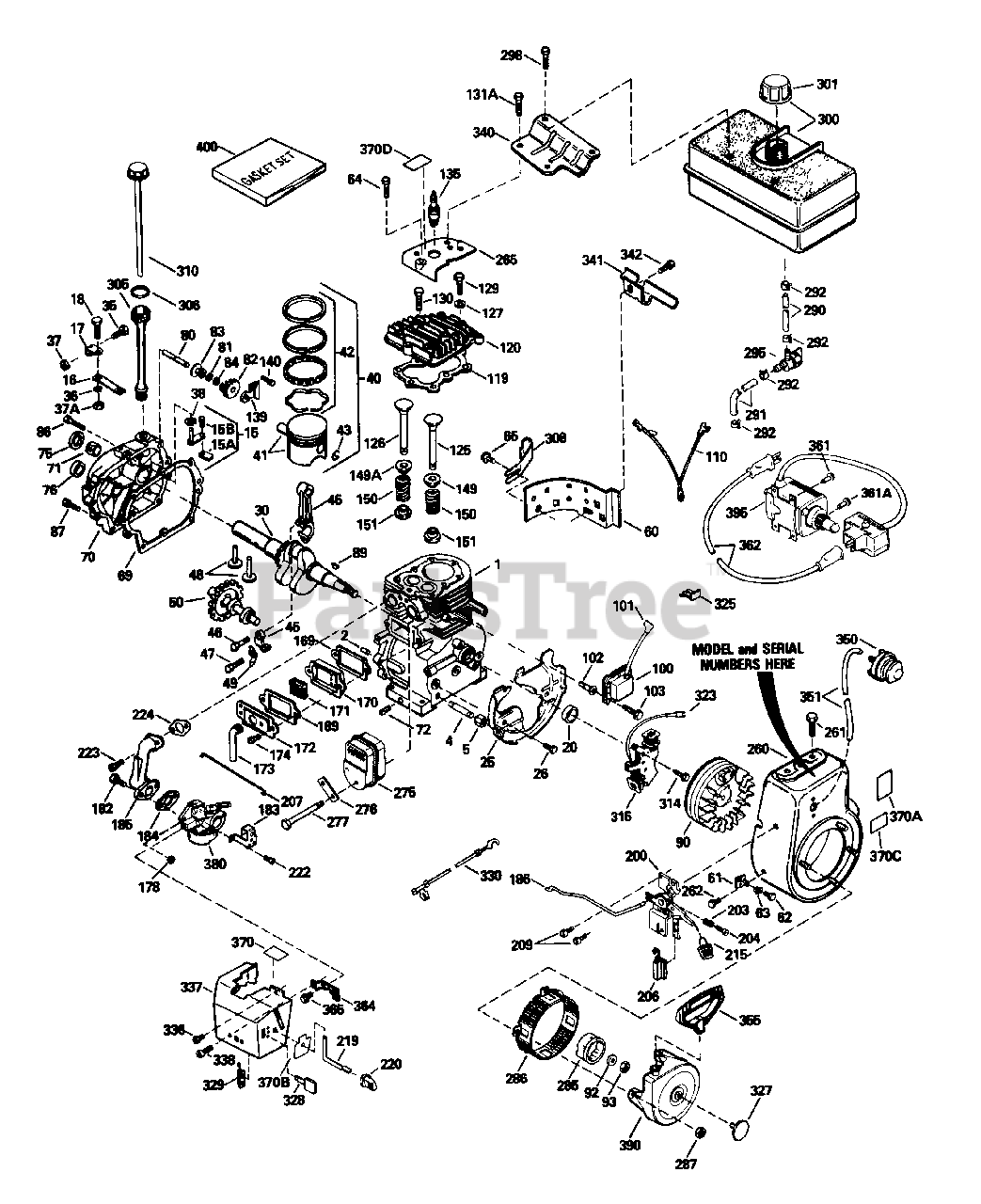

Tec 8 HP Engine Assembly Parts Diagram

  • Title

1

Cub Cadet TC-35385

Cylinder

Note: (Incl. Nos. 2, 20 & 72)

$311.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-27652

Pin, Dowel

$2.49

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-34171

Nipple, Pipe, 5-1/2"

$

$

Currently unavailable

5

Cub Cadet TC-30969

Cap, Oil Drain

$5.49

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-30699C

Rod Ass'y., Governor

Note: (Incl. Nos. 15A & 15B)

$17.99

$

In Stock, only 1 left!

0

15A

Cub Cadet TC-30700

Yoke, Governor

$1.99

$

In Stock, only 2 left!

0

15B

Cub Cadet TC-650494

Screw, Fil. Hd. Sems, 6-40 x 5/16

$1.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-33454

Lever, Governor
(Superseded to TC-33454A)

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-29916

Clamp, Governor Lever

$1.99

$

In Stock, only 2 left!

0

18

Cub Cadet TC-650548

Screw, Hex Washer Hd., 8-32 x 5/16

$

$

Not available

20

Cub Cadet TC-35319

Seal, Oil

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet TC-35326

Baffle, Blower Housing
(Superseded to TC-37853)

$11.99

$

In Stock, only 1 left!

0

26

Cub Cadet TC-650561

Screw, Hex Washer Hd. Durlok, 1/4-20 x 5/8

$1.99

$

In Stock, only 2 left!

0

30

Cub Cadet TC-35980A

Crankshaft

$

$

Not available

35

Cub Cadet TC-29826

Screw, Hex Washer Hd., 10-32 x 3/4

$1.99

$

In Stock, only 4 left!

0

36

Cub Cadet TC-29918

Washer, E.T. Lock No. 8

$1.99

$

In Stock, Qty 5

0

37

Cub Cadet TC-29216

Nut & Lock Washer, 10-32 "Keps"

$1.99

$

In Stock, only 3 left!

0

37A

Cub Cadet TC-30322

Lock Nut, Hex "Keps," 8-32

$1.99

$

Usually ships in 3-12 days

0

38

Cub Cadet TC-29642

Ring, Retaining

$100.99

$

In Stock, only 2 left!

0

40

Cub Cadet TC-34552

Piston, Pin & Ring Ass'y. (Std.)
(Superseded to TC-40049)

Note: (Incl. Nos. 41, 42 & 43)

$

$

Not available

40

Cub Cadet TC-34553

Piston, Pin & Ring Ass'y. (.010 Oversize)

Note: (Incl. Nos. 41, 42 & 43)

$

$

Not available

40

Cub Cadet TC-34554

Piston, Pin & Ring Ass'y. (.020 Oversize)

Note: (Incl. Nos. 41, 42 & 43)

$

$

Not available

41

Cub Cadet TC-34329A

Piston & Pin Ass'y. (Std.)
(Superseded to TC-40049)

Note: (Incl. No. 43)

$

$

Not available

41

Cub Cadet TC-34330A

Piston & Pin Ass'y. (.010 Oversize)

Note: (Incl. No. 43)

$

$

Not available

41

Cub Cadet TC-34331A

Piston & Pin Ass'y. (.020 Oversize)

Note: (Incl. No. 43)

$

$

Not available

42

Cub Cadet TC-34332

Ring Set, Piston (Std.)

$

$

Not available

42

Cub Cadet TC-34333

Ring Set, Piston (.010 Oversize)

$

$

Not available

42

Cub Cadet TC-34334

Ring Set, Piston (.020 Oversize)

$38.99

$

In Stock, only 1 left!

0

43

Cub Cadet TC-27888

Ring, Piston Pin Retaining

$1.99

$

Usually ships in 3-12 days

0

45

Cub Cadet TC-35373A

Rod Ass'y., Connecting
(Superseded to TC-36897A)

Note: (Incl. Nos. 46, 47 & 49)

$48.99

$

In Stock, only 1 left!

0

46

Cub Cadet TC-650908

Bolt, Connecting Rod
(Superseded to TC-651063)

$1.99

$

In Stock, only 3 left!

0

47

Cub Cadet TC-650882

Bolt, Connecting Rod

$1.99

$

In Stock, only 1 left!

0

48

Cub Cadet TC-34034

Lifter, Valve
(Superseded to TC-34034A)

$10.99

$

In Stock, only 3 left!

0

49

Cub Cadet TC-35374

Dipper, Oil

$1.99

$

In Stock, only 4 left!

0

50

Cub Cadet TC-35981

Camshaft (Mechanical Compression Release)

$167.99

$

Usually ships in 3-12 days

0

60

Cub Cadet TC-33273A

Extension, Blower Housing

$7.49

$

Usually ships in 3-12 days

0

61

Cub Cadet TC-34126

Bracket, Grommet Mounting

$1.99

$

Usually ships in 3-12 days

0

62

Cub Cadet TC-650760

Screw, Pan Hd. Taptite, 8-32 x 3/8

$1.99

$

In Stock, only 3 left!

0

63

Cub Cadet TC-28545

Grommet, Plastic

$1.99

$

In Stock, Qty 5

0

64

Cub Cadet TC-650802

Screw, Hex Washer Hd. Taptite, 1/4-20 x 5/8

$1.99

$

In Stock, Qty 5

0

65

Cub Cadet TC-650128

Screw, Hex Hd. Sems, 10-24 x 1/2

$5.49

$

In Stock, only 2 left!

0

69

Cub Cadet TC-35262

Gasket, Cylinder Cover
(Superseded to TC-37342)

$11.99

$

In Stock, only 1 left!

0

70

Cub Cadet TC-35445

Cover Ass'y., Cylinder

Note: (Incl. Nos. 71, 75 & 80)

$

$

Not available

71

Cub Cadet TC-35377

Bushing, Cylinder Cover

$11.99

$

In Stock, only 3 left!

0

72

Cub Cadet TC-27642

Plug, Pipe

$1.99

$

In Stock, only 3 left!

0

75

Cub Cadet TC-35319

Seal, Oil

$4.99

$

In Stock, only 2 left!

0

76

Cub Cadet TC-28926

Seal, Oil (Camshaft)

$9.49

$

In Stock, only 1 left!

0

80

Cub Cadet TC-31845

Shaft, Governor

$

$

Not available

81

Cub Cadet TC-30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

82

Cub Cadet TC-35378

Gear, Governor

Note: (Incl. No. 81 )

$3.99

$

Usually ships in 3-12 days

0

83

Cub Cadet TC-30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

84

Cub Cadet TC-29193

Ring, Retaining

$1.99

$

In Stock, only 4 left!

0

86

Cub Cadet TC-650833

Screw, Hex Washer Hd. Powerlok, 1/4-20 x 1-3/16

$1.99

$

Usually ships in 3-12 days

0

87

Cub Cadet TC-650832

Screw, Hex Washer Hd. Powerlok, 1/4-20 x 1-11/16

$

$

Not available

89

Cub Cadet TC-32589

Key, Flywheel

$1.49

$

In Stock, Qty 6

0

90

Cub Cadet TC-611093

Flywheel (w/Ring Gear)

$

$

Not available

92

Cub Cadet TC-650880

Washer, Lock

$1.99

$

In Stock, only 3 left!

0

93

Cub Cadet TC-650881

Nut, Flywheel

$1.99

$

Usually ships in 3-12 days

0

100

Cub Cadet TC-35135

Solid State Ass'y.
(Superseded to TC-35135B)

$62.99

$

In Stock, only 2 left!

0

101

Cub Cadet TC-610118

Cover, Spark Plug

$6.49

$

In Stock, only 4 left!

0

102

Cub Cadet TC-650872

Stud, Solid State Mounting

$

$

Not available

103

Cub Cadet TC-650814

Screw, T-15 Torx Hex Washer Hd. Sems, 10-24 x 1
(Superseded to TC-651007)

$1.99

$

In Stock, only 4 left!

0

110

Cub Cadet TC-35253

Wire, Ground

$

$

Currently unavailable

119

Cub Cadet TC-34041A

Gasket, Cylinder Head

$5.49

$

Usually ships in 3-12 days

0

120

Cub Cadet TC-34030A

Head, Cylinder

$

$

Not available

125

Cub Cadet TC-27878A

Valve, Exhaust (Std.)

Note: (Incl. No. 151)

$23.99

$

In Stock, only 1 left!

0

125

Cub Cadet TC-27880A

Valve, Exhaust (1/32" Oversize)

Note: (Incl. No. 151)

$

$

Not available

126

Cub Cadet TC-34035

Valve, Intake (Std.)

Note: (Incl. No. 151)

$15.99

$

In Stock, only 1 left!

0

126

Cub Cadet TC-34036

Valve, Intake (1/32" Oversize)

Note: (Incl. No. 151)

$

$

Not available

127

Cub Cadet TC-650691

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

129

Cub Cadet TC-650727

Screw, Special Hex Hd. Tapped, 5/16-18 x 1-3/4

$3.99

$

In Stock, only 1 left!

0

130

Cub Cadet TC-6021A

Screw, Hex Flange Hd., 5/16-18 x 1-1/2

$1.99

$

In Stock, only 3 left!

0

131A

Cub Cadet TC-650713

Screw, Hex Hd., 5/16-18 x 5/8
(Superseded to TC-651055)

$

$

Not available

135

Cub Cadet 759-3339

Spark Plug

$3.49

$

In Stock, Qty 19

0

139

Cub Cadet TC-33369

Bracket, Governor Gear

$8.49

$

In Stock, only 1 left!

0

140

Cub Cadet TC-650836

Screw, Hex Washer Hd. Thread Forming, 10-24 x 1/2

$

$

Not available

149

Cub Cadet TC-27882

Cap, Upper Valve Spring

$1.99

$

In Stock, only 4 left!

0

149A

Cub Cadet TC-35862

Seal Ass'y., Intake Valve

$9.49

$

In Stock, only 1 left!

0

150

Cub Cadet TC-27881

Spring, Valve

$3.99

$

In Stock, only 2 left!

0

151

Cub Cadet TC-32581

Cap, Lower Valve Spring

$6.49

$

In Stock, Qty 10

0

169

Cub Cadet TC-27896A

Gasket, Breather

$1.49

$

In Stock, Qty 16

0

170

Cub Cadet TC-28423

Body, Breather

$13.99

$

In Stock, only 1 left!

0

171

Cub Cadet TC-28424

Element, Breather

$3.99

$

In Stock, Qty 7

0

172

Cub Cadet TC-28425

Cover, Breather

$7.49

$

In Stock, only 1 left!

0

173

Cub Cadet TC-35350

Tube, Breather

$6.49

$

In Stock, only 1 left!

0

174

Cub Cadet TC-650128

Screw, Hex Hd. Sems, 10-24 x 1/2

$5.49

$

In Stock, only 2 left!

0

178

Cub Cadet TC-29752

Nut & Lock Washer, 1/4-28

$1.99

$

In Stock, Qty 5

0

182

Cub Cadet TC-30088A

Screw, Fil. Hd. Sems, 1/4-28 x 1

$1.99

$

Usually ships in 3-12 days

0

183

Cub Cadet TC-34587

Bracket, Choke
(Superseded to TC-34587A)

$9.49

$

Usually ships in 3-12 days

0

184

Cub Cadet TC-33263

Gasket, Carburetor

$1.49

$

In Stock, Qty 20+

0

185

Cub Cadet TC-33877

Pipe, Intake

$48.99

$

Usually ships in 3-12 days

0

186

Cub Cadet TC-34667

Link, Governor

$1.99

$

Usually ships in 3-12 days

0

200

Cub Cadet TC-34677

Bracket Ass'y., Control

Note: (Incl. Nos. 19, 203, 204 & 206)

$54.99

$

In Stock, only 1 left!

0

203

Cub Cadet TC-31342

Spring, Compression

$5.99

$

In Stock, only 1 left!

0

204

Cub Cadet TC-650549

Screw, Fil. Hd., 5-40 x 7/16
(Superseded to TC-651029)

$1.99

$

In Stock, only 2 left!

0

206

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, only 1 left!

0

207

Cub Cadet TC-33878

Link, Governor-To-Throttle

$6.99

$

In Stock, only 1 left!

0

209

Cub Cadet TC-650821

Screw, Hex Washer Hd. Thread Cutting, 10-32 x 1/2

$1.99

$

Usually ships in 3-12 days

0

215

Cub Cadet TC-35440

Knob, Control

$3.99

$

In Stock, only 1 left!

0

219

Cub Cadet TC-34586

Rod, Choke

$5.49

$

Usually ships in 3-12 days

0

220

Cub Cadet TC-35438

Knob, Choke

$3.99

$

In Stock, only 1 left!

0

222

Cub Cadet TC-28820

Screw, Fil. Hd. Sems, 10-32 x 1/2
(Superseded to TC-651081)

$4.49

$

Usually ships in 3-12 days

0

223

Cub Cadet TC-650378

Screw, T-30 Torx Fil. Hd. Sems, 5/16-18 x 1-1/8

$1.99

$

In Stock, only 3 left!

0

224

Cub Cadet TC-27915A

Gasket, Intake Pipe

$5.99

$

In Stock, Qty 20+

0

260

Cub Cadet TC-35447A

Housing, Blower
(Superseded to TC-37961)

$

$

Not available

261

Cub Cadet TC-650788

Screw, Hex Hd. Spinlock Thread Forming, 5/16-18 x 3/4

$1.99

$

In Stock, only 1 left!

0

262

Cub Cadet TC-29747B

Screw, Hex Hd. Sems, 5/16-24 x 21/32

$1.99

$

In Stock, Qty 9

0

265

Cub Cadet TC-33272B

Cover, Cylinder Head
(Superseded to TC-33272D)

$7.49

$

Usually ships in 3-12 days

0

275

Cub Cadet TC-35056

Muffler

$62.99

$

In Stock, only 2 left!

0

276

Cub Cadet TC-31588

Plate, Lock

$4.99

$

In Stock, Qty 20+

0

277

Cub Cadet TC-792093

Screw, Flanged Hex Hd., 5/16-18 x 4-3/16

$6.49

$

Usually ships in 3-12 days

0

285

Cub Cadet TC-35985

Hub, Starter
(Superseded to TC-35985C)

$13.99

$

In Stock, only 1 left!

0

286

Cub Cadet TC-35446

Screen, Starter

$7.49

$

In Stock, only 1 left!

0

287

Cub Cadet TC-29752

Nut & Lock Washer, 1/4-28

$1.99

$

In Stock, Qty 5

0

290

Cub Cadet TC-29774

Line, Fuel

$34.99

$

In Stock, Qty 6

0

291

Cub Cadet TC-30705

Line, Fuel

$16.99

$

In Stock, only 4 left!

0

292

Cub Cadet TC-26460

Clamp, Fuel Line

$1.49

$

In Stock, Qty 10

0

295

Cub Cadet TC-35857

Valve, Fuel Shut-Off

$13.99

$

Usually ships in 3-12 days

0

298

Cub Cadet TC-650665

Screw, Hex Washer Hd. Thread Cutting, 1/4-15 x 7/8

$1.99

$

Usually ships in 3-12 days

0

300

Cub Cadet TC-34156A

Tank, Fuel

Note: (Incl. Nos. 292 & 301)

$54.99

$

Usually ships in 3-12 days

0

301

Cub Cadet TC-35355

Cap, Fuel Tank
(Superseded to TC-37845)

$8.99

$

In Stock, Qty 11

0

305

Cub Cadet TC-35554

Tube, Oil Fill

$19.99

$

In Stock, only 1 left!

0

306

Cub Cadet TC-35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

308

Cub Cadet TC-35540

Clip, Fill Tube

$1.99

$

In Stock, only 2 left!

0

310

Cub Cadet TC-36205

Dipstick, Oil

$10.99

$

Usually ships in 3-12 days

0

314

Cub Cadet TC-650873

Screw, Hex Hd. Sems, 1/4-20 x 3/4

$1.99

$

Usually ships in 3-12 days

0

315

Cub Cadet TC-611111

Coil Ass'y., Alternator (18 Watt)

$68.99

$

Usually ships in 3-12 days

0

323

Cub Cadet TC-611118

Terminal

$1.99

$

Usually ships in 3-12 days

0

325

Cub Cadet TC-29443

Clip, Wire

$1.99

$

In Stock, Qty 5

0

327

Cub Cadet TC-35392

Plug, Starter

$1.99

$

In Stock, only 1 left!

0

328

Cub Cadet 725-0954

Ignition, Key
(Superseded to TC-35062)

$3.99

$

In Stock, only 2 left!

0

329

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, only 1 left!

0

330

Cub Cadet TC-35305

Wire, Ground

$

$

Not available

336

Cub Cadet TC-650765

Screw, Hex Washer Hd. Self-Drilling, 10-32 x 1/2

$1.49

$

In Stock, only 1 left!

0

337

Cub Cadet TC-35057A

Cover, Carburetor
(Superseded to TC-36547A)

$70.99

$

In Stock, only 1 left!

0

338

Cub Cadet TC-28942

Screw, Hex Washer Hd. Sems, 10-32 x 3/8

$1.49

$

In Stock, only 1 left!

0

340

Cub Cadet TC-34155

Bracket, Fuel Tank

$

$

Not available

341

Cub Cadet TC-34154

Plate, Fuel Tank Mounting

$

$

Not available

342

Cub Cadet TC-650561

Screw, Hex Washer Hd. Durlok, 1/4-20 x 5/8

$1.99

$

In Stock, only 2 left!

0

350

Cub Cadet TC-570682

Primer Ass'y.
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 7

0

351

Cub Cadet TC-32180C

Line, Primer

$6.99

$

In Stock, Qty 9

0

355

Cub Cadet TC-590574

Starter Handle, Mitten Grip

$5.49

$

In Stock, only 1 left!

0

361

Cub Cadet TC-650820

Screw, Hex Hd. Shoulder, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 15

0

361A

Cub Cadet TC-30063

Screw, Torx T-30 Hex Washer Hd. Sems, 1/4-20 x 1/2

$1.99

$

In Stock, Qty 20+

0

362

Cub Cadet TC-32450B

Cord, Extension
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

364

Cub Cadet TC-33377

Bracket, Carburetor Cover Mounting
(Superseded to TC-37659)

$

$

Not available

365

Cub Cadet TC-650767

Screw, Hex Washer Hd. Sems, Taptite, 8-32 x 27/64

$1.49

$

Usually ships in 3-12 days

0

370

Cub Cadet TC-34414

Decal, Warning (Bilingual)

$

$

Not available

370A

Cub Cadet TC-34686

Decal, Name

$

$

Not available

370B

Cub Cadet TC-35077

Decal, Control

$

$

Not available

370C

Cub Cadet TC-34417

Decal, Primer

$

$

Not available

370D

Cub Cadet TC-34416

Decal, Instruction

$

$

Not available

380

Cub Cadet TC-632334A

Carburetor

Note: Incl. No. 184)

$136.99

$

Usually ships in 3-12 days

0

390

Cub Cadet TC-590672

Starter, Rewind

$

$

Not available

395

Motor Kit, Electric Starter (120 Volt)

$

$

Not available

400

Cub Cadet TC-33279F

Gasket Kit

$19.99

$

Usually ships in 3-12 days

0
