826 T (313-648F100) - Cub Cadet 26" Snow Thrower (1993) Snow Thrower - Part III Parts Diagram

26" Snow Thrower

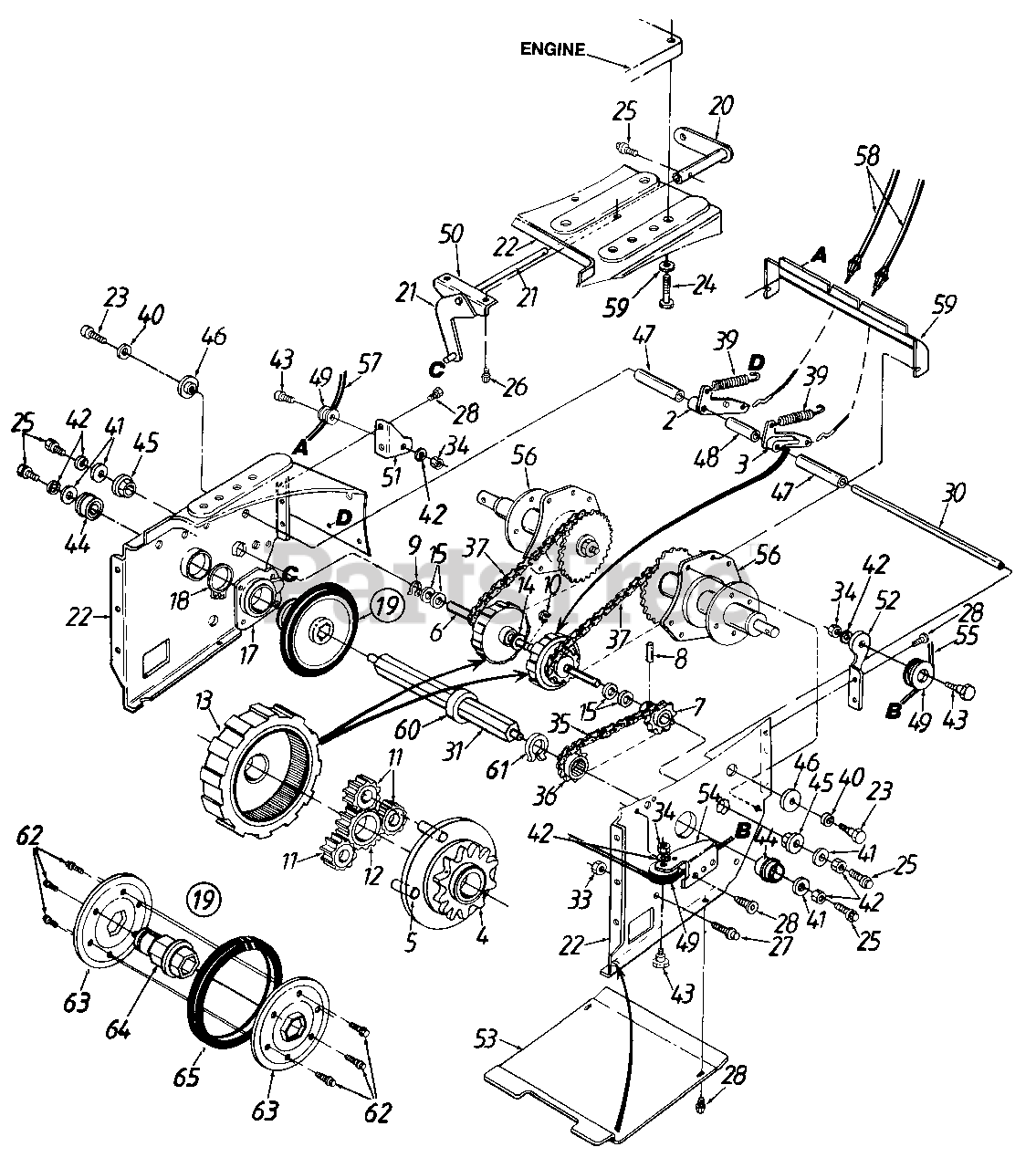

Snow Thrower - Part III Parts Diagram

  • Title

2

Cub Cadet 618-0043

R.H. Dog Ass'y.

$23.99

$

In Stock, only 1 left!

0

3

Cub Cadet 618-0044

L.H. Dog Ass'y.

$24.99

$

In Stock, only 1 left!

0

4

Cub Cadet 718-0188

Carrier
(Superseded to 918-0576A)

$224.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 741-0542

5/16" Dowel Pin

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 711-0912

Drive Shaft

$131.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 713-0411

12 Tooth Sprocket

$

$

Not available

8

Cub Cadet 715-0247

Spring Pin 3/16" Dia. x 1" Lg.
(Superseded to 915-0247)

$

$

Not available

9

Cub Cadet 716-0114

Snap Ring .56" Dia.
(Superseded to 916-0114)

$6.99

$

In Stock, only 3 left!

0

10

Cub Cadet 716-0115

Snap Ring .625" Shaft
(Superseded to 916-0115)

$

$

Not available

11

Cub Cadet 717-1209

12 Tooth Gear
(Superseded to 717-1209A)

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 717-1210

18 Tooth Gear
(Superseded to 717-1210A)

$8.99

$

In Stock, only 3 left!

0

13

Cub Cadet 717-1211

Ring Gear
(Superseded to 717-1211B)

$

$

Not available

14

Cub Cadet 736-0336

Fl-Wash. 5/8" I.D. x 1" O.D.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

15

Cub Cadet 736-0502

Fl-Wash. .57" I.D. x 1.12" O.D.
(Superseded to 936-0502)

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 618-0063

Friction Wheel Brg. Ass'y.

$92.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 716-0185

Retaining Ring 1.375" Dia. Shaft

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 684-0042

Friction Wheel Ass'y.
(Superseded to 984-0042C)

$138.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 684-0008

Shift Arm Ass'y.
(Superseded to 684-0008A-0637)

Variations

Cub Cadet 684-0008-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0008-0638

Shift Arm Assembly - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 684-0014

Shift Rod Ass'y.
(Superseded to 684-0014B-0637)

$47.99

$

In Stock, only 1 left!

0

22

Cub Cadet 684-0031

Frame Ass'y.
(Superseded to 984-0031)

Variations

Cub Cadet 684-0031-0483

USE 753-06327 KIT-REPLACEMENT - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0031-0499

USE 753-06327 KIT-REPLACEMENT - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 684-0031-0637

USE 753-06327 KIT-REPLACEMENT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 684-0031-0650

USE 753-06327 KIT-REPLACEMENT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0031-0662

USE 753-06327 KIT-REPLACEMENT - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0031-0665

USE 753-06327 KIT-REPLACEMENT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0031-0721

USE 753-06327 KIT-REPLACEMENT - SEARS RED (0721)

$

$

Not available

$122.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0502

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

25

Cub Cadet 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 13

0

27

Cub Cadet 710-0788

Hex Wash. TT-Tap Scr. 1/4-20 x 1" Lg.

$7.49

$

In Stock, only 4 left!

0

28

Cub Cadet 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

30

Cub Cadet 711-0911

Actuator Shaft

$

$

Not available

31

Cub Cadet 711-0944

Drive Shaft

$

$

Not available

33

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 713-0267

#420 Chain-1/2 Pitch x 30 Links (Endless)

$

$

Not available

36

Cub Cadet 713-0415

11 Tooth Sprocket

$

$

Not available

37

Cub Cadet 713-0437

#420 Chain-32 Links (Endless)

$37.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 732-0209

Extension Spring 2.03" Lg.
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

40

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 6

0

42

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

43

Cub Cadet 738-0870

Shld. Bolt 5/16" Dia. x .35" Lg.

$

$

Not available

44

Cub Cadet 741-0563

Ball Brg. w/Snap Ring
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

45

Cub Cadet 741-0597

Hex Flange Bearing
(Superseded to 941-0597)

$12.99

$

In Stock, Qty 12

0

46

Cub Cadet 748-0234

Shld. Spacer .5" Dia. x .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 750-0903

Split Shld. Spacer 2.69" Lg.
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 750-0904

Split Shld. Spacer 1.77" Lg.

$

$

Not available

49

Cub Cadet 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

50

Cub Cadet 784-5590

Shift Brkt. Frame

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 784-5644

Drive Cable Roller Brkt.

Variations

Cub Cadet 784-5644-0637

BRACKET-DRIVE CABLPOWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

52

Cub Cadet 784-5646

Auger Cable Guide Brkt.

Variations

Cub Cadet 784-5646-0637

BRACKET-AUGER CABLPOWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

53

Cub Cadet 784-5648

Frame Cover
(Superseded to 784-5648A-0637)

Variations

Cub Cadet 784-5648-0483

Track Frame Cover - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5648-0638

Track Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5648-0662

Track Frame Cover - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5648-0687

USE 784-5648A-0687 COVER-FRAM - PINE GREEN (0687)

$

$

Not available

Cub Cadet 784-5648-0498

Track Frame Cover - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5648-0637

Track Frame Cover - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5648-0650

Track Frame Cover - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5648-0665

Track Frame Cover - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-5648-0689

Track Frame Cover - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5648-0716

Track Frame Cover - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5648-0721

Track Frame Cover - SEARS RED (0721)

$

$

Not available

$

$

54

Cub Cadet 784-5658

Front Support Brkt. Guide
(Superseded to 784-5658-0637)

Variations

Cub Cadet 784-5658-0637

Support Bracket, FR - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5658-0638

Support Bracket, FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

55

Cub Cadet 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

56

Cub Cadet 683-0023

Track Hub Ass'y.

$

$

Not available

57

Cub Cadet 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

58

Cub Cadet 746-0900

Track Steer Cable w/Trigger
(Superseded to 753-0707)

$74.99

$

In Stock, Qty 5

0

59

Cub Cadet 736-3004

Fl-Wash. .406" I.D.

$4.99

$

In Stock, Qty 7

0

60

Cub Cadet 750-0920

Spacer 1.02" I.D. x 1.25" O.D.
(Superseded to 950-0920)

$

$

Not available

61

Cub Cadet 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

62

Cub Cadet 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 784-5677

Friction Plate

$

$

Not available

64

Cub Cadet 718-0240

Friction Wheel Hub

$

$

Not available

65

Cub Cadet 735-0243

Friction Wheel Rubber
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0
